Product Description
Features
1. Precision casting body
2. Non-slip stem
3. Ball groove pressure relief hole design
4. Standard thread: NPT/BSPP/PT/BSPT
5. All kinds of materials.
6. Optional with lock handle
7. Work pressure: 1000 PSI/PN63/1000WOG/2000WOG
8. Size: 1/4" ~ 4"(DN8-DN100)
Application
Used in chemical, petroleum, papermaking, mining, electric power, liquefied gas, food, pharmaceutical, water supply, and drainage, municipal, mechanical equipment, electronics industry, urban construction, and other fields
Product detail
Original: Zhe Jiang, China
Price: According to quantity
Payment term: TT, LC
Delivery date: According to the order quantity, In stock within seven days, out of stock takes 30 days
Packing: export standard
Market: Europe/North America/South America/Middle East/ Africa/Asia
Warranty: 1 year
MOQ: 5000USD/ORDER
Sales Terms: FOB TO NINGBO OR SHANGHAI
Product standards
1. Design standard: ASME B16.34
2. Thread Standard: ANSI B1.20.1, BS 21.2799, ISO 228, DIN 259/2999
3. Detection standard: API 598

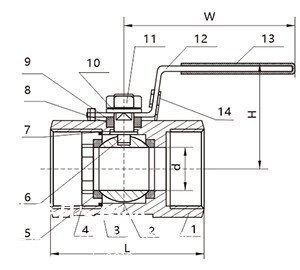

Technical parameters
Size | Φd | L | H | W |
1/4” | 5 | 40 | 30 | 75 |
3/8” | 7 | 45 | 30 | 90 |
1/2” | 9 | 56 | 41 | 96 |
3/4” | 12 | 59 | 50.5 | 108 |
1” | 15 | 71 | 50.5 | 108 |
1-1/4” | 20 | 77.5 | 51 | 131 |
1-1/2” | 25 | 84 | 61 | 149 |
2” | 32 | 99 | 69 | 149 |
2-1/2” | 38 | 110 | 88 | 163 |
3” | 48 | 135.5 | 100 | 16 |
4” | 65 | 190 | 134 | 243 |
Material List
Project | Spare parts | Material | |
1 | Body | CF8M | CF8 |
2 | Sphere | 316 | 304 |
3 | Sealing ring | PTFE | |
4 | Bonnet | CF8M | CF8 |
5 | Seat | PTFE/RPTFE/RPTFE | |
6 | Stem | 316 | 304 |
7 | Thrust Gasket | PTFE | |
8 | Fillers | PTFE | |
9 | Washers | 304 | |
10 | Spring washer | 304 | |
11 | Nuts | 304 | |
12 | Handle | 304 | |
13 | Handle gloves | Plastic | |
14 | Lock device | 301 | |
