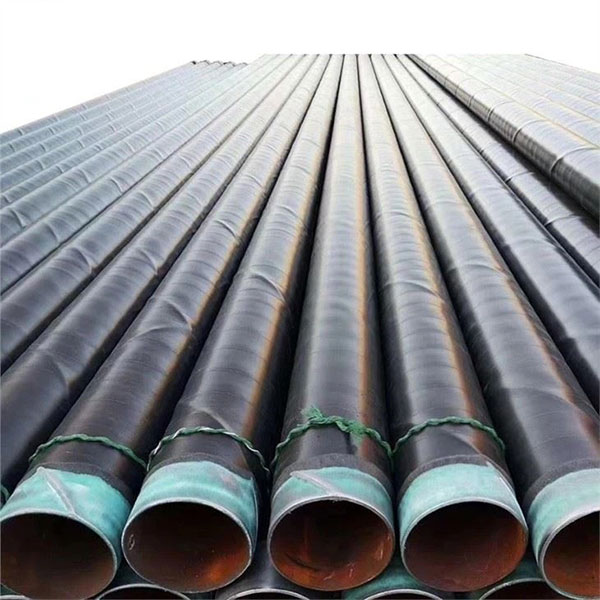

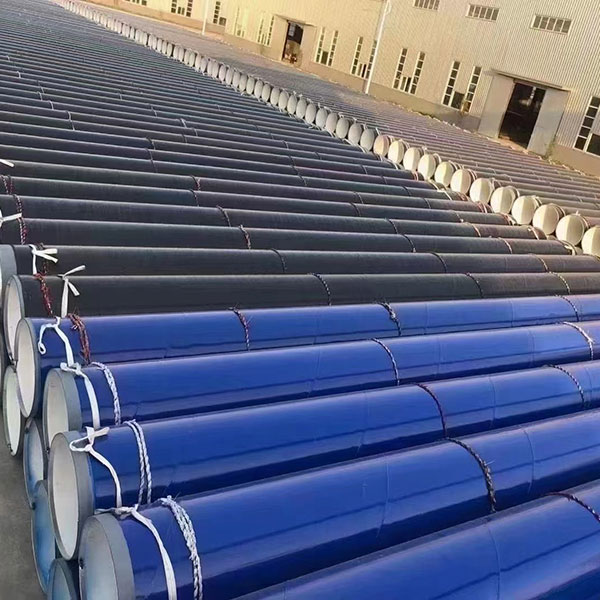

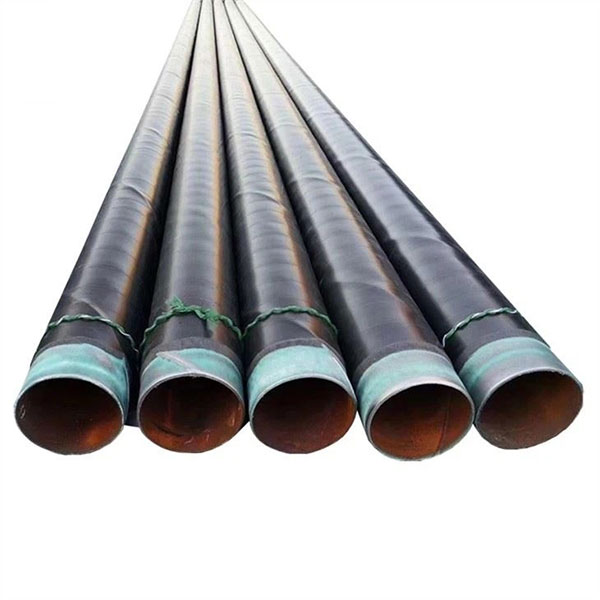

3PE Anti Corrosion Steel Pipe

Anti-Corrosion 3PE FBE
3PE/ FBE anti-corrosion and single-layer PE anticorrosive
Three-layer structure of PE pipe corrosion: the first layer of powder epoxy ( FBE > 100um ), the second layer of adhesive (AD ) 170～250um, a third layer of polyethylene or polypropylene 2.5～3.7mm. Three materials integration, and with the steel firm toform an excellent coating.
OD: 10.3mm - 610mm
Thickness: 1.7 - 40
Standard: API 5L, PSL1
Material: A, B, X42, X46, X52, X56, X60, X65, X70
Length: 5.8M, 6M, 11.8M, 12M and customer's request
Ends: Plain and beveled end
Package: By bundle, bulk, by waterproof
Application: It is used for conveying gas, water and petroleum in oil and gas industries
Surface: Black painting or anti-corrosion coating 3PE/PP

3PE and 3PP Outer Anticorrosion layer of Steel Pipe

The three layers of pipeline PE(PP) form that the first layer is epoxy powder, the second layer is PE(PP),the third layer is adhesive. The products meet the requirements of the national standard of GB/T23257-2009 of polyethylene coating for buried steel pipe. Long distance water transportation

Pressure piping components and shall be acquired manufacture license of special equipment of General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China to market and produce petroleum and gas transmission and chemical industry

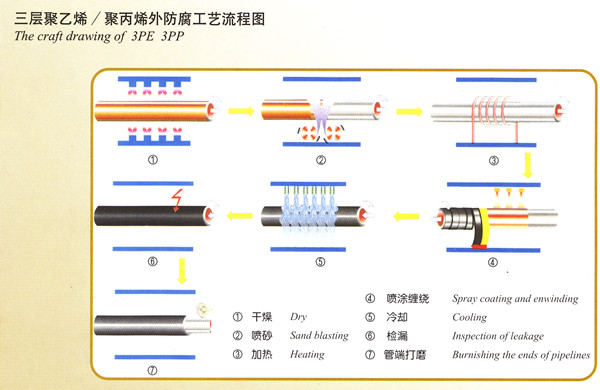

The Craft of 3PE 3PP-3PE anti-corrosion coating steel pipes

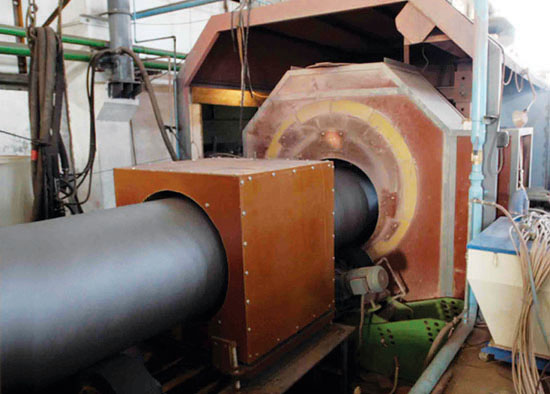

Heating with Intermediate Frequency

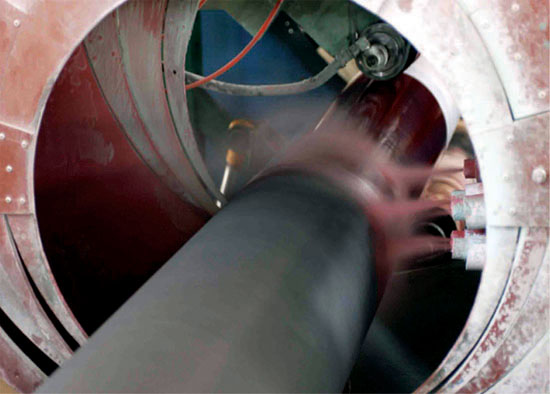

Spray FBE

Impeller Blasting

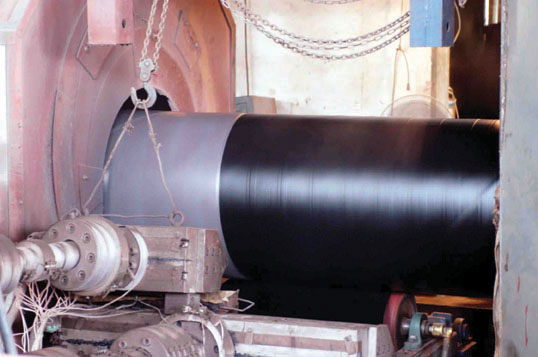

Spray 3PE

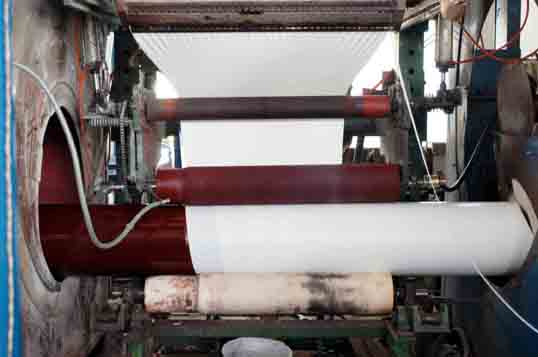

Spray 3PP

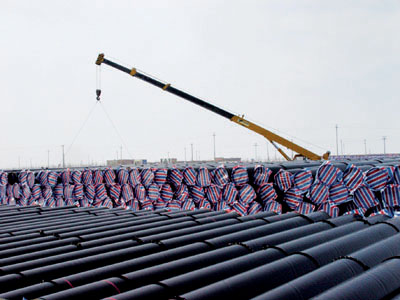

Hang and Load 3PE Coating Pipes of PDVSA-China Crude Oil Pipeline Project

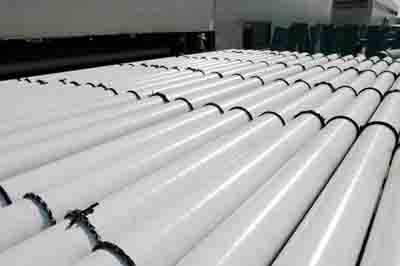

3PP Anticorrosion Steel Pipe of Sudan Project

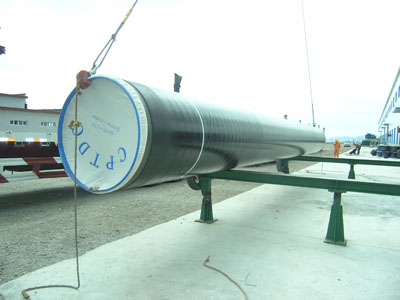

Hang and Load 3PE Anticorrosion Steel Pipe of the Central Asian pipeline
