Product Description
Feature:
Fire Safe Design, Anti Static Design, Anti Blowout Stem, Double Block Double Bleed, Double Position, Drian And Vent
Key Specification

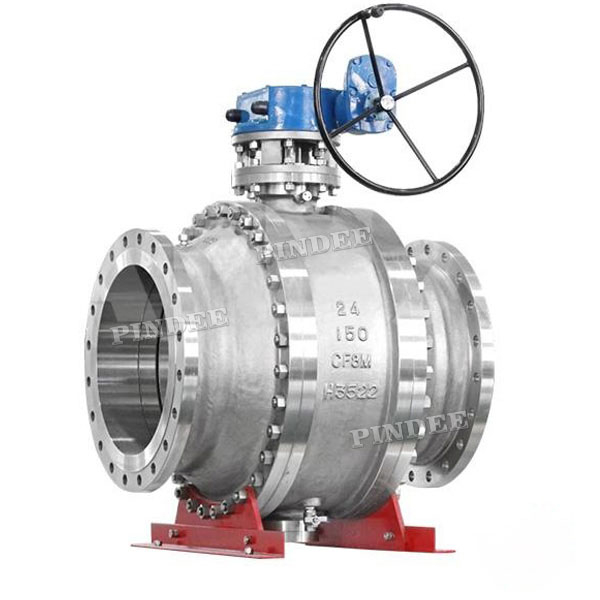

Type | Ball Valve |
Size | 24Inch |
Pressure | 150LB |
Construction | 3pcs, Full Bore, Trunnion, Side Entry, Bolt Bonnet, |
Connection | RF End |
Body/Bonnet Material | A351 CF8M |
Ball Material | A182 F304 |
Stem Material | XM-19 |
Seat Material | A182 F304+DEVLON |
Bolt/Nut | B8M/8M |
Design Standard | API6D |
Face to Face Dimension | ASME B16.10 |
End Connection | ASMEB 16.5 |
Fire Safe Design | API607 |
Inspection & Test Std. | API598 |
Temperature Range | -29℃~+538℃ |
Medium | Oil, Water, Gas |

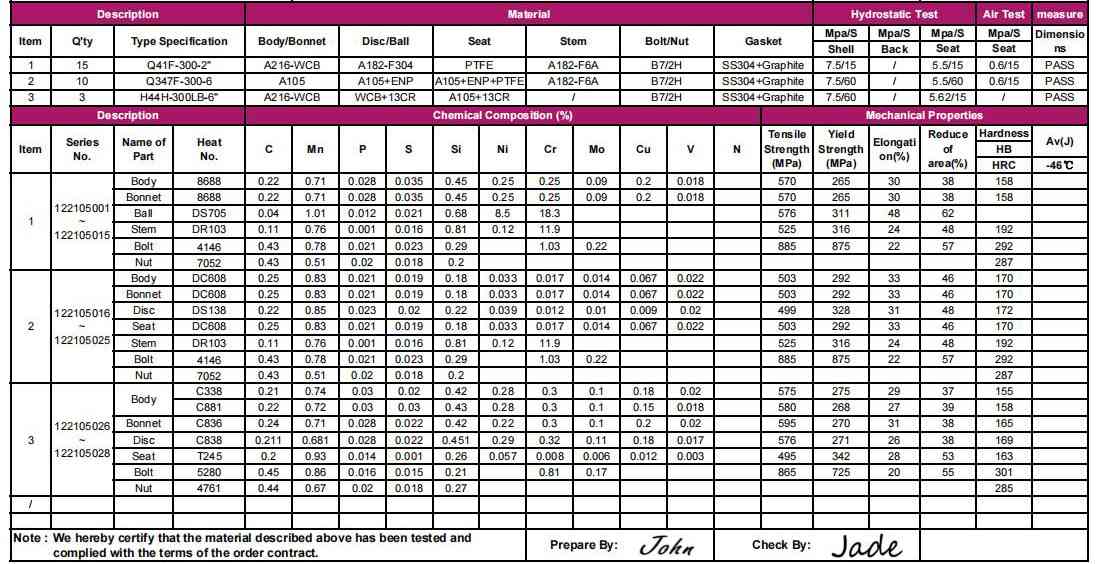

Chemical Composition
Pindee Certificates
