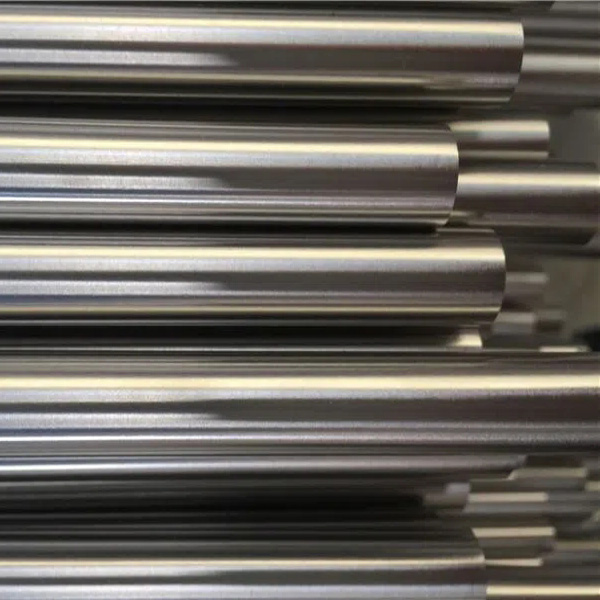

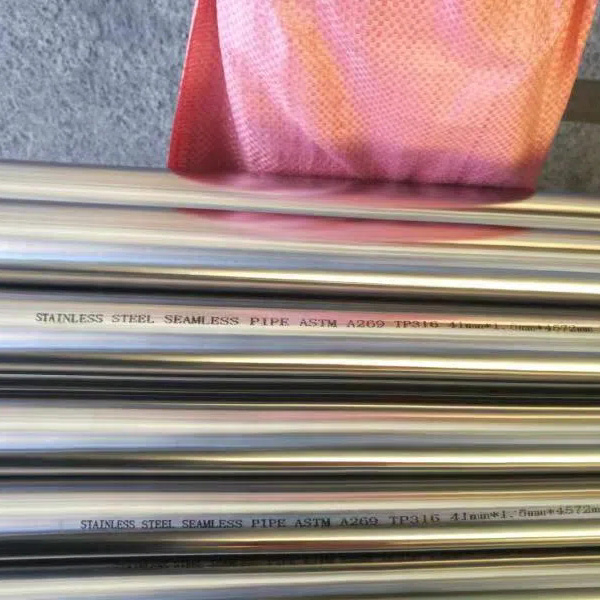

ASTM A269 Stainless Steel Tube

Size: 1/8" OD to 6" OD
Length: Up to 6 meters, custom cut lengths
Type: Seamless and Welded Austenitic Stainless Steel Tubing for General Service

Finish: 2B Mill Finish, No.4 finish, 400 Grit Finish, 550 Grit Finish, 600 Grit Finish
Grades: SS304, SS201, SS304L, SS316L, SS202, SS321H, SS347
Delivery Condition: AP(Annealed and Pickled), MP(Mechanical Polish), BA(Bright Annealed), EP(Electro Polished)
Products: ASTM A269 304 Stainless Steel Seamless Tubing, SS304L Seamless Tubes, ASTM A269 Type 316L Tubing, ASTM A269 304L Welded Tubing, ASTM A269 316L Welded Polished Tubes, ASTM A269 304 Stainless Square Tubing

Shapes: Round Pipes, Square Pipes, Rectangular Pipes, Special Shapes Pipes

Availability:

Quantity:



Inquire

Product Description

Product Description

The ASTM A269 tubing refers to series of seamless or welded austenitic stainless steel tubing for general corrosion-resisting and low- or high-temperature service. The tubing or tube is generally furnished with round cross section in either straight-cut length or coil. Among all austenitic stainless steels, TP304, TP304L, TP316 and TP316L are the most widely used grades and are often found available in stock. ASTM A269 is a standard for seamless and welded austenitic. Such tubes are usually annealed and pickled. If the tubes are welded, the inside welding line is often not removed.

Outside	inch	1/2”	5/8”	3/4”	7/8”	1”	11/4"	-
Diameter/ Thickness	inch	1/2”	5/8”	3/4”	7/8”	1”	11/4"	-
mm	mm/ gauge	12.7	15.9	19	22.2	25.4	31.8	35
1.2	-					*	*	*
1.24	18					*	*	*
1.5	-					*	*	*
1.65	16					*	*	*
2	-					*	*	*
2.11	14					*	*	*
Outside	inch	11/2"	2”	2 1/2"	3”	3 1/2"	4”	4 1/2”
Diameter/ Thickness	inch	11/2"	2”	2 1/2"	3”	3 1/2"	4”	4 1/2”
mm	mm/gauge	38.1	50.8	63.5	76.2	88.9	101.6	114.3
1.2	-	*
1.24	18	*
1.5	-	*	*	*	*	*	*
1.65	16	*	*	*	*	*	*
2	-	*	*	*	*	*	*	*
2.11	14	*	*	*	*	*	*	*

Available Specification

ASTM A269 Chemical Composition (%, max)
Steel Grade	C	Si	Mn	Cr	Ni	Mo	S	P
TP304	0,08	0,75	2	18 - 20	8 - 11	-	0,03	0,04
TP304L	0,035	0,75	2	18 - 20	8 - 13	-	0,03	0,04
TP316	0,08	0,75	2	16 - 18	11 - 14	2 - 3	0,03	0,04
TP316L	0,035	0,75	2	16 - 18	10 - 15	2 - 3	0,03	0,04
TP321	0,08	0,75	2	17 - 20	9 - 13	-	0,03	0,04

ASTM A269 Mechanical properties
Steel Grade	*Tensile Strength,N/mm2* (min)**	*Yield Strength,N/mm2* (min)**	Elongation,% (min)
TP304	515	205	35
TP304L	485	170	35
TP316	515	205	35
TP316L	485	170	35
TP321	515	205	35

ASTM A269 Stainless Steel TP304 TP304L TP316 TP316L

NPS,inch	Outside Diameter,mm	Wall Thickness,mm	Max.Length,м
1/8	10,3	1,24; 1,73; 2,40	12
1/4	13,7	1,65; 2,24; 3,02
3/8	17,1	1,65; 2,31; 3,20
1/2	21,3	1,65; 2,11; 2,77; 3,73
3/4	26,7	1,65; 2,11; 2,87; 3,91
1	33,4	1,65; 2,77; 3,38; 4,55	10
1 1/4	42,4	1,65; 2,77; 3,56; 4,85
1 1/2	48,3	2,77; 3,68; 5,08
2	60,3	3,91; 5,54	7
