PINDEE STEEL China Manufacture ASTM A554 Stainless Steel Tube

Views: 25 Author: Site Editor Publish Time: 2023-03-16 Origin: Site

PINDEE PIPE MANUFACTURE AISI 304 ASTM A554 Stainless Steel Pipe supplier from China Wenzhou

ASTM A544 square tube is a widely used stainless steel tube under the A544 American standard. This standard and specification cover the main mechanical properties, corrosion resistance, and appearance characteristics of pipelines. This specification can have pipes of any material grade. ASTM A554 rectangular pipe is another type of pipe that is not commonly used in this specification. The most commonly used shape is the round tube type, and PINDEE pipe is a large supplier of these different types and sizes of pipes. The size of these pipes can generally reach 16 inches.

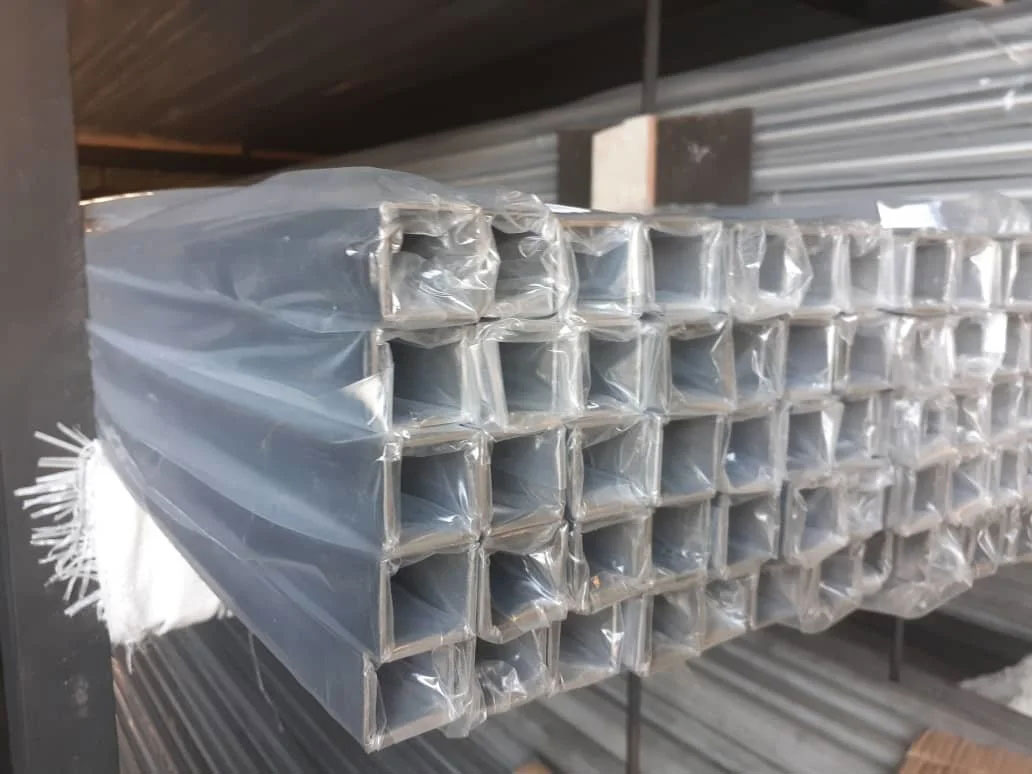

CHINA-MANUFACTURE-ASTM-A554-STAINLESS-STEEL-PIPE

Table of contents
AISI 304 ASTM A554 Stainless Steel Pipe

A554 Tubing Specification

ASTM A554 grade mt304/ 304L sizes and weight

ASTM A554 Rectangular Tube Size Chart

Types of ASTM A554 Stainless Steel Tubing
Stainless Steel Rectangular Tube ASTM A554

ASTM A554 Square Tubing

ASTM A554 Rectangular Tube
A554 Stainless Steel Square Tube made in China

ASTM A554 Tolerances

Mechanical Properties of ASTM A554 Tube

ASTM A554 Chemical Composition

Equivalent Materials of ASTM A554

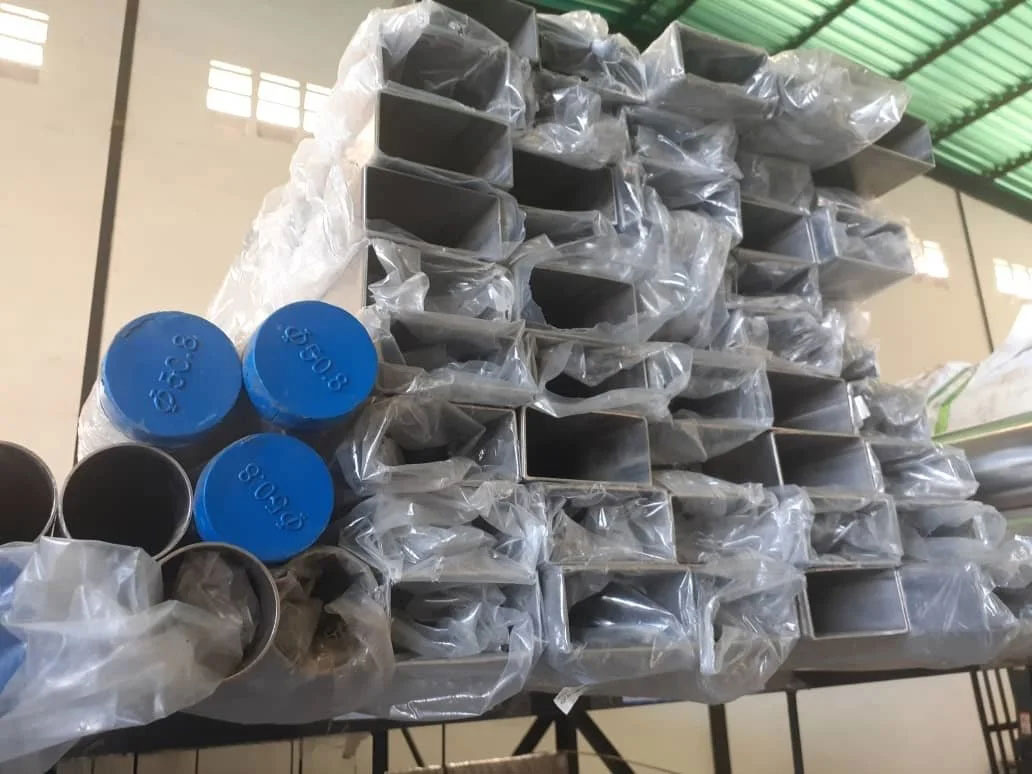

Stainless-Steel-Rectangular-Tube-ASTM-A554

Check the size table of 316 stainless steel welded pipe material

PINDEE STEEL China Manufacture ASTM A554 Stainless Steel Tube,the most commonly used material grade for pipes in this specification is ASTM A554 304 pipe. Due to its high cost-effectiveness, 304 is most commonly used in the production of these pipelines. The size of ASTM A554 pipes can vary according to the plan. The wall thickness varies with the nominal size of the pipeline, and in this specification, the wall thickness range can reach 51mm. ASTM A554 stainless steel welded pipes are suitable for welding applications. A544 stainless steel pipes can have different grades of ASTM A554 pipes, such as ASTM A544 Tp304, ASTM A544 Tp409, ASTM A5554 316, or ASTM A544 Mt304. They all have their own characteristics. For example, ASTM A554 Mt 316L grade contains molybdenum in its composition and has a lower carbon content, making it more corrosion-resistant. Our ASTM A544 stainless steel pipes are highly competitive in both price and quality. Please contact us for more details.

ASTM A554 pipe specifications

Select A554 Grade Mt 316L Rectangula for your material and size:

Grades	ASTM A554 MT304/ MT304L/ MT316L / MT309S / MT310 / MT310S / MT308 / MT202 / MT321 / MT347 / MT430.
Size Range	½" to 8" Dia
Wall Thickness	0.049" to 0.375"
Manufacturing Type	Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded
Delivery Condition (Welded)	Cold reduced and annealing, Annealed and Pickled (AP), cold reduced
Surface Finish	Polished 180 grit, polished 320 grit, Mill finish
Standard	SUS, JIS, AISI, ASTM, GB, DIN, EN
Value Added Services	Cutting
	Beveling
	Threading
	Polishing (Electro & Commercial)
	Draw & Expansion as per required Size & Length
	Destructive and Non Destructive
	Ultrasonic Testing
	Annealed & Pickled Bending
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Processing Service	Bending, Welding, Decoiling, Punching, Cutting, Moulding
Technique	Cold drawn, Cold rolled, Hot rolled, Extrusion Tube
Tolerance	Outer Diameter: +/- 0.2mm
	Thickness: +/- 10% OR as customer request
	Length: +/- 10mm
Test Certificate	DFARS compliant
	EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
	Hardness Test
	Tension Test
	Nondestructive Test
Packing	Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers' request
Port	China

ASTM A554 grade mt304/ 304L sizes and weight (Square Shape)

GAUGE	18	16	14	11	7	1/4	3/8
INCHES	0.049	0.065	0.083	0.12	0.18	0.25	0.375
1/2	0.3	0.39
5/8	0.38	0.4
3/4	0.5	65	0.81	1.13
1	0.63	0.83	1.03	1.45	2.17
1-1/4	0.82	1.08	1.37	1.93	2.99
1-1/2	0.97	1.27	1.61	2.26	3.63	4.41
1-3/4	1.13	1.49	1.88	2.66	3.75
2	1.3	1.69	2.14	3.06	4.46	6.01
2-1/2			2.72	3.88	5.68	7.67
3			3.29	4.97	6.9	9.35
3-1/2				5.67	8.06	10.89
4				6.26	9.27	12.68	18.52
5				8.02	11.9	16.35	23.53
6				9.46	14.07	18.77	28.53
8						26.03	38.55

ASTM A554 Rectangular Tube Size Chart

GAUGE	18	16	14	11	7	1/4	3/8
INCHES	0.049	0.065	0.083	0.12	0.18	0.25	0.375
1/2 x 3/4	0.38	0.05
1/2 x 1	0.5	0.65	0.82	1.13
1/2 x 1-1/2	0.63	0.83	1.03	1.45
1/2 x 2	0.82	1.08	1.37	1.93	2.09
3/4 x 1	0.56	0.74	0.92	1.29
3/4 x 1-1/4	0.63	0.83	1.03	1.45	2.17
3/4 x 1-1/2		0.99	1.25	1.77
3/4 x 2	0.89	1.17	1.48	2.09
1 x 1-1/4		0.99	1.25	1.77
1 x 1-1/2	0.82	1.08	1.37	1.93
1 x 2	0.97	1.27	1.51	2.26	3.63
1 x 2-1/2		1.49	1.88	2.66
1 x 3	1.3	1.69	2.14	3.06	4.46	6.01
1 x 4			2.72	3.88	5.68	7.67
1-1/2 x 2		1.49	1.88	2.66
1-1/2 x 2-1/2	1.3	1.69	2.14	3.06	4.46	6.01
1-1/2 x 3		1.93	2.45	3.48	5.28
1-1/2 x 4	1.81	2.38	3.03	4.33	5.3	7.58
2 x 3			2.72	3.88	5.68	7.67
2 x 4			3.29	4.97	6.9	9.35	13.64
2 x 5				5.67	8.06	10.89
2 x 6				6.26	9.27	12.68	18.52
2 x 8				8.02	11.9	16.35	23.53
2 x 10				9.46	14.07	18.77	28.53
3 x 4				5.67	8.06	10.89
3 x 5				6.26	9.27	12.68	18.52
3 x 6				7.22	10.52	13.8	21.03
4 x 6				8.02	11.9	16.35	23.35
4 x 8				9.46	14.07	18.77	28.53
4 x 10						22.71	33.54
4 x 12						26.03	38.55
6 x 8						22.51	33.35
6 x 10						26.27	38.91
