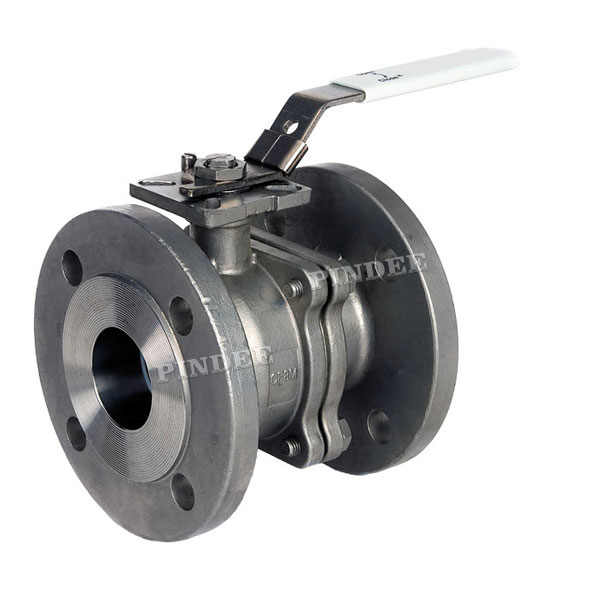

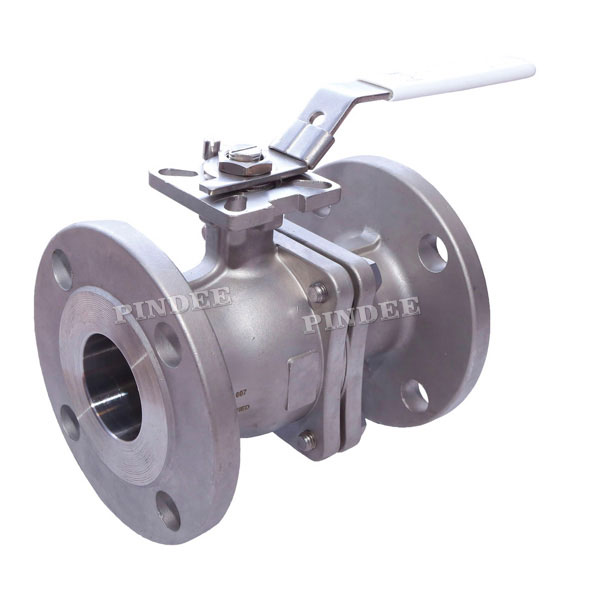

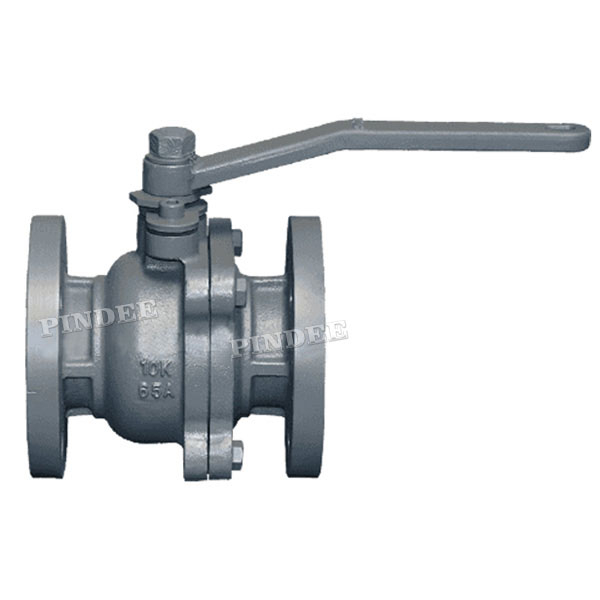

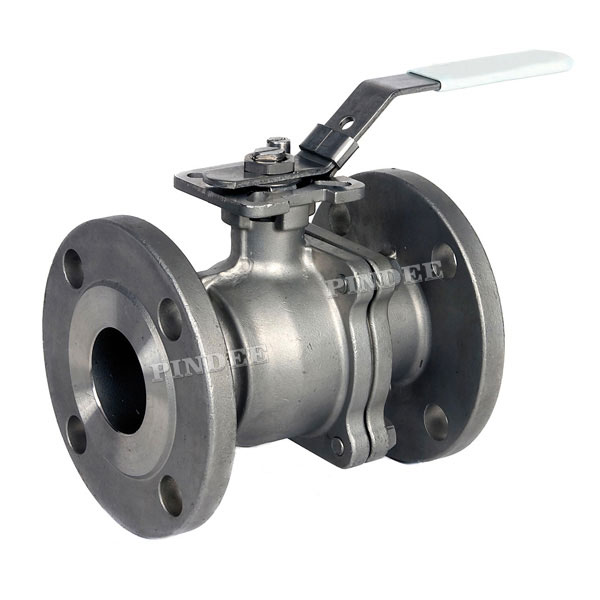

PTFE Seat Flanged Ball Valve

Size: DN15-DN300
Pressure Rating: PN16
Material: WCB
Design Standard: API608,GB/T12237
Inspection Standard: API598,GB/T13927
Application medium: Water, steam, oil
Application Temperature: -20℃～150℃

Availability:

Quantity:



Inquire

Product Description

Product Description

Features:

Applicable medium：Water, steam, oil.
Suitable temperature：-20℃～150℃
Application field： Municipal construction, water treatment, electricity, petroleum, water supply and drainage, water conservancy projects.

Product advantages:

1. The valve body is a precision casting valve body, the material is WCB, the appearance is fine, and there is no sand hole.
2. The valve body is solid and heavy.
3. The material of ball is solid stainless steel 304 .
4. Each valve must be tested in accordance with the national standard before leaving factory.

Application:

Application field; Municipal construction; Water treatment; Electricity; Petroleum; Water supply; Drainage; Water conservancy projects

Technical parameters:

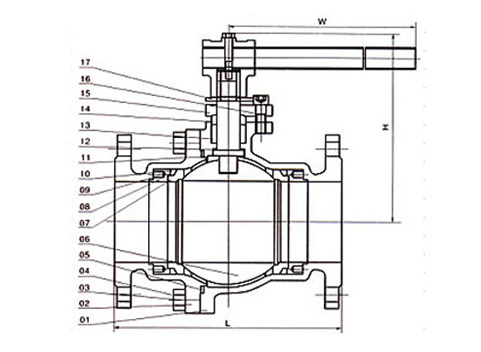

PTFE-Seat-Flanged-Ball-Valve-Drawing

SIZE		PN16			150LB			10K
DN	NPS	L	ΦA	ΦB	L	ΦA	ΦB	L	ΦA	ΦB
15	1/2''	130	95	65	108	89	65.5	108	95	70
20	3/4''	140	105	75	117	98	70	117	100	75
25	1''	150	115	85	127	108	79.5	127	125	90
32	1 1/4''	165	135	100	140	117	89	140	135	100
40	1 1/2''	180	145	110	165	127	98.5	165	140	105
50	2''	200	160	125	178	152	120.5	178	155	120
65	2 1/2''	220	180	145	190	178	139.5	190	175	140
80	3''	250	195	160	203	190	152.5	203	185	150
100	4''	280	215	180	229	229	190.5	229	210	175
125	5''	320	245	210	356	254	216	356	250	210
150	6''	360	280	240	394	279	241.5	394	280	240
200	8''	400	335	295	457	343	298.5	457	330	290
250	10''	450	405	355	533	406	362	533	400	355
300	12''	620	460	410	610	482.6	431.8
