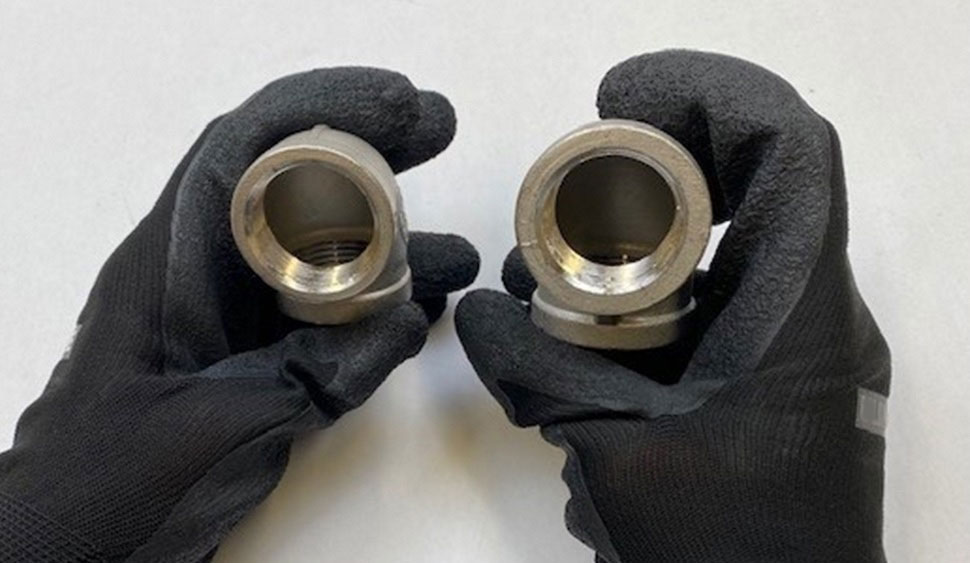

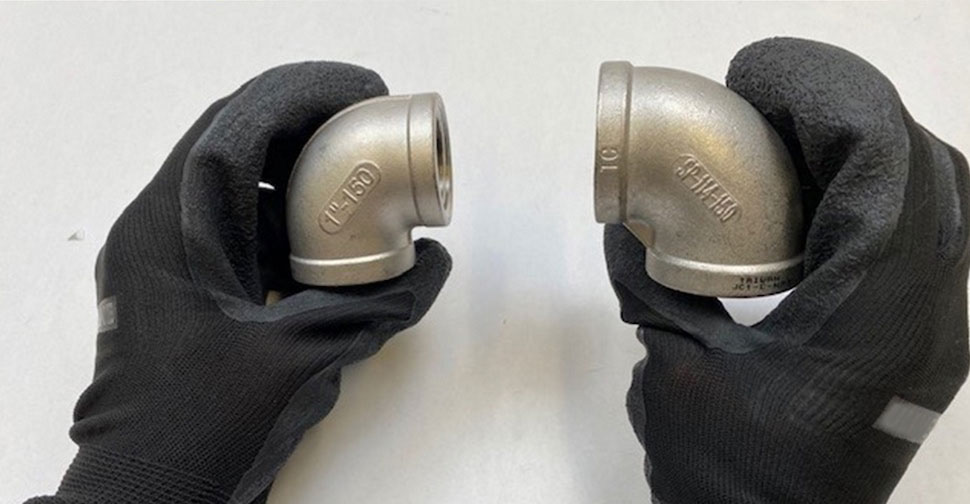

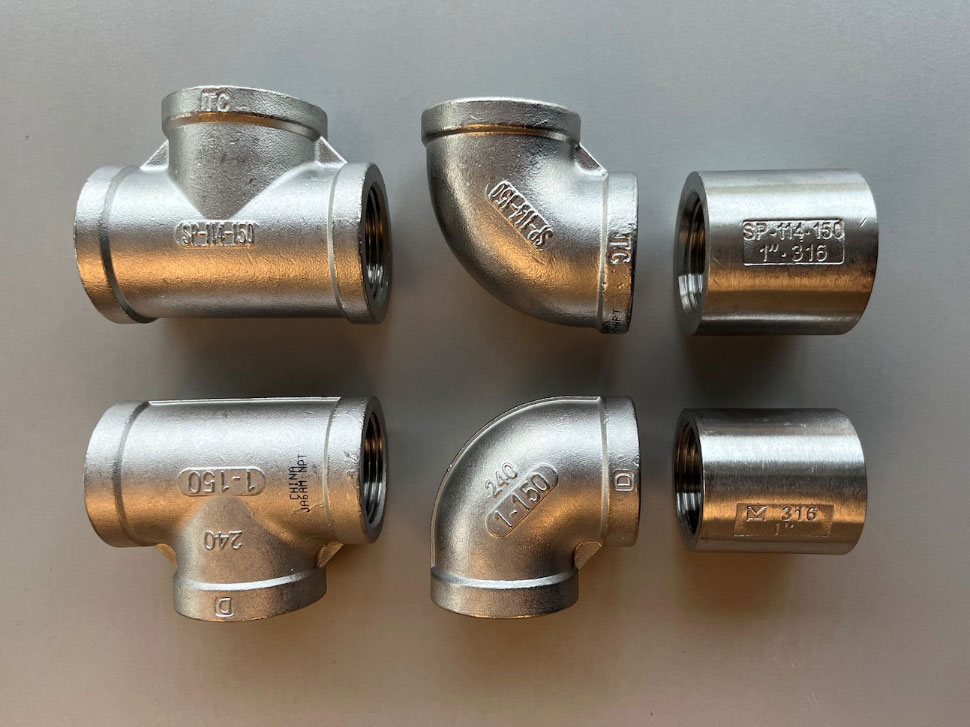

Pindee Fitting 1Inch SS304 NPT Ends Class 150LB

Pindee Fitting which is a China manufacture supply our customers threaded class150lb normal weight and heavy weight fittings made the sense of what Stainless steel threaded pipe fittings have some sizes and budget.The standard for pipe fittings to guarantee similar plans and particulars among makers and help make a reliable, unsurprising, and safe experience while executing these well known items in a scope of uses. Once you have any new inquiry of our threaded 150lb npt fittings request, pls send us an email to sales@pindee.com.

Before we plunge into the specific standards relevant to categorizing stainless steel threaded pipe fittings, we should pause for a minute to take a gander at where these guidelines come from.

These standards depend chiefly on crafted by three associations:

ASTM - American Society for Testing and Materials International

ANSI - American National Standards Institute

ISO - International Organization for Standardization

While the standards of these three groups, the Manufacturers Standardization Society (MSS) took things further by finishing up holes in norms and further explaining definitions and necessities.

The American Society of Mechanical Engineers (ASME) standards are also gotten and ordered from the guidelines delivered by each of the four associations.The most significant stainless steel pipe fittings standards are ANSI B1.20.1 and ASTM A351.

3 CONSIDERATIONS FOR PICKING THE APPROPRIATE PIPE FITTING

Stainless steel threaded pipe fittings should provide information about each of the following:

Connection types

Pressure classes

Material types

Let’s look at each.

CONFIRMING A SOLID SEAL WITH STANDARDIZED PIPE THREADING

Connection what type regarding threaded pipe fittings typically focus on the thread pattern.Thread patterns are most frequently characterized by the size and tighten type.In where North America, it is common to find threaded fittings with a National Pipe Thread (NPT) taper. Standard sizes range between 1/4-inch and 6-inche NPT.

A FAST LOOK AT PRESSURE CLASSES

With the association and seal type considered, we'll presently check out at more useful characterization components.The pressure class defines the maximum pressure a pipe, fitting, or valve ought to be equipped for enduring at a given temperature under common working circumstances.It's critical to understand that these classes can give different tension resiliences in view of the part type.

Such as class 150 (CL150) threaded fittings have different limits than CL150 flanges.As the definition highlights, pressure classes are also defined at specific temperatures.This means that you need to understand any external and internal temperatures throughout the piping process to ensure that all threaded pipe fittings are operating within their tolerance limits.In most cases, pressure tolerances–also referred to as maximum working pressure measurements–will decrease as temperatures increase.

As a rule, 150LB fittings are the most ideal for business, private, marine, food and refreshment, and modern applications where ASME B31 codes don't matter. In spite of the fact that there would be utility and perhaps process applications inside a modern plant where working tensions under 225psi and temperatures under 150F do exist — the fittings determined should in any case be consistent with the relevant code.

Assuming you will purchase ASTM A351 CL150 pipe fittings that meet ANSI B16.3 or MSS SP-114 guidelines will give adequate particulars. For full consistence, pipe fittings should be projected utilizing CF8 grade (18% Chromium and 8% Nickel) or CF8M grade (18% Chromium, 10% Nickel, 2% Molybdenum.) As a rule, 150LB fittings are the most ideal for business, private, marine, food and refreshment, and modern applications where ASME B31 codes don't matter. In spite of the fact that there would be utility and perhaps process applications inside a modern plant where working tensions under 225psi and temperatures under 150F do exist — the fittings determined should in any case be consistent with the relevant code.
