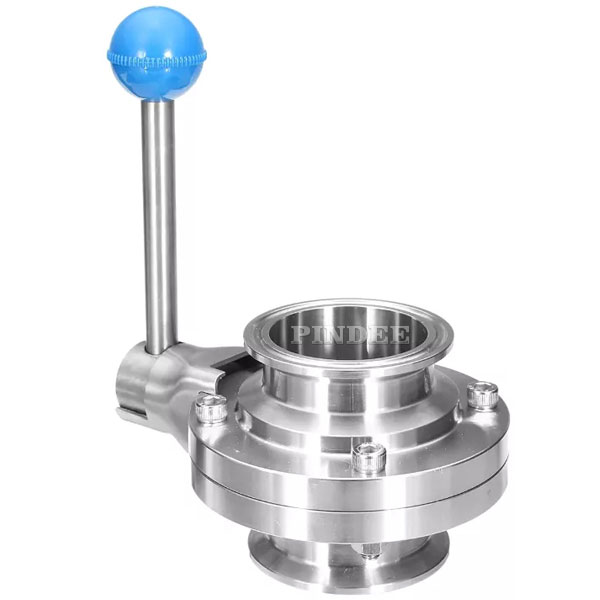

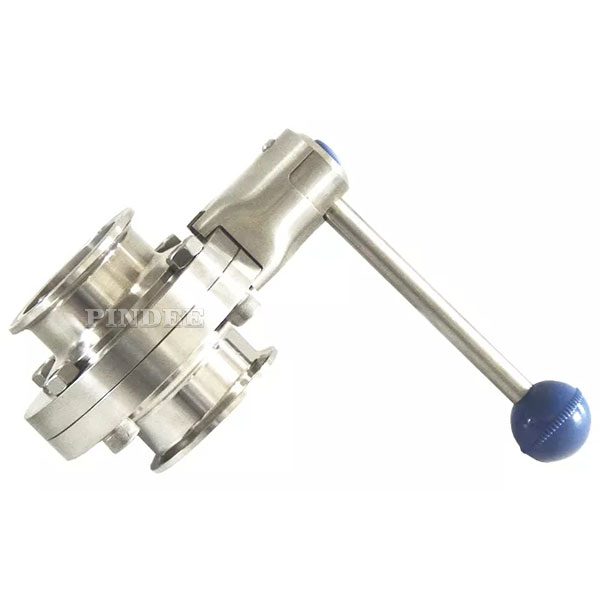

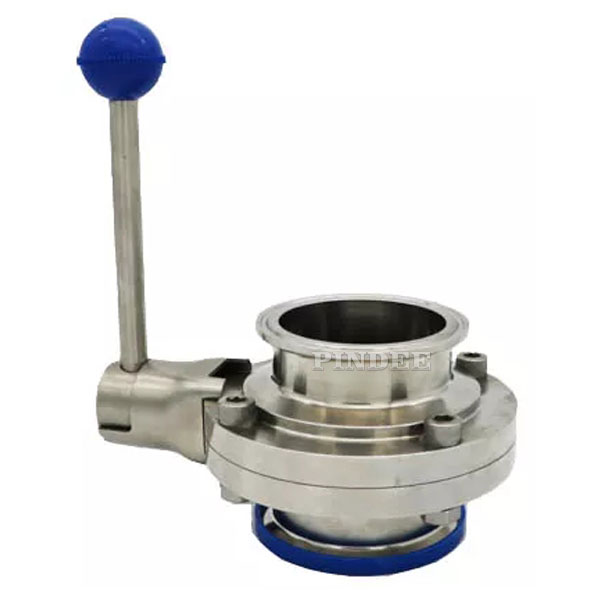

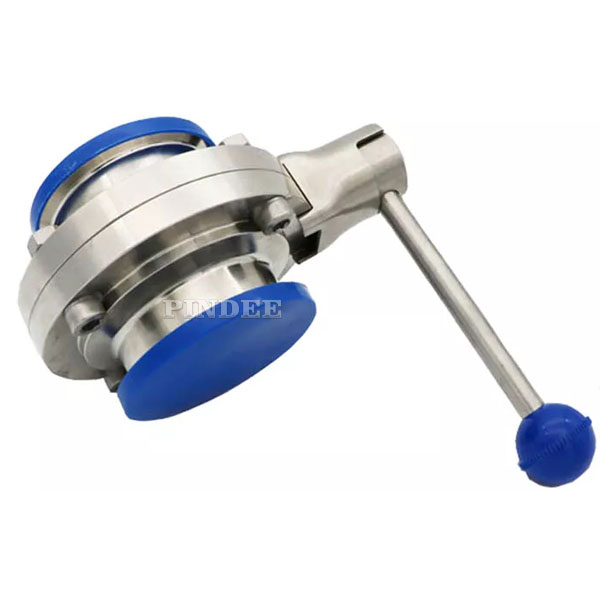

Pindee Stainless Steel Sanitary butterfly valve Tri clamp 3A with Pull handle EPDM Silicone seal

Pindee Stainless Steel Sanitary butterfly valve Tri clamp 3A with Pull handle EPDM Silicone seal and fittings consistent with American Standard 3A sanitary standard, constructed from sanitary stainless steel 304 or 316L, give strong, sturdiness, issue free for weld or collect, accessible in ASME BPE, 3-A, Commotion, SMS, I-line standard. Ferrule and fittings Widely used in food and drink, blending, drug enterprises.

Pindee Valve Manufacture Sanitary Multi Position Butterfly Valve with Triggle Handle-The manual butterfly valves in low cost, easy maintenance, and simple structure. They are good choice in the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical,Chemical industries.

Pindee Stainless Steel guarantee our stainless steel materials will be resistant to wearing,corrosion and have high intensity. In each procedure,we do strict Mill test report,such as chemical inspection and physical test,measuring,surface roughness,especially the wall thickness must meet DIN,3A,SMS or BPE torrence.Welcome to Pindee to purchase stainless steel to our email address:sales@pindee.com

Pindee Stainless Steel Sanitary butterfly valve Tri clamp 3A with Pull handle EPDM Silicone seal-The manual butterfly valves feature in low cost, easy maintenance, and simple structure. They are good choice for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical,Chemical industries

Size : 1/2″ – 10″
Body Materials: Stainless Steel 304 or 316L/1.4301,1.4404
Seat Materials: Silicone ,EPDM,VITON,NBR
Max.pressure：10 bar (DN-25/100),8 bar (DN-125/150)
Min.pressure：0.2 bar
Operating temperature：-10℃ to–120℃ （EPDM)
Manual handle, pneumatic actuator and electric actuator can be exchangeable with each other

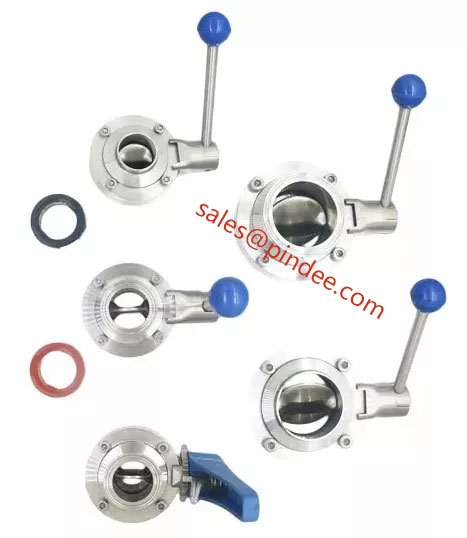

Handles types
Pulling Handle with blue ball – 2/3/4 position
Square Pull Handle – 2/3/4 position
Multi-position Plastic Handle – Adjustment 15°  12 position
Stainless Steel triggle Handle – Adjustment 15°  12 position

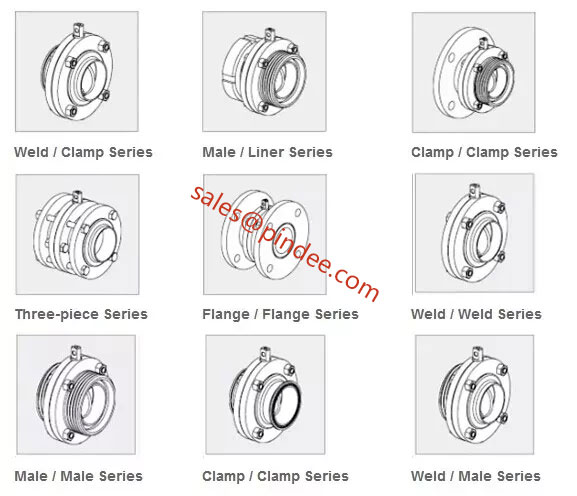

Configurations of connection ends
Valve body can be interchangeable with any type of connection

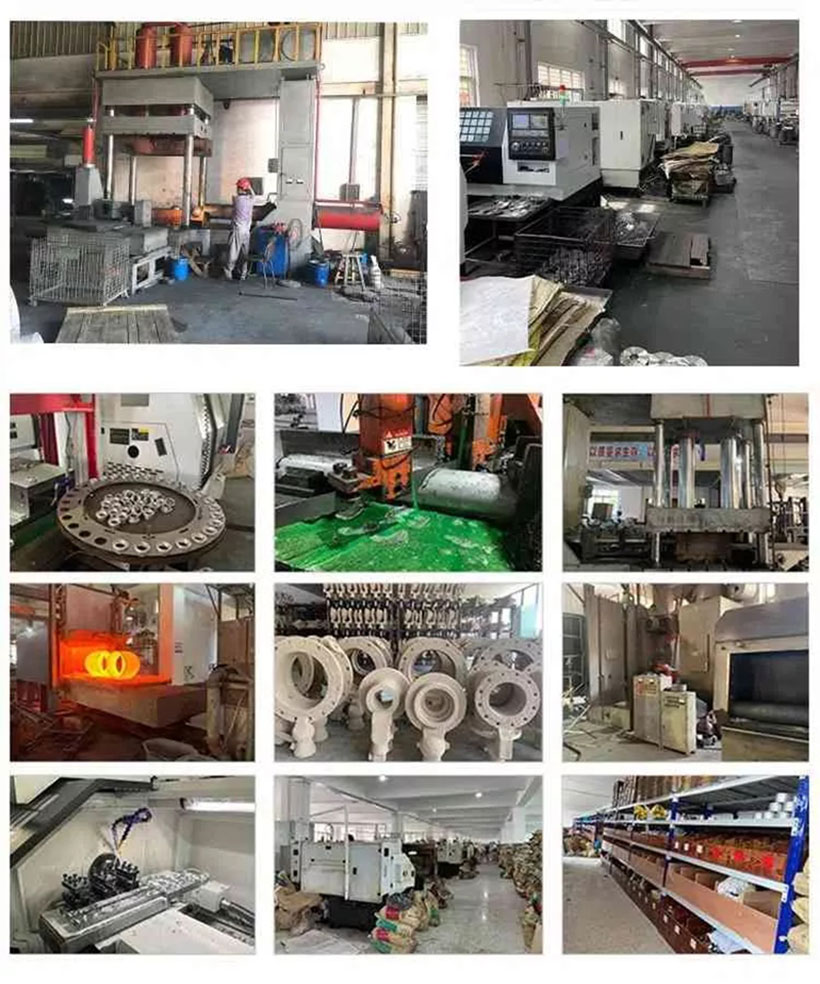

Pindee Sanitary Butterfly valve manufacture

Packaging & Delivery
