Pindee Steel tell you what are threaded Fittings Class 150LB

Pindee Steel tell you what are Stainless steel threaded Class 150# Fittings?

Pindee steel manufacture two different fittings,one is Class 150 threaded fittings, first is NPT (National Pipe Thread) and another is BSPT (British Standard Pipe Tapered). As a connector, the 150LB grade fittings can prevent leakage between two pipelines.

Pindee Steel say what are steel Class 150# Fittings made in China used for?

The Class 150LB threaded joint is mainly used for tightening with the joint to extend the flow direction. The 150 grade threaded joint complies with ASTM A351 CF8M/316 stainless steel material.

Pindee Stainless Steel tell you how many types of fittings are there?

There are various joint designs for threaded fittings. These accessories often change due to the channel and flow rate of the hydraulic system. The following are commonly used threaded joints in the main systems.

Pindee steel manufacture steel 90 Degree Elbow from China factory – It includes two internal threaded end connections that can be used to connect pipes that require a 90 degree turn.

90D Street Elbow – It is equipped with a male thread and a female thread end connection, which can be bent at a 90 degree right angle to change the system flow direction.

45D elbow - with two internal threaded end connections, can be installed in pipes that require a 45 degree turn.

45D Street Elbow - It has an internal thread and an external thread end connection, which can be connected to a 45 degree right angle bend to change the system flow direction.

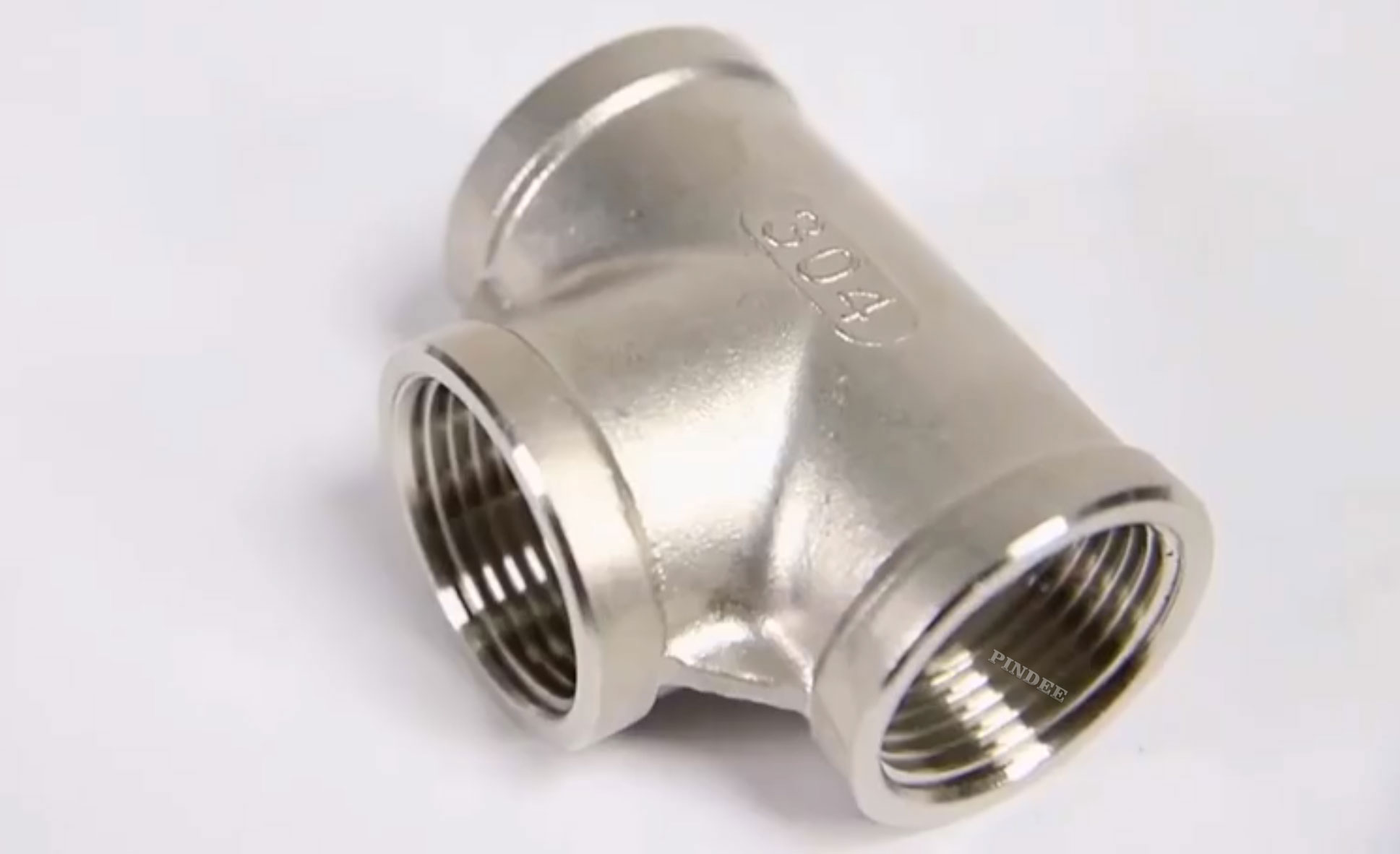

T-shaped threaded joint design, used to connect pipes at a 90 or 180 degree angle to achieve flow transmission. There are three internal threaded end connections, with equal flow from inlet to outlet.

Reducing tee - It can be applied to pipelines at an angle of 180 or 90 degrees during fluid transportation. It has three internal threaded end connections; However, the port size is 2 standard flow and 1 reduced flow.

Full coupling - In threaded joint type connecting pipes, it has two internal threaded end connections.

Half coupling - designed with an internal thread and a welded end connection, typically used as an alternative to welding and threaded connections.

Reducing pipe - By installing two different pipes together, it helps to extend the connection of the pipes. Two female threaded end connections are used to extend the connection of two different pipes by installing them together.

union- composed of three components, including two main bodies and a nut. It is different from couplings because it allows for future disconnection of pipelines for maintenance purposes.

Round cap - used to protect and secure pipe end connections. It has a female terminal connection.

Hexagonal bushing - slightly different from most accessories, as the external thread size is larger than the internal thread size. Used to connect two pipes of different sizes.

Hexagonal plug - a hexagonal shape with convex connections, installed at the end of the flow direction, used to prevent fluid movement throughout the entire pipeline system.

Hexagonal nipple - designated for extending pipe connections by connecting two female sides. It has two external threaded end connections.
