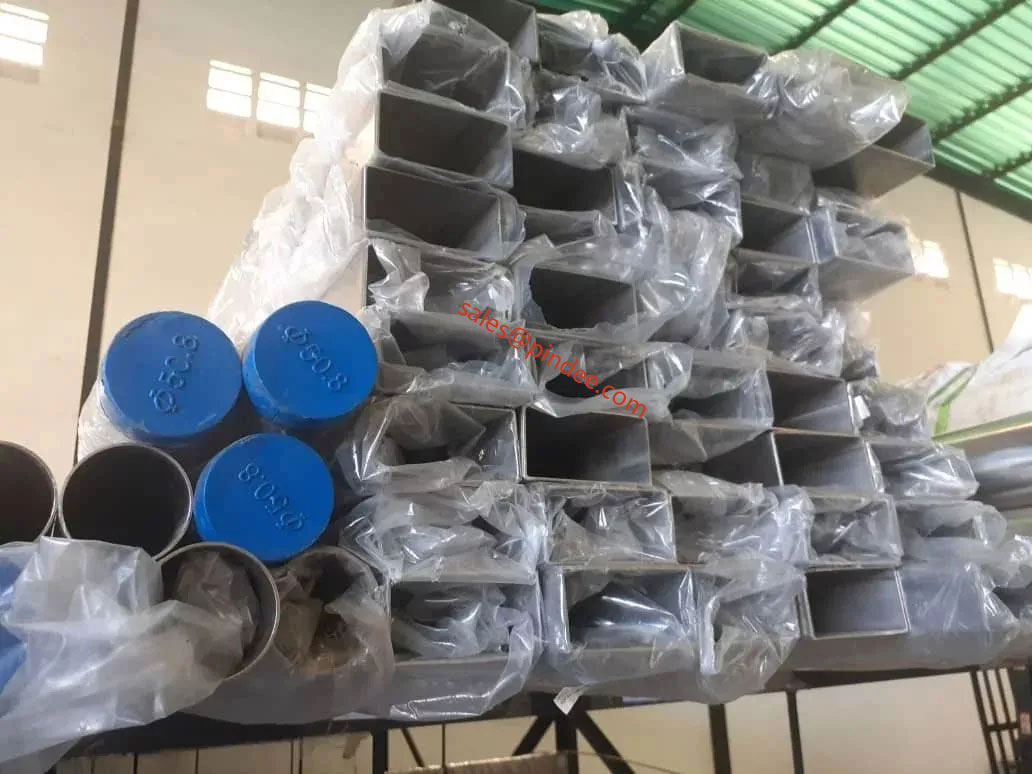

ASTM A554 Stainless Steel AISI 201 202 304 316 Square and Rectangular From Pindee Pipe Pindee Stainless
Pindee Stainless Steel and Pindee Pipe is one of the leading manufacture of rectangular stainless steel pipe, Our main material is AISI201 AISI202,AISI304, AISI304L, AISI316, AISI316L, AISI 201, AISI202, AISI409L, AISI430, etc. Polish surface:MF(mill finish), 180#, 180#(HL), 240#, 320#, 400#, 600#, 800#, Mirror Polish.The pipes with high-intensity quality control, stronger factory and 100% unique Chinese rectangular cylinder quality assistance. Our main goal is to permit you to lay out an enduring relationship with your purchasers through promoting capacities.Welcome to Pindee to purchase stainless steel to our email address:sales@pindee.com
100% original Chinese rectangular square tube, stainless steel square pipe, complete variety, high quality, reasonable price, fashionable design, Pindee Stainless steel square tubes are widely used in many industries. Which are broadly perceived and trusted by clients, and can meet the always changing monetary and social necessities. Your trust will bring me incredible inspiration.
ASTM A554 Square Tube is important for the ASTM A554 / ASME SA554 Tubes specification whose specification covers pipes require mechanical corrosion resistance,properties and appearance characteristics. Pindee Pipe of ASTM A554 Rectangular Tube is one of type tubing which is less commonly used in this specification. The specification can have any material grade made tubes.The mostly commonly used shape is the round pipe type and Pindee Pipe is a leading manufacture of these tubes in different types and sizes. The range sizes of these tubing up to 16 inches in general.
Table of contents
AISI 201 202 304 316 ASTM A554 Stainless Steel Pipe made in China
A554 Tubing Specification
ASTM A554 grade mt304/ 304L sizes and weight
ASTM A554 Rectangular Tube Size Chart
Types of ASTM A554 Stainless Steel Tubing
Stainless Steel Rectangular Tube ASTM A554 manufacture
ASTM A554 Square Tubing
ASTM A554 Rectangular Tube
A554 Stainless Steel Square Tube competitive price
ASTM A554 Tolerances
Mechanical Properties of ASTM A554 Tube
ASTM A554 Chemical Composition
Equivalent Materials of ASTM A554
Check Dimensions for Pindee Mat Type 316 Stainless Steel Welded Square & Rectangula Tubes
Widely used material grade for this pipes is the American Standard of ASTM A554 304 Tube. What's the reason 304 is a cost effective material, it is used the most to producing way. Pindee Stainless ASTM A554 Tube dimensions can change from one schedule to another schedule. The wall thickness can range up to 51mm. The Stainless Steel Welded Tube ASTM A554 is a choice to be used under welded applications. The A554 Stainless Steel Tube in vious of ASTM A554 Tubing for example the ASTM A554 Tp304 , the ASTM A554 Tp409, the ASTM A554 Type 316, or the ASTM A554 Mt304. All of them have specific characteristics. Such as, the ASTM A554 Grade Mt 316l has molybdenum in its piece with lower carbon content which makes it much consumption safe and more grounded. Our ASTM A554 Stainless Steel Tubing provide you a competitive in pricing and good quality. Please contact us for further details.Welcome to Pindee to purchase stainless steel to our email address:sales@pindee.com
A554 Tubing Specification,Select your size and length in of A554 Grade Mt 316L Rectangula
| Grades | ASTM A554 MT304/MT304L/MT316L/MT309S/MT310/MT310S/MT308/MT202/MT321/MT347/MT430. |
| Size Range | ½" to 8" Dia |
| Wall Thickness | 0.049" to 0.375" |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition (Welded) | Cold reduced and annealing, Annealed and Pickled (AP), cold reduced |
| Surface Finish | Polished 180 grit, polished 320 grit, Mill finish |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Value Added Services | Cutting |
| Beveling | |
| Threading | |
| Polishing (Electro & Commercial) | |
| Draw & Expansion as per required Size & Length | |
| Destructive and Non Destructive | |
| Ultrasonic Testing | |
| Annealed & Pickled Bending | |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| Technique | Cold drawn, Cold rolled, Hot rolled, Extrusion Tube |
| Tolerance | Outer Diameter: +/- 0.2mm |
| Thickness: +/- 10% OR as customer request | |
| Length: +/- 10mm | |
| Test Certificate | DFARS compliant |
| EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC) | |
| Hardness Test | |
| Tension Test | |
| Nondestructive Test | |
| Packing | Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing |
| or as per customers' request | |
| Port | China |
ASTM A554 grade mt304/ 304L sizes and weight (Square Shape)
| GAUGE | 18 | 16 | 14 | 11 | 7 | 1/4 | 3/8 |
| INCHES | 0.049 | 0.065 | 0.083 | 0.12 | 0.18 | 0.25 | 0.375 |
| 1/2 | 0.3 | 0.39 | |||||
| 5/8 | 0.38 | 0.4 | |||||
| 3/4 | 0.5 | 65 | 0.81 | 1.13 | |||
| 1 | 0.63 | 0.83 | 1.03 | 1.45 | 2.17 | ||
| 1-1/4 | 0.82 | 1.08 | 1.37 | 1.93 | 2.99 | ||
| 1-1/2 | 0.97 | 1.27 | 1.61 | 2.26 | 3.63 | 4.41 | |
| 1-3/4 | 1.13 | 1.49 | 1.88 | 2.66 | 3.75 | ||
| 2 | 1.3 | 1.69 | 2.14 | 3.06 | 4.46 | 6.01 | |
| 2-1/2 | 2.72 | 3.88 | 5.68 | 7.67 | |||
| 3 | 3.29 | 4.97 | 6.9 | 9.35 | |||
| 3-1/2 | 5.67 | 8.06 | 10.89 | ||||
| 4 | 6.26 | 9.27 | 12.68 | 18.52 | |||
| 5 | 8.02 | 11.9 | 16.35 | 23.53 | |||
| 6 | 9.46 | 14.07 | 18.77 | 28.53 | |||
| 8 | 26.03 | 38.55 |
ASTM A554 Rectangular Tube Size Chart
| GAUGE | 18 | 16 | 14 | 11 | 7 | 1/4 | 3/8 |
| INCHES | 0.049 | 0.065 | 0.083 | 0.12 | 0.18 | 0.25 | 0.375 |
| 1/2 x 3/4 | 0.38 | 0.05 | |||||
| 1/2 x 1 | 0.5 | 0.65 | 0.82 | 1.13 | |||
| 1/2 x 1-1/2 | 0.63 | 0.83 | 1.03 | 1.45 | |||
| 1/2 x 2 | 0.82 | 1.08 | 1.37 | 1.93 | 2.09 | ||
| 3/4 x 1 | 0.56 | 0.74 | 0.92 | 1.29 | |||
| 3/4 x 1-1/4 | 0.63 | 0.83 | 1.03 | 1.45 | 2.17 | ||
| 3/4 x 1-1/2 | 0.99 | 1.25 | 1.77 | ||||
| 3/4 x 2 | 0.89 | 1.17 | 1.48 | 2.09 | |||
| 1 x 1-1/4 | 0.99 | 1.25 | 1.77 | ||||
| 1 x 1-1/2 | 0.82 | 1.08 | 1.37 | 1.93 | |||
| 1 x 2 | 0.97 | 1.27 | 1.51 | 2.26 | 3.63 | ||
| 1 x 2-1/2 | 1.49 | 1.88 | 2.66 | ||||
| 1 x 3 | 1.3 | 1.69 | 2.14 | 3.06 | 4.46 | 6.01 | |
| 1 x 4 | 2.72 | 3.88 | 5.68 | 7.67 | |||
| 1-1/2 x 2 | 1.49 | 1.88 | 2.66 | ||||
| 1-1/2 x 2-1/2 | 1.3 | 1.69 | 2.14 | 3.06 | 4.46 | 6.01 | |
| 1-1/2 x 3 | 1.93 | 2.45 | 3.48 | 5.28 | |||
| 1-1/2 x 4 | 1.81 | 2.38 | 3.03 | 4.33 | 5.3 | 7.58 | |
| 2 x 3 | 2.72 | 3.88 | 5.68 | 7.67 | |||
| 2 x 4 | 3.29 | 4.97 | 6.9 | 9.35 | 13.64 | ||
| 2 x 5 | 5.67 | 8.06 | 10.89 | ||||
| 2 x 6 | 6.26 | 9.27 | 12.68 | 18.52 | |||
| 2 x 8 | 8.02 | 11.9 | 16.35 | 23.53 | |||
| 2 x 10 | 9.46 | 14.07 | 18.77 | 28.53 | |||
| 3 x 4 | 5.67 | 8.06 | 10.89 | ||||
| 3 x 5 | 6.26 | 9.27 | 12.68 | 18.52 | |||
| 3 x 6 | 7.22 | 10.52 | 13.8 | 21.03 | |||
| 4 x 6 | 8.02 | 11.9 | 16.35 | 23.35 | |||
| 4 x 8 | 9.46 | 14.07 | 18.77 | 28.53 | |||
| 4 x 10 | 22.71 | 33.54 | |||||
| 4 x 12 | 26.03 | 38.55 | |||||
| 6 x 8 | 22.51 | 33.35 | |||||
| 6 x 10 | 26.27 | 38.91 |
