Product Description
Pindee Stainless Fittings, Cast Threaded 150LB Fittings
Material: SS316/ASTM A351-CF8M/DIN1.4408; SS304/ASTM A351-CF8/DIN1.4401

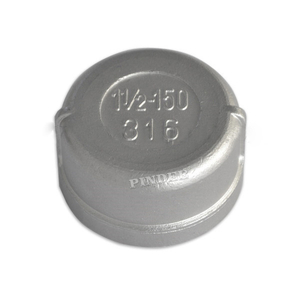

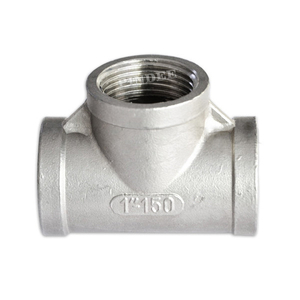

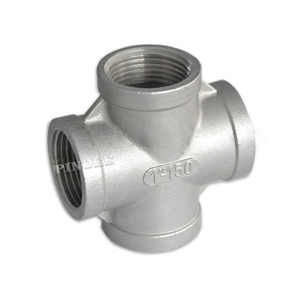

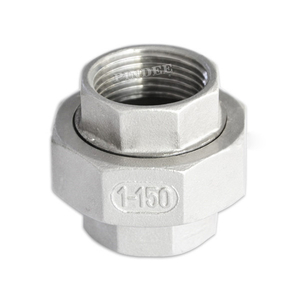

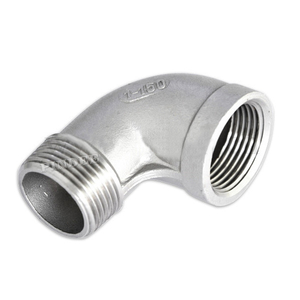

Type: Elbow 90°, Elbow 45°, Street Elbow, Tee, Socket Banded, Full Coupling OD Machined, Half Coupling; Hexagon Nipple, Cross, Union Conical F/F, Union F/M, Union M/M, Hexagon Bushing, Round Cap, Hexagon Cap, Square Plug, Hexagon Plug, Hexagon Nut, Reducing Nipple, Hose Nipple, Reducing Socket Banded, Welding Nipple, Barrel Nipple
Size: 1/8''-4''
Thread: NPT, BSP, DIN2999, ISO228/1
Standard: ASTM A351
Pressure: 150LBS
Technology Condition: investment casting.
Application: Water, Gas, Oil, Chemical Engineering.
Package: Bulk packed in plastic bags then in cartons then on plywood pallets or as per customers'requirement.
Technical Parameters
| Size | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | L12 |
| 1/8" | 16 | 18 | 16 | 17 | 25 | 22 | 18 | 17 | 13 | |||
| 1/4" | 19 | 19 | 19 | 20 | 30 | 30 | 18 | 21 | 15 | 15 | 25 | 11 |
| 3/8" | 24 | 20 | 25 | 24 | 34 | 31 | 19 | 23 | 17 | 17 | 26 | 12 |
| 1/2" | 25.5 | 20 | 28 | 26 | 37 | 35 | 22 | 24 | 19 | 17.5 | 32 | 15 |
| 3/4" | 29.5 | 23 | 32 | 30 | 43 | 39 | 24 | 25 | 18 | 20.5 | 33 | 17 |
| 1" | 36 | 26 | 39 | 36 | 51 | 45 | 27 | 27 | 20.5 | 23.5 | 38 | 19 |
| 11/4" | 43.5 | 30 | 45 | 44 | 59 | 48 | 26 | 34.5 | 22 | 25.5 | 44 | 22 |
| 11/2" | 46.5 | 33 | 49 | 47 | 64 | 50 | 29.5 | 35.5 | 23 | 26.5 | 44 | 23 |
| 2" | 55.5 | 38 | 57 | 54 | 74 | 57 | 32 | 36 | 25.5 | 28 | 50 | 25 |
| 21/2" | 66 | 45 | 69 | 66 | 90 | 64 | 36.5 | 43 | 28.5 | 31 | 58 | 29 |
| 3" | 74 | 52 | / | 74 | 99 | 70 | 37.5 | 46.5 | 30.5 | 33 | 66 | 33 |
| 4" | 90 | 64 | / | 90 | 115 | 79 | 42 | 52 | 38.5 | 37 | 72 | 36 |
| SIZE | A1 | A2 | A3 | A4 | A5 |
| 1/8" | 31 | / | / | / | / |
| 1/4" | 34 | 53 | 38 | 38 | 52 |
| 3/8" | 39 | 57 | 38 | 38 | 50 |
| 1/2" | 36.5 | 50.5 | 44 | 44 | 55 |
| 3/4" | 42 | 57 | 46 | 46 | 62 |
| 1" | 45.5 | 63 | 48 | 48 | 65 |
| 11/4" | 52 | 70.5 | 53 | 53 | 74 |
| 11/2" | 55 | 74.5 | 63 | 63 | 86 |
| 2" | 61 | 83.5 | 69 | 69 | 92 |
| 21/2" | 70 | 96 | 87 | 87 | 115 |
| 3" | 78 | 106.4 | 89 | 89 | 123 |
| 4" | 90 |
| SIZE | B1 | B2 | B3 | B4 | B5 | SIZE | B1 | B2 | B3 | B4 | B5 | ||
| D1 | D2 | D1 | D2 | ||||||||||
| 1/8" | 1/8" | 7 | 1" | 1" | 11 | ||||||||
| 1/4" | 1/8" | 20 | 20 | 39 | 20 | 11/4" | 1/2" | 71 | 40 | ||||
| 1/4" | 1/4" | 8 | 11/4" | 3/4" | 36 | 41 | 75 | 40 | |||||
| 3/8" | 1/8" | 46 | 20 | 11/4" | 1" | 40 | 42 | 80 | 42 | ||||
| 3/8" | 1/4" | 23 | 23 | 46 | 23 | 11/4" | 11/4" | 11 | |||||
| 3/8" | 3/8" | 9 | 11/2" | 1" | 42 | 46 | |||||||
| 1/2" | 1/4" | 52 | 23 | 11/2" | 11/4" | 46 | 48 | 88 | 48 | ||||
| 1/2" | 3/8" | 26 | 26 | 52 | 26 | 2" | 1/2" | 12 | |||||
| 1/2" | 1/2" | 9 | 2" | 3/4" | 80 | 50 | |||||||
| 3/4" | 1/4" | 52 | 28 | 2" | 1" | 88 | 52 | ||||||
| 3/4" | 3/8" | 28 | 28 | 56 | 28 | 2" | 11/4" | 48 | 54 | 96 | 54 | ||
| 3/4" | 1/2" | 30 | 31 | 60 | 31 | 2" | 11/2" | 104 | 55 | ||||
| 3/4" | 3/4" | 10 | 2" | 2" | 14 | ||||||||
| 1" | 3/8" | 65 | 32 | 21/2" | 21/2" | 16 | |||||||
| 1" | 1/2" | 32 | 34 | 64 | 33 | 3" | 3" | 16 | |||||
| 1" | 3/4" | 35 | 36 | 70 | 35 | 4" | 4" | 20 | |||||
| SIZE | C1 | C2 | SIZE | C1 | C2 | ||
| D1 | D2 | D1 | D2 | ||||
| 1/8" | 11/4" | 1/8"-1" | 44 | 26 | |||
| 1/4" | 1/8" | 27 | 18 | 11/2" | 1/8"-11/4" | 48 | 28.5 |
| 3/8" | 1/8"-1/4" | 34 | 19 | 2" | 1/8"-11/2" | 56 | 32 |
| 1/2" | 1/8"-3/8" | 36 | 22 | 21/2" | 1/8"-2" | 62 | 36.5 |
| 3/4" | 1/8"-1/2" | 35 | 24 | 3" | 1/8"-21/2" | 67 | 37.5 |
| 1" | 1/8"-3/4" | 40 | 27 | 4" | 1/8"-3" | 76 | 42 |
