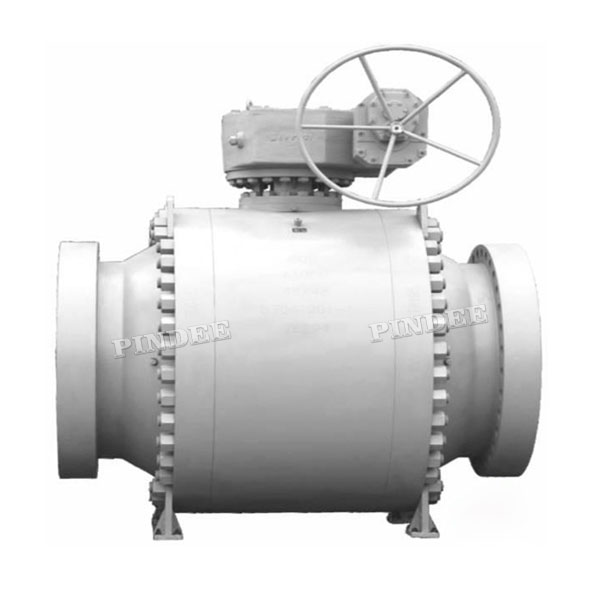

Ball Valve Full Bore Trunnion 48Inch 600LB WCB

API6D Full Bore Trunnion Mounted Ball Valve, 48Inch, 600LB, WCB, F316+PEEK, Gear Box

Size Range: 2Inch ~ 60Inch (DN50 ~ DN1000)
Pressure Range: 150LB ~ 2500LB (PN16 ~ PN420)
Material Range: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Construction: BB/Full Weld, Side/Top Entry, 1/2/ 3Pcs
Bore: Full Bore, Reduce Bore
End Connection: BW, Flange
Seat: Soft Seat, Metal Seat, PMSS Seat
Working Temp.: -196°C to +600°C

Availability:

Quantity:



Inquire

Product Description

Product Description

Feature:

API6D Full Bore Trunnion Mounted Ball Valve, 48Inch, 600LB, WCB, F316+PEEK, Gear Box

Size Range: 2Inch ~ 60Inch (DN50 ~ DN1000)
Pressure Range: 150LB ~ 2500LB (PN16 ~ PN420)
Material Range: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Construction: BB/Full Weld, Side/Top Entry, 1/2/ 3Pcs
Bore: Full Bore, Reduce Bore
End Connection: BW, Flange
Seat: Soft Seat, Metal Seat, PMSS Seat
Working Temp.: -196°C to +600°C

Key Specification

Type	Ball Valve
Size	48Inch
Pressure	600LB
Construction	3pcs, Full Bore, Trunnion, Bolt Bonnet, DBB, Doule Position Design
Connection	RTJ End
Body/Bonnet Material	A105
Ball Material	A182 F316
Stem Material	XM-19
Seat Material	A182 F316+PEEK
Bolt/Nut	B7/2H Zn
Design Standard	API6D
Face to Face Dimension	ASME B16.10
End Connection	ASMEB 16.5
Fire Safe Design	API607
Inspection & Test Std.	API598
Temperature Range	-29℃~+538℃
Medium	Oil, Water, Gas
