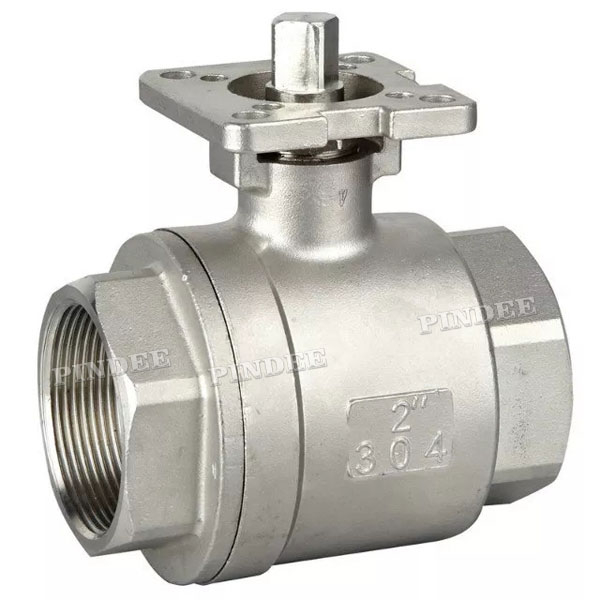

DIN 2PC Ball Valve

1000PSI/PN63
Full Port
Investment Casting
Blow-out Proof Stem
Locking Device Handle(Option)
PED97/23/EC Approved
Casting Approved AD2000-W0
Thread:ASME B1.20.1,BS21,DIN2999/259
ISO228-1,JIS B 0203,ISO7/1
Inspection Testing:API598,EN12266
Availability:
Quantity:
Inquire

Product Description

Technical Data:

1000PSI/PN63, Full Port, Investment Casting, Blow-out Proof Stem, Locking Device Handle(Option)

PED97/23/EC Approved

Casting Approved AD2000-W0

Thread:ASME B1.20.1,BS21,DIN2999/259

ISO228-1,JIS B 0203,ISO7/1

Inspection Testing:API598,EN12266


Technical parameters:

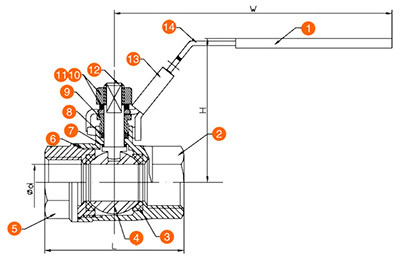

2PC-stainless-steel-ball-valve-with-locking-device drawing1

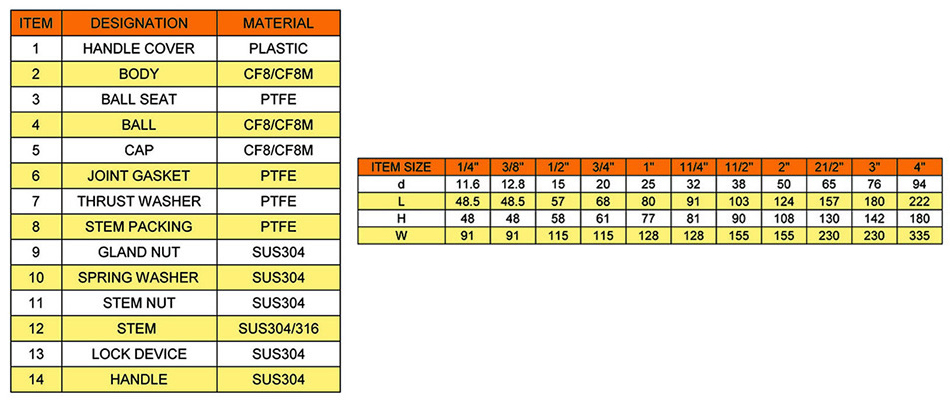

2PC-stainless-steel-ball-valve-with-locking-device-drawing2

1PC-Stainless-Steel-Full-Bore-Two-Way-Ball-Valves-CF8M-1000-WOG-package (1)
