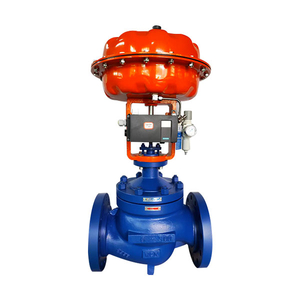

Flow Control Valve

Size:DN20-DN300
Pressure Rating:16bar, 25bar, 40bar
Material:Cast steel stainless steel
Application Medium:Steam water oil

Availability:

Quantity:



Inquire

Product Description

Product Description

Product Description:

The valve body is designed according to the principle of hydrodynamics, with equal cross-section and low flow resistance flow channel, and the rated flow coefficient is increased by 30℅

The adjustable range is large, the inherent adjustable ratio is 50, and the flow characteristics include straight line and equal percentage.

The electric double-seat regulating valve has small unbalanced force, good valve stability and large operating pressure difference.

The adjustable and cut-off type adopts a soft-sealed valve core, which reaches the level VI leakage standard (zero leakage).

The servo amplifier adopts deep dynamic negative feedback, which can improve the automatic adjustment accuracy.

There are many types of electric manipulators, which can be applied to 4~20mA.DC or 0~10mA.DC.

The electronic electric regulating valve can directly control the opening of the valve by the current signal, without the need of a servo amplifier.

The bellows sealing type regulating valve forms a complete seal on the moving valve stem to stop fluid leakage.

PINDEE Advantages

1.PINDEE patent products, patent certification

The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

2.The product has an independent identity to ensure traceability

Each Pindee product has its own unique identification number, to ensure product traceability.

3.Provide material inspection report

All pindee products can provide the material inspection report of the main parts.

4.One-stop service

One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

5.PINDEE has a lot of project experience

We have a lot of project experience in countries such as Pakistan and the Philippines, PINDEE has always been noticed all over the world, and trust comes from quality.

6. PINDEE has a strict quality control system

PINDEE has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

Quality Control Process

Standards&Features:

Valve trim features:

Double seat structure,sleeve guide balanced trim, split or integral standard cage

Body type:

Straight-through, angled,Z-shaped

Upper bonnet type:

Normal temperature type, high temperature heat dissipation type, extension type

Temperature range:

-100℃-560°℃

Stem Seal Type:

Standard Standard Packing Seal

High temperature type packing seal, bellows seal(optional)

Standard leak class:

CLASS IV(standard, metal seat)

Flow characteristics:

Equal percentage, straight line

Connection with pipelines:

Flange, butt welded

Adjustable ratio:

50:1

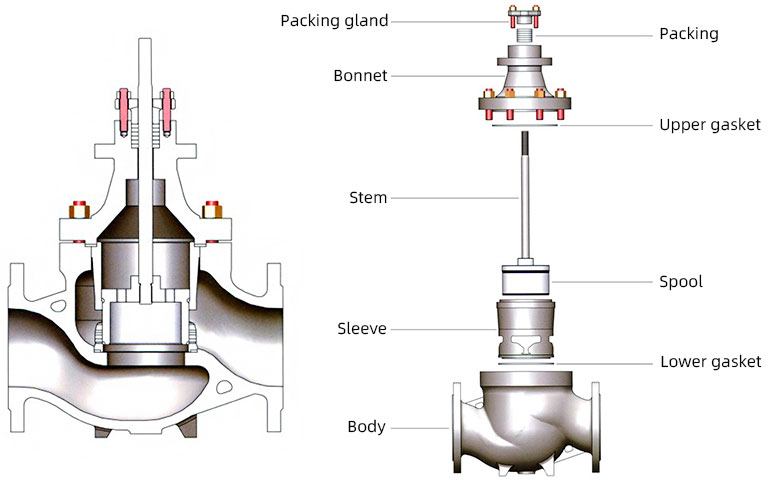

Cage-Guided-Sleeve-Globe-Control-Valve-4
