Product Description

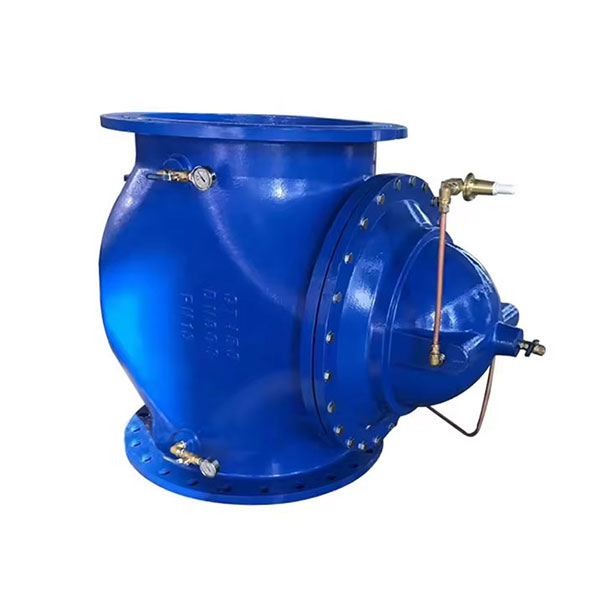

The most innovative design, the diaphragm type hydraulic control valve products that lead the trend of technology. Adjustable pressure reducing valve features sensitive, precise, stable pressure control, adjustable downstream pressure, constant flow pressure regardless of flow rate change or upstream pressure change, simple and reliable design, easy installation and maintenance.
| Product Name: | Hydraulic control valve |
| Material: | Ductile Iron Cast Iron |
| Size: | DN50-600 |
| Low Pressure Sealing Test: | 0.05 MPa |
| High Pressure Sealing Test: | 1.1xPN+0.1MPa |
| Shell Strength Test: | 1.5 *PN+0.1 MPa |
| Pressure Regulation Fluctuation: | +/-0.02Mpa |
| Product Design Standard: | CJT 219-2005 |
| Product Test Standard: | GB/T13927-2008 |
| Product Structure Length: | GB/T12221-2005 |
| Flange Connection Dimensions: | GB/T9113.1-2000 |
| Standard for Product Spraying: | GB15607-2008 |
