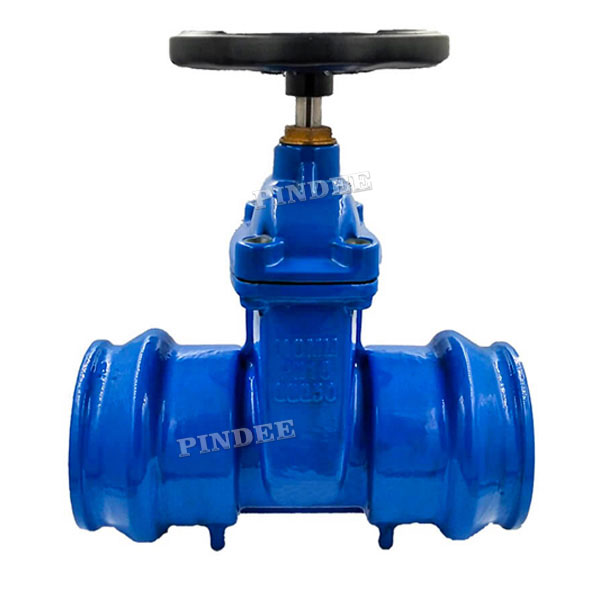

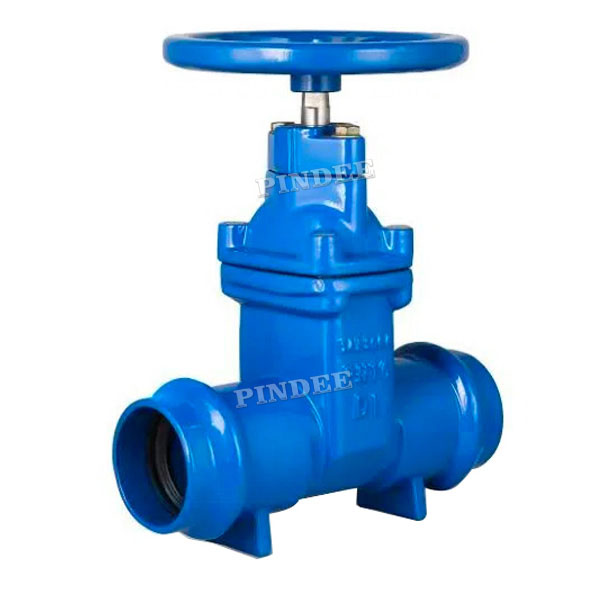

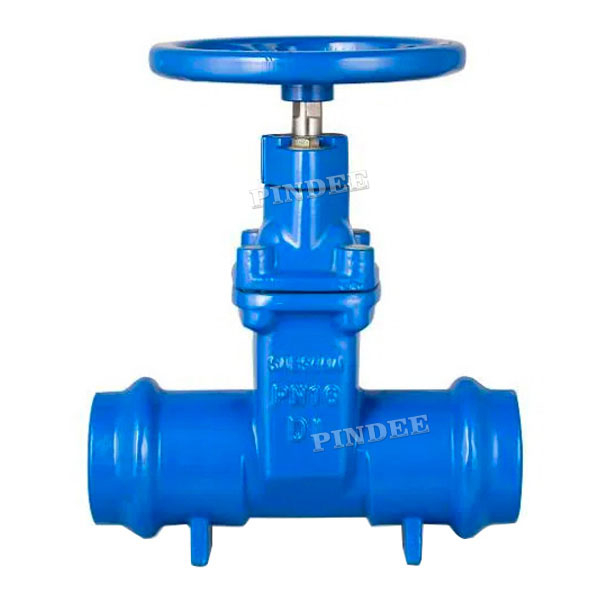

DIN F5 Socket Connection Soft Seal Gate Valve

DIN F5 Socket Connection Soft Seal Gate Valve is one of the the new product made by Pindee valve.

The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.Soft Seal Gate Valve

Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.

Stainless steel stem with rolled threads for high strength.

PN10 PN16 gate valve can replace stem seals under pressure.

Full bore.

Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.

Application:

DIN F5 are resilient seated gate valves, made of ductile iron, manufactured in accordance with severe product norms and relevant norms, and in conformity to EN ISO 9001;

Gate valve with socket ends for PVC pipes.

NRS Socket Gate Valve fully corrosion resistant construction.

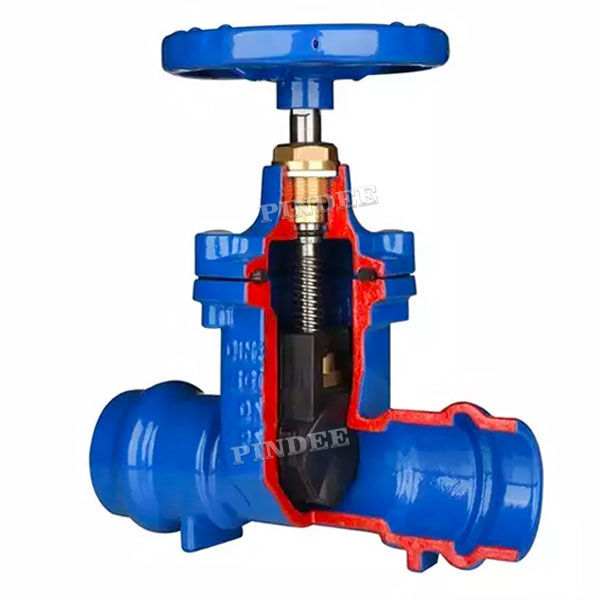

Ductile iron wedge, fully vulcanized with EPDM rubber.

O-ring stem seals replaceable under pressure.

The Socket Gate Valve wedge is constructed of ductile iron and provided with protective wedge guide covers.

The bolt holes and body-to-bonnet flange surfaces are fully epoxy coated.

Drinking water
Sewage
Seawater
Irrigation

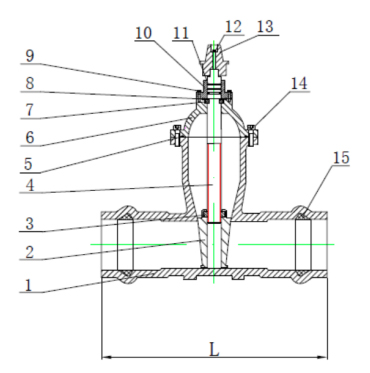

Technical parameters:
