Product Description

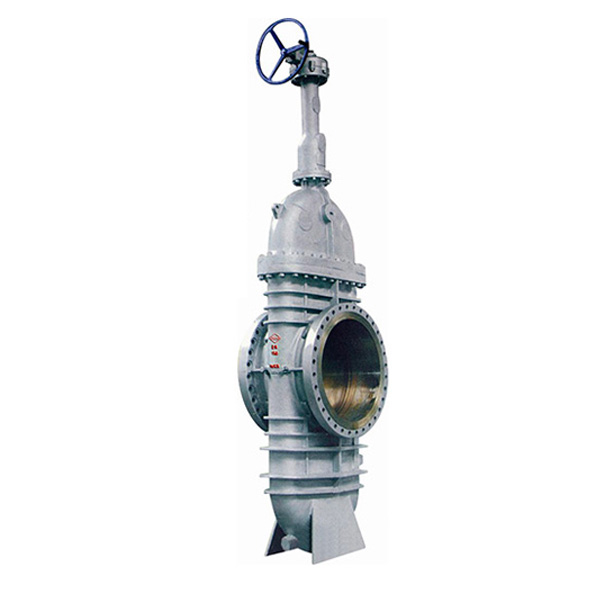

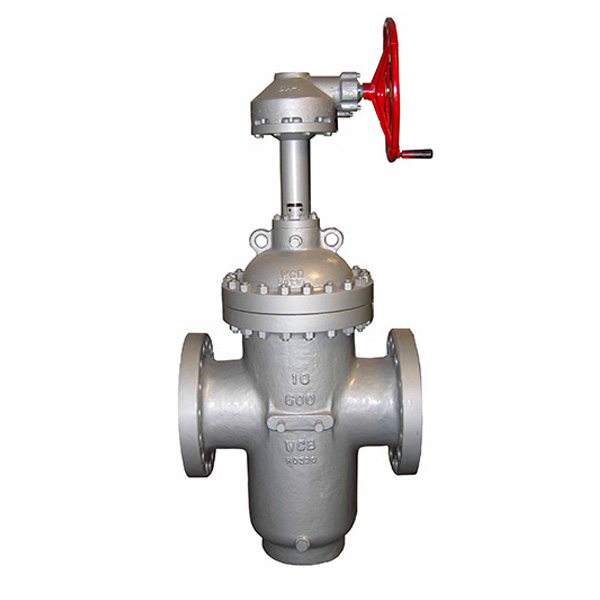

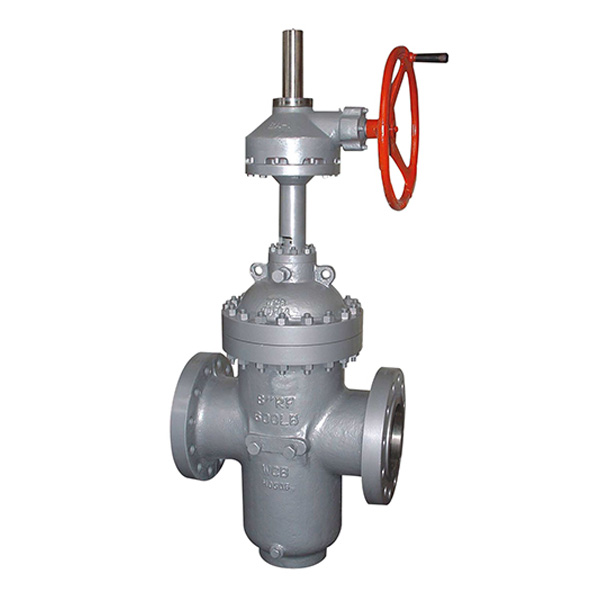

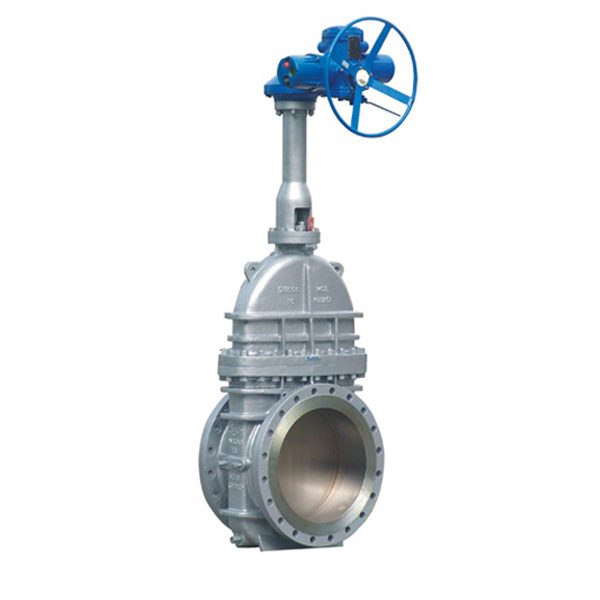

API Slab Gate Valve through conduit gate valves are designed, manufactured and test in accordance with API ANSI and ASME requirements.Pindee valve is one of API Slab Gate Valve supplier. High-quality, through-conduit, expanding gate valves engineered for performance in critical isolation applications where a tight mechanical seal that is normally unaffected by pressure variations and vibrations is needed.
Main Features:
The two sealing faces of a slab gate valve are perpendicular to the pipeline axis, its closing member is a single disc, valve equipped with a stretching mechanism. The gate valve is widely applicable for transmission pipeline system of natural gas 、oil products and chemical engineering.
From the aspect of structure style, the through conduit gate valve can be divided into two types of valves with diversion holes and valves without any diversion hole.
Design standard: | API 6D |
Length of structure: | API 6D |
Flange connecting end: | ASME B16.5/ASME B16.47 |
Butt welding connecting end: | ASME B16.25 |
Wall thickness: | ASME B16.34 |
Inspection and test: | API 6D |
Pressure and temperature rating: | ASME B16.34 |
Product scope: | NPS 2″~NPS 60″,CL150~CL1500 |
Main body material: | WCB, LCB, WCC, WC6, WC9, CF8, CF8M, CF3, CF3M, A890 4A etc. |
Operator | Handle, Bevel gear, Electric, Pneumatic, etc. |
