Product Description

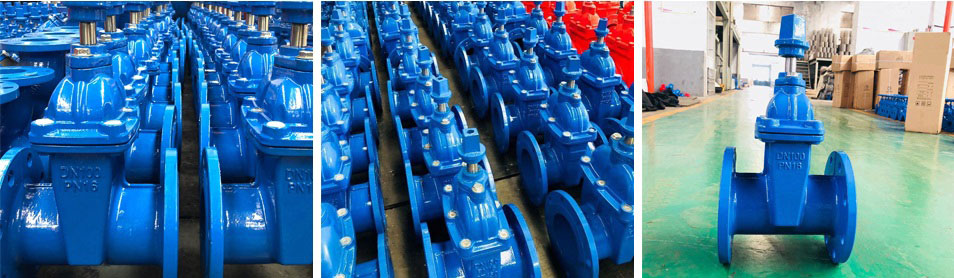

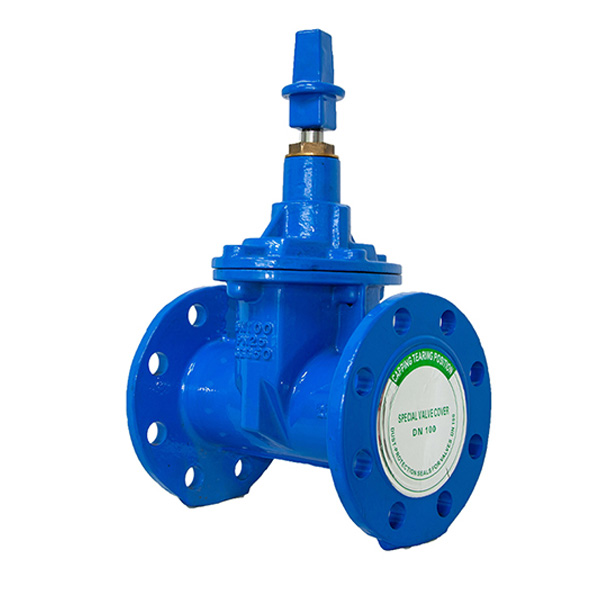

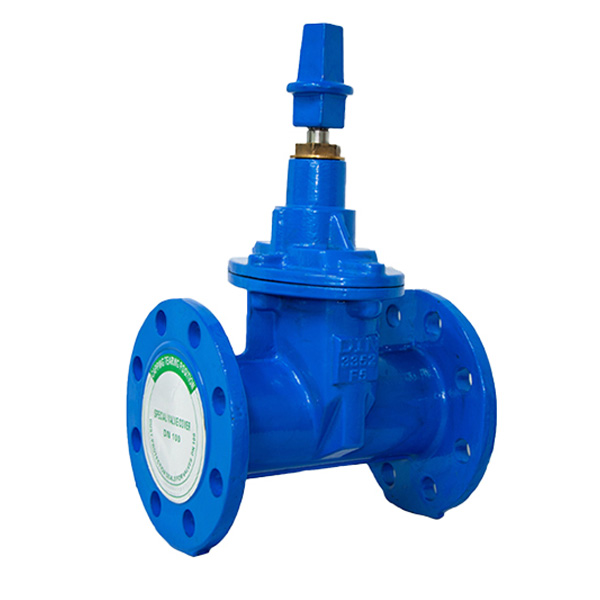

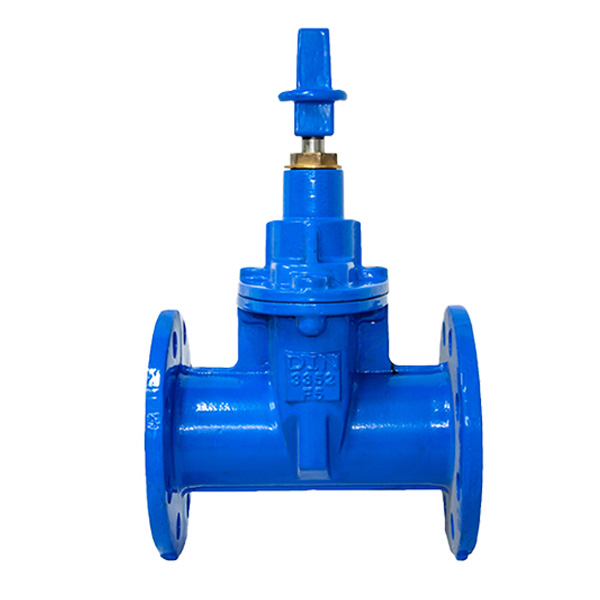

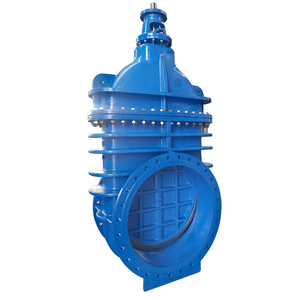

Underground cap soft seal gate valve is one new design product by PINDEE VALVE
Design standard | BS5163 |
Flange drilling standard | EN1092-2 PN10/PN16 |
Face to face standard | EN558-1 Series 15 |
Hydraulic test standard | EN12266 |
Seat:1.1*PN(in bar), Body:1.5*PN(in bar) |
Product Advantages
1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa，elongation is large than 10%，can not be broken easily when transport.
2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in sewage system.
3.The wedge is coated with EPDM, the EPDM proportion can reach 50%，steable and good resilient.
4. 3 O rings are used on 2Cr13 stem,can reduce friction，prevent leakage,can change sealing ring with stop water.
5.The stem use brass, operate easily,prevent block.
Material
Part | Material |
Body | Ductile Iron |
Disc | Ductile Iron +EPDM |
Stem nut | Bronze |
Shaft | 2Cr13 / SS431/ SS304 |
Technical parameters:
DN | LD | D | D1 | D2 | B | F |
50 | 178±2 | 165 | 125 | 99 | 19 | 3 |
65 | 190±2 | 185 | 145 | 118 | 19 | 3 |
80 | 203+2 | 200 | 160 | 132 | 19 | 3 |
100 | 229±2 | 220 | 180 | 156 | 19 | 3 |
125 | 254±3 | 250 | 210 | 184 | 19 | 3 |
150 | 267±3 | 285 | 240 | 210 | 19 | 3 |
200 | 292±3 | 340 | 295 | 265 | 20 | 3 |
250 | 330±3 | 405 | 355 | 319 | 22 | 3 |
300 | 356±3 | 460 | 410 | 370 | 22.4 | 4 |
