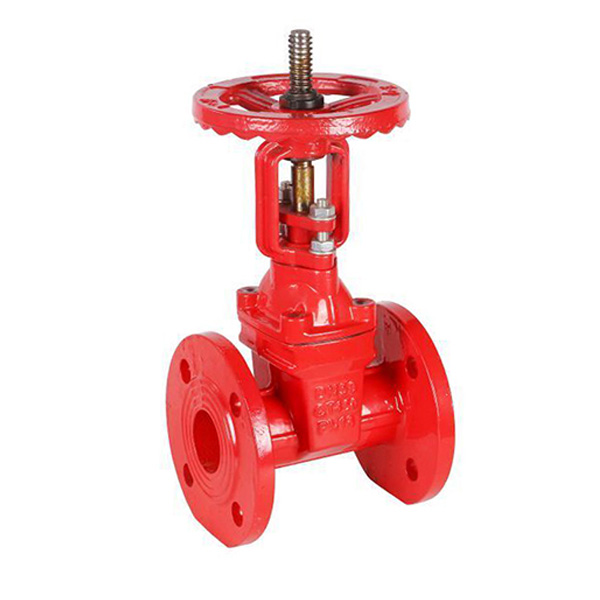

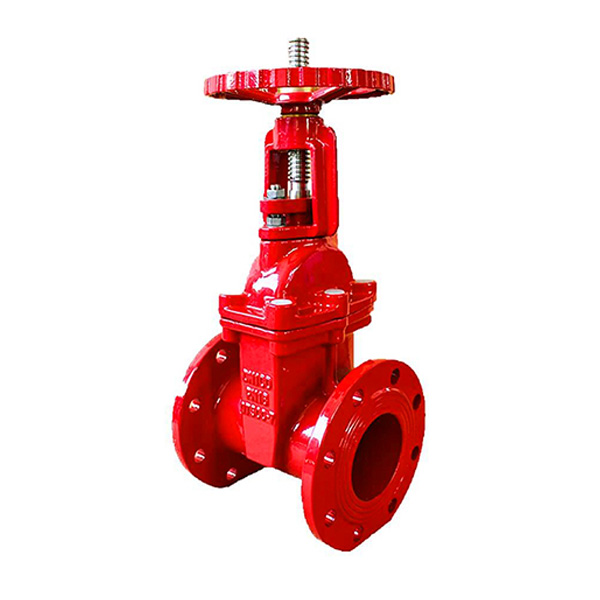

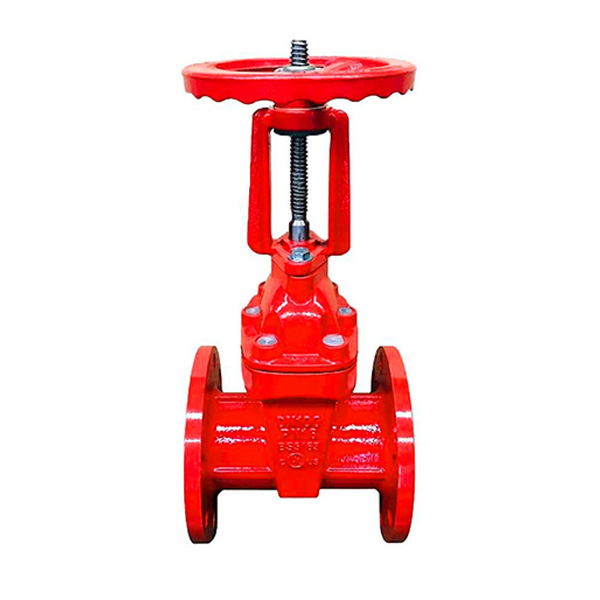

FM UL Gate Valve

200/300 PSI Fire Gate Valve
Pressure: 200PSI,300PSI
Temperature: 0-80 ℃
Medium: Water, gas etc.
Body material: GGG50 / 40
Connection: Flange
Availability:
Quantity:
Inquire

Product Description

FM UL Gate Valve is one of PINDEE VALVE new design valve

1.Design Standard:AWWA C515

2.Norminal Pressure :200PSI,300PSI

3.Flange Standard:ANSI B16.1 Class 125 or according to the customers requirements

4.Both inside and outside of the body need Epoxy Resin Coating.


Technical parameters:

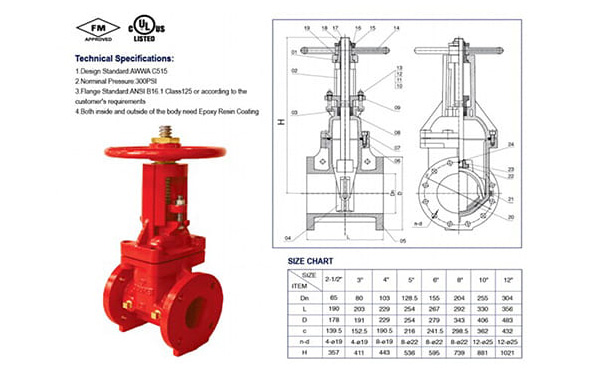

FM-UL-Gate-Valve-Drawing


DN L D c n-d H
2-1/2″ 190 178 139.5 4-19 357
3″ 203 191 152.5 4-19 411
4″ 229 229 190.5 8-19 443
5″ 254 254 216 8-22 536
6″ 267 279 241.5 8-22 595
8″ 292 343 298.5 8-22 739
10″ 330 406 362 12-25 881
12″ 356 483 432 12-25 1021
