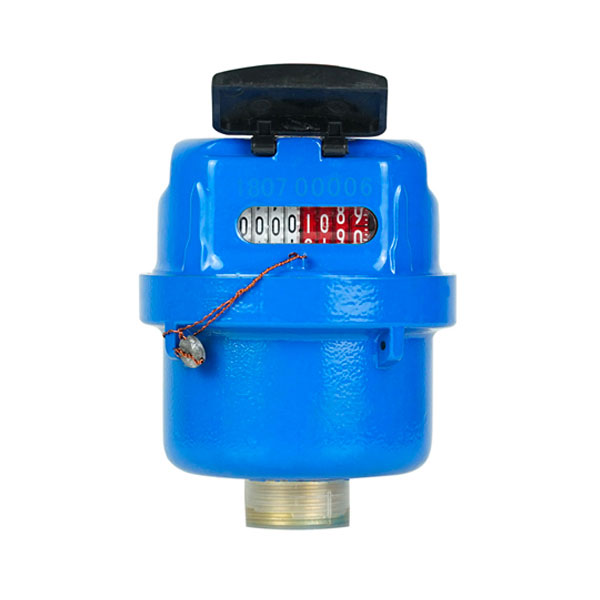

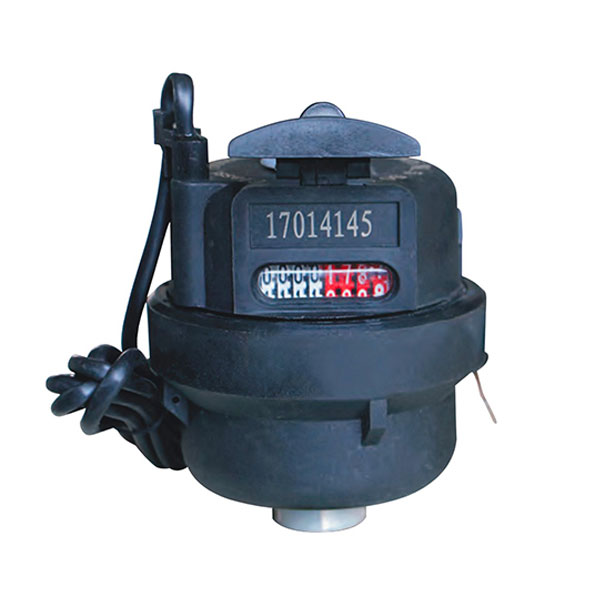

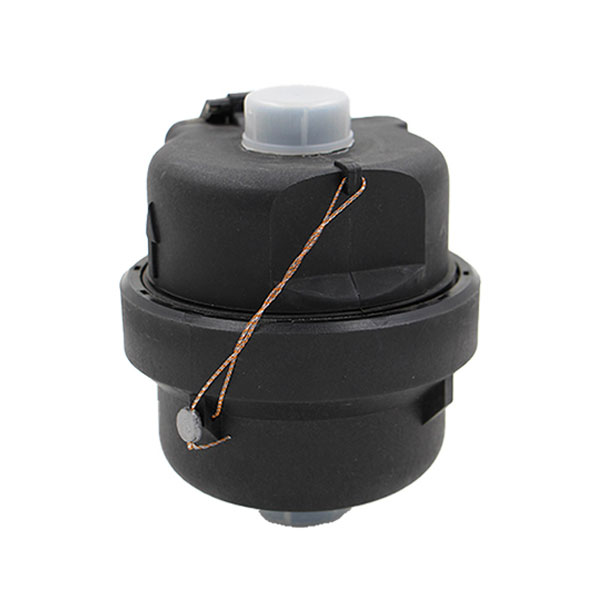

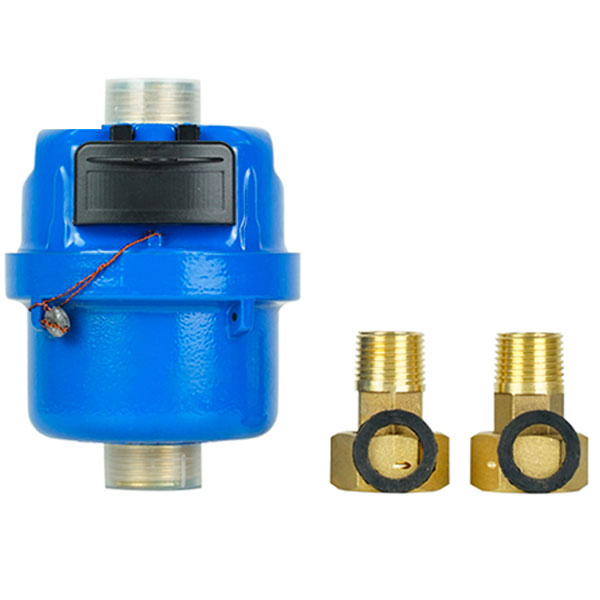

Plastic water meter

Standards&Features:

Features

--Low start-up flow rate.

--volumetric rotary piston principle of measurement.

--LXHY-15~20 is no location limitation for installation.

--Accuracy is not to be affected wherever installed at horizontal, vertical or inclined pipeline.

--Register is sealed with a special liquid to keep a clear reading in long term service.

--Mechanism uses high-quality material to ensure a stable characteristic.

--Accurate measurement with conformity to lSO

--4064 class C.

--On request, the series can be equipped with a kind of remote transmission device.

Application

Measuring the volume of cold portable water passing through the pipeline. Also suitable for pure water.

Optional Features

--Register sealed type: Dry type; Semi-dry type; Super-dry type.

--Accuracy: R=80; 100;125;160.

--Size: 15~50mm.

--Cold / hot water.

--Non return valve.

--Reed switch option.

--Several lengths and connections available on request.

--Thread end type: BSP/NPT.

Working Conditions

--The Max. Admissible water pressure 1.6MPa.

--Resisting water temperature: 50℃.

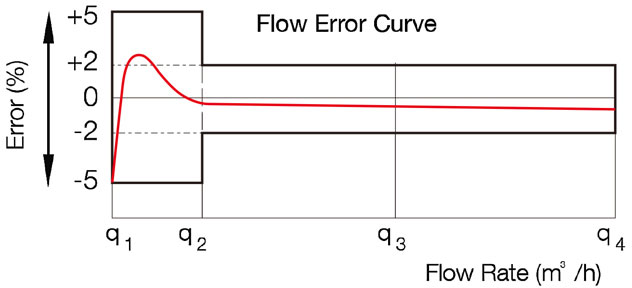

Maximum Permissible Error

Note

--Body material: Brass body / Plastic body.

--Size: Plastic body: DN15-20; Brass body: DN15-50.

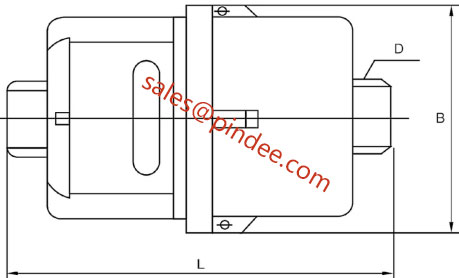

Meter Size (mm)	L	L1	B	H	Connecting Thread	KG
15	260	165	101	106	R1/2	0.78
20	260	195	101	106	R3/4	0.85
25	350	225	103	115	R1	1.2
