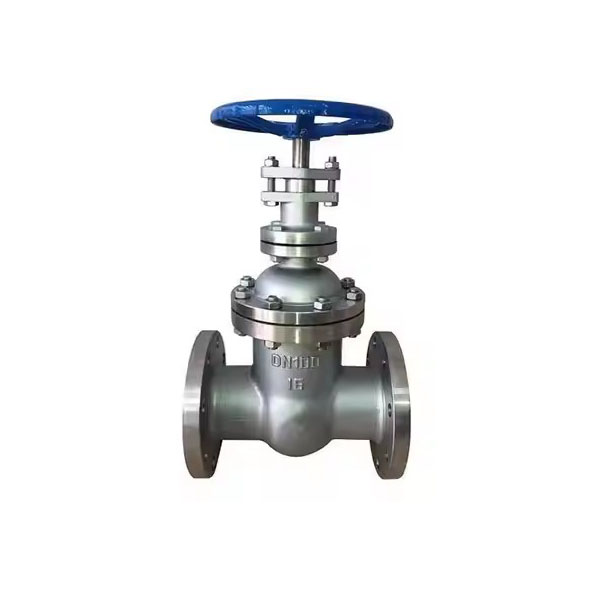

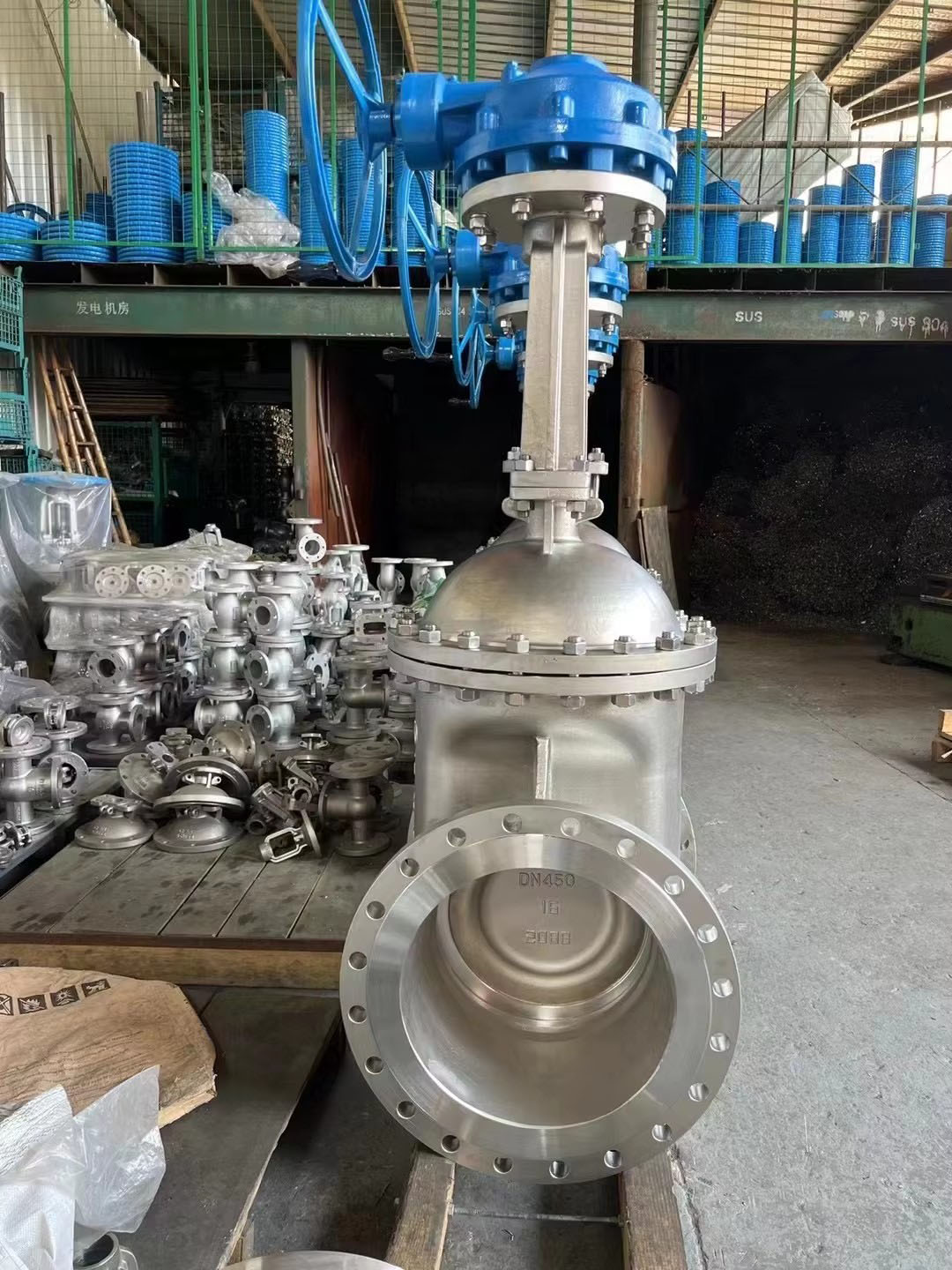

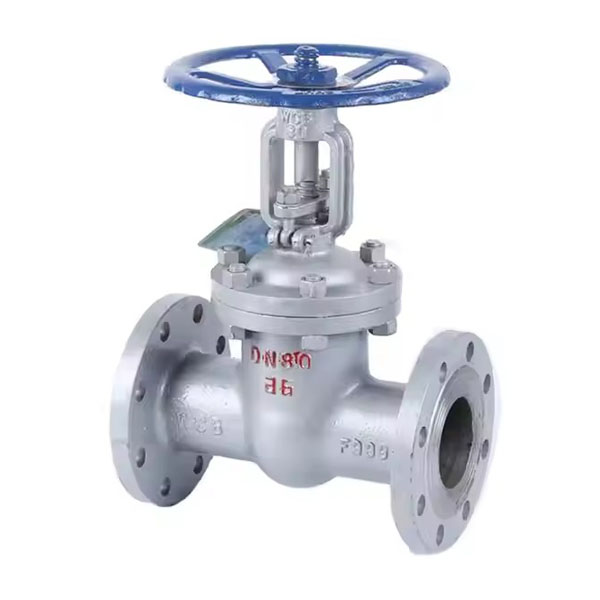

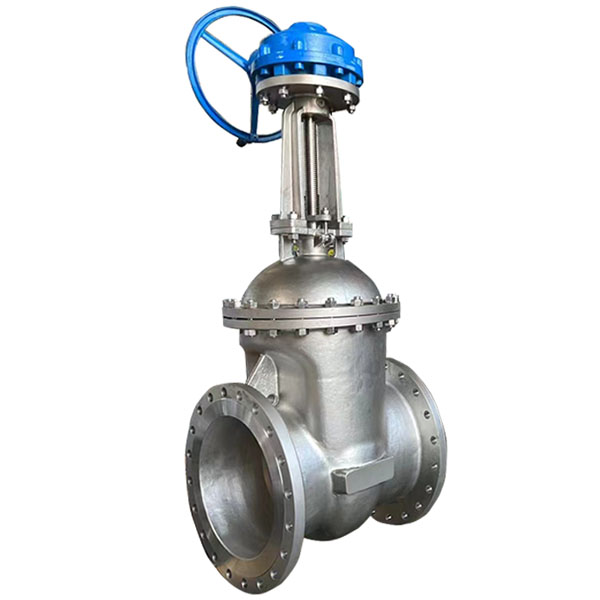

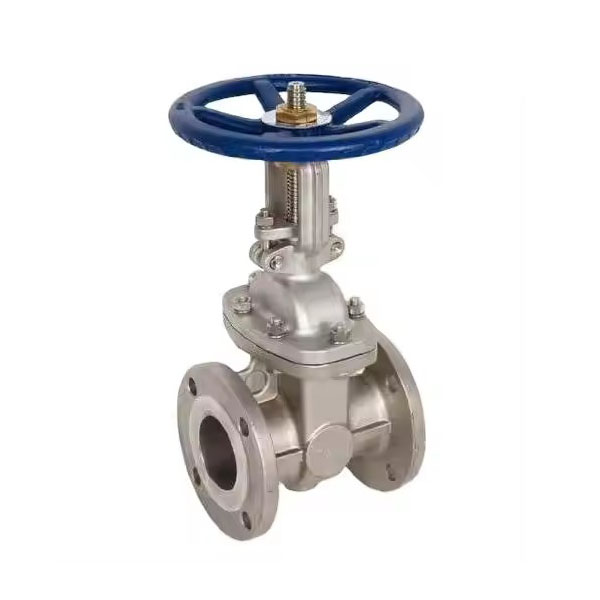

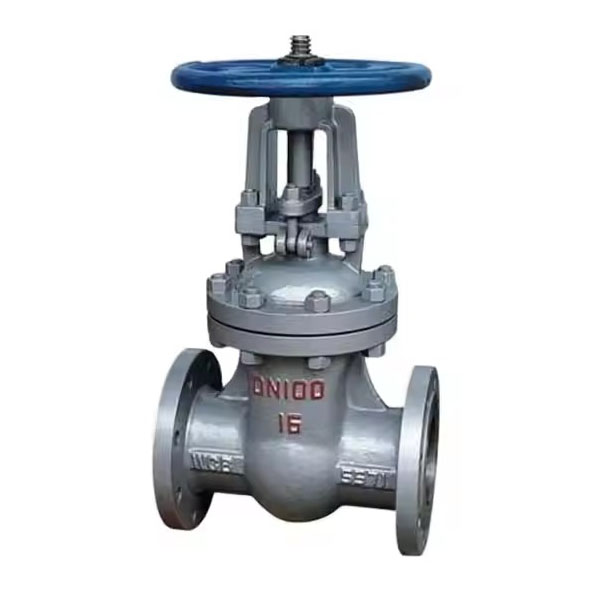

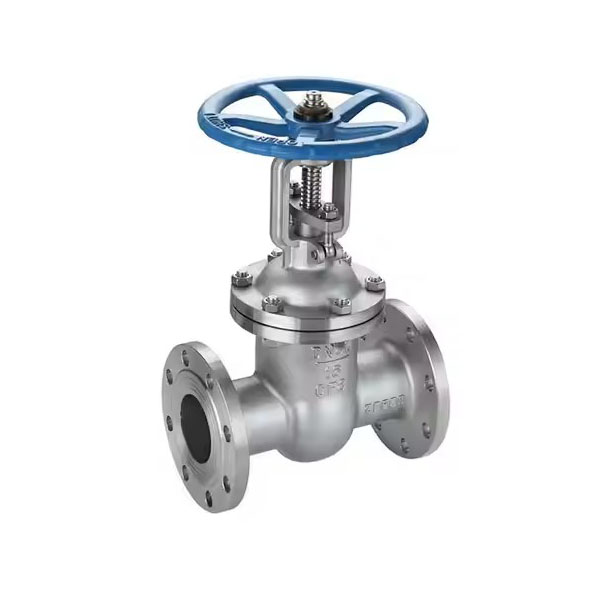

ANSI Cast Steel Gate Valve

Inside Nominal Diameter: 2"-24" DN50-600
Nominal Pressure: 150LB,300LB,600LB,900LB
Applicable temperature: ≤425℃
Applicable media: Water .Oil .Gas
Body material : Cast steel, Stainless Steel
Connecting type : Flange

Availability:

Quantity:



Inquire

Product Description

Product Description

Pindee valve is one kind of equipment which can be widely used on oil and steam pipelines in petrochemical plant and coal-fired power plants to connect or truncate the medium in pipelines. Only used for full turn on or full turn off. This valve has the advantage of compact structure，reasonable design,good rigidity,smooth channel and small flow resistance coefficient.double sealing surface were made to wedge type.

Product Feature & Advantage:

1.small flow resistance .ANSI Cast Steel Gate Valve under the way inside valve is direct through,the media can easily through the inside way, flow resistance are small.
2,operate portably and flexibly,compare with globe valve ,the way of Disc move is Vertical with media whether open or close.

3.it is take a long time to open or close because long stem since Pinde valve is ANSI Cast Steel Gate Valve Manufacture.

4.Water hammer phenomenon will nor happen because it cost long time to open and close.

5.The medium can flow in any direction on both sides, and is easy to install. China ANSI Cast Steel Gate Valve and Gate valves are symmetrical on both sides of the channel.

Application area:

They are widely used in architectonics,edibles,medicine,chemical,energy,applying and draining

Technical parameters:

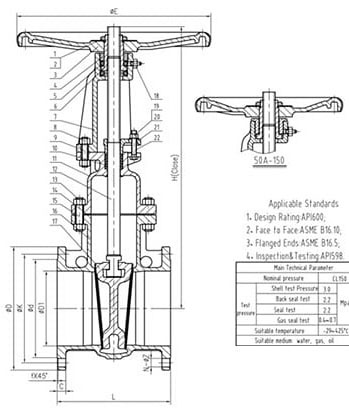

ANSI Cast Steel Gate Valve Drawing

DN		SIZE（mm）
DN		d	L	LJ	D	D1	D2	b	Z-d	W
mm	in	d	L	LJ	D	D1	D2	b	Z-d	W
Class150
PN2.0MPa
25	1	25	127	140	108	79.5	51	11.5	4–15	120
32	1 1/4	32	140	153	117	89	64	13	4–15	140
40	1 1/2	38	165	178	127	98.5	73	14.5	4–15	180
50	2	51	178	191	152	120.5	92	16	4–19	180
65	2 1/2	64	190	203	178	139.5	105	17.5	4–19	200
80	3	76	203	216	190	152.5	127	19.5	4–19	200
100	4	102	229	242	229	190.5	157	24	8–19	250
125	5	127	254	267	254	216	186	24	8–22	250
150	6	152	267	280	279	241.5	216	25.5	8–22	300
200	8	203	292	305	343	298.5	270	29	8–22	300
250	10	254	330	343	406	362	324	30.5	12–25	350
300	12	305	356	369	483	432	381	32	12–25	400
350	14	337	381	394	533	476	413	35	12–29	400
400	16	387	406	419	597	540	470	37	16-29	500
450	18	438	432	445	635	578	533	40	16-32	500
500	20	489	457	470	699	635	584	43	20-32	600
600	24	591	508	521	813	749.5	692	48	20-32	650
Class300
PN5.0MPa
25	1	25	165	178	124	89	51	17.5	4–19	140
32	1 1/4	32	178	191	133	98.5	64	19.5	4–19	180
40	1 1/2	38	190	203	156	114.5	73	21	4-22	200
50	2	51	216	232	165	127	92	22.5	8–19	200
65	2 1/2	64	241	257	190	149	105	25.5	8–22	250
80	3	76	283	299	210	168.5	127	29	8–22	300
100	4	102	305	321	254	200	157	32	8–22	300
125	5	127	381	397	279	235	186	35	8–22	350
150	6	152	403	419	318	270	216	37	12–22	350
200	8	203	419	435	381	330	270	41.5	12–25	400
250	10	254	457	473	445	387.5	324	48	16-29	450
300	12	305	502	518	521	451	381	51	16-32	500
Class600
PN10.0MPa
25	1	25	216	216	124	89	51	17.5	4–19	180
32	1 1/4	32	229	229	133	98.5	64	21	4–19	180
40	1 1/2	38	241	241	156	114.5	73	22.5	4–22	200
50	2	51	292	295	165	127	92	25.5	8–19	250
65	2 1/2	64	330	333	190	149	105	29	8–22	250
80	3	76	356	359	210	168.5	127	32	8–22	300
100	4	102	432	435	273	216	157	38.5	8–25	300
125	5	127	508	511	330	266.5	186	44.5	8–29	350
150	6	152	559	562	356	292	216	48	12–29	400
