Product Description

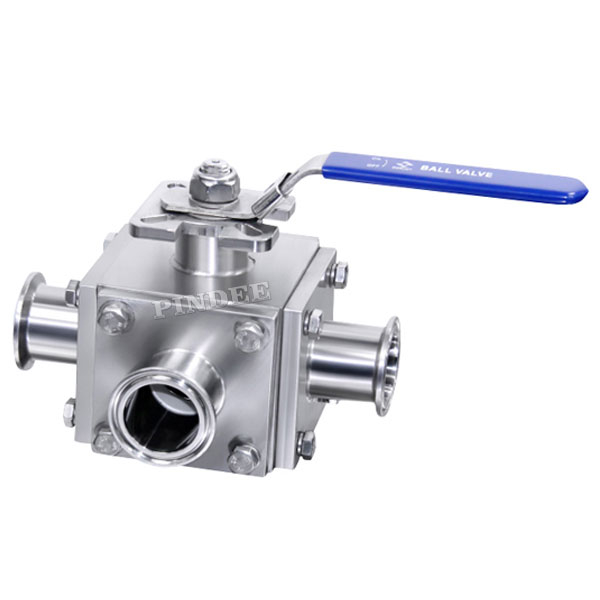

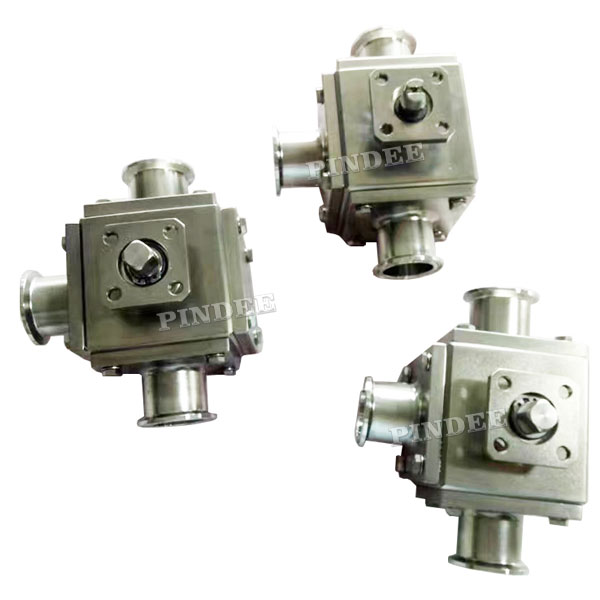

Sanitary 3-way ball valve with Encapsulated PTFE seat, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquid
| Body Material | AISI 304 or 316L (1.4301 / 1.4404) |
| Seat: | Encapsulated Teflon (PTFE) |
| 3-way Ball gate type | T type or L typ |

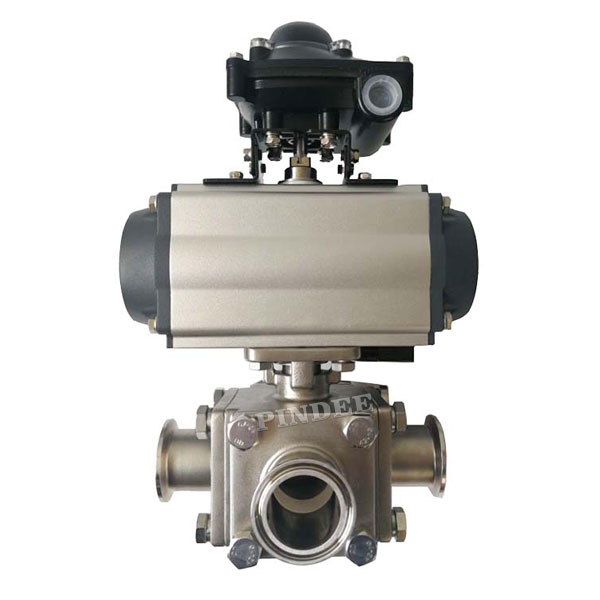

| Operation: | Manual Locked Handle,Pneumatic Actuator |
| Working Temperature | -4 ~ 302°F (-20 ~ 150°C) |
Design Features
Fully encapsulated ball core by Teflon (PTFE).
No stranded residue, super clean, meet the requirement of CIP and SIP for sterilization/cleaning.
The highest pressure can reach 435psi (30 bar), heat resistance of 356°F (180°C).
Precision stainless steel balls reduce torque and friction losses while extending seat life.
