Sanitary Heavy Weight Butt Weld Non Return Check Valves with Union Screw

Standard: SMS, 3A, DIN, IDF, RJT
Size: DN15- DN250, 1" -10"
Material: Stainless Stainless Steel 304/ 316L
Ends: Threaded, Welded, Clamped
Gasket Material: EPDM, NBR, FPM
Operation: Manual, Elecctric Actuator, Pneumatic Actuator
Working Pressure: ≤1.0Mpa
Sanitary Valves are widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.As a professsional Sanitary Valves manufacture, we can supply many kinds of sanitary valves,such as threaded butterfly valves, quick-install (clamped)butterfly valve, welded butterfly valve and pneumatic butterfly valve.

Availability:

Quantity:



Inquire

Product Description

Product Description

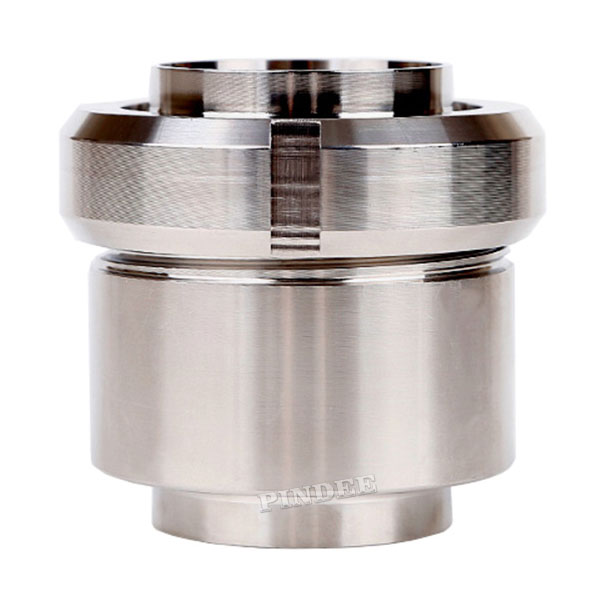

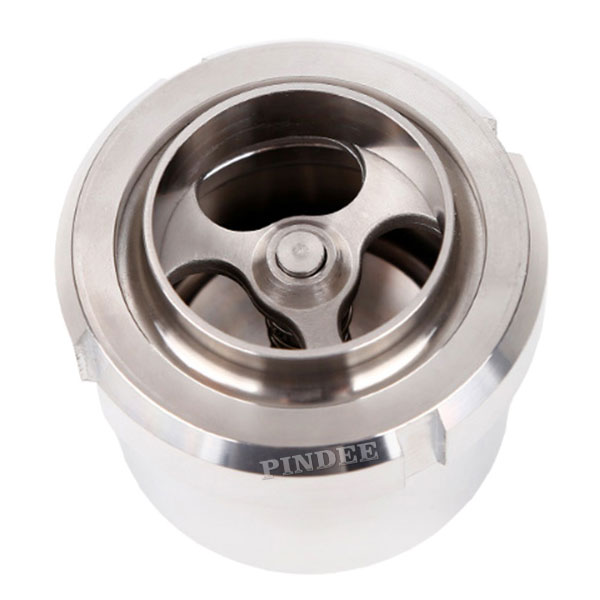

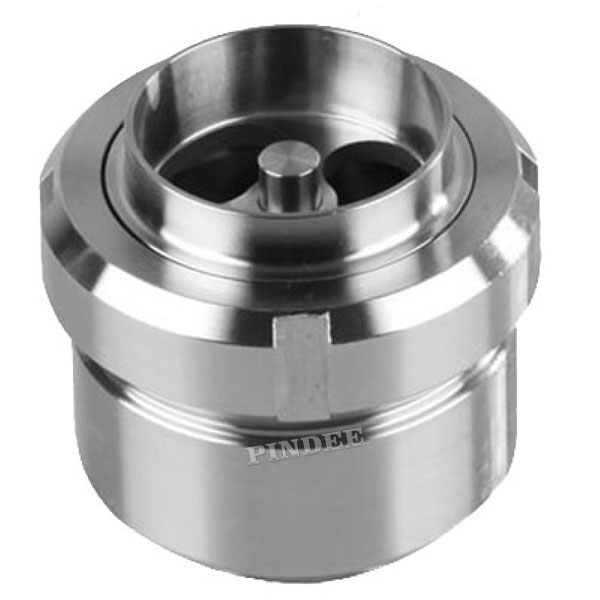

Sanitary Heavy Weight Butt Weld Non Return Check Valves with Union Screw

The Valve body and seat aretightly connected with round nut.Quick,easy assembling and disassembling.The Sanitary Heavy Weight Butt Weld Non Return Check Valves with Union Screw is snstalled on a vertical pipeline to prevent fluids from flowing backwards

Features:

Body and shaft:SS304 and SS316L,AISI304&AISI316

Fully precision machined by CNC machine.Suface finish Ra<0.6μm

Connection: clamp end, weld end, male end and liner/nut

Norms:3A,SMS,DIN11851.ISO/IDF

Size:1/2″ to 4″ (DN15-DN100).

Seal:EPDM.Silicone,FPM/Vtion

Working temperature: -10℃-120℃ (EPDM)

Max. working pressure: 10 bar(145PSI)

Opening pressure: 0.3 bar (DN-25), 0.2 bar (DN-32/40), 0.1 bar (DN-50/100)
