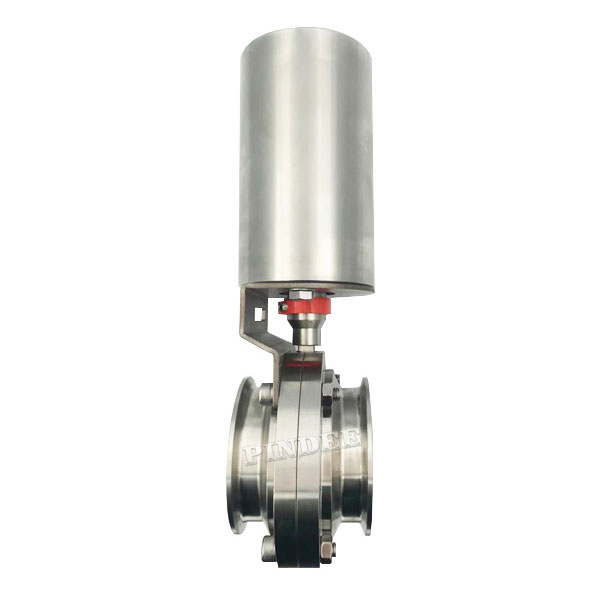

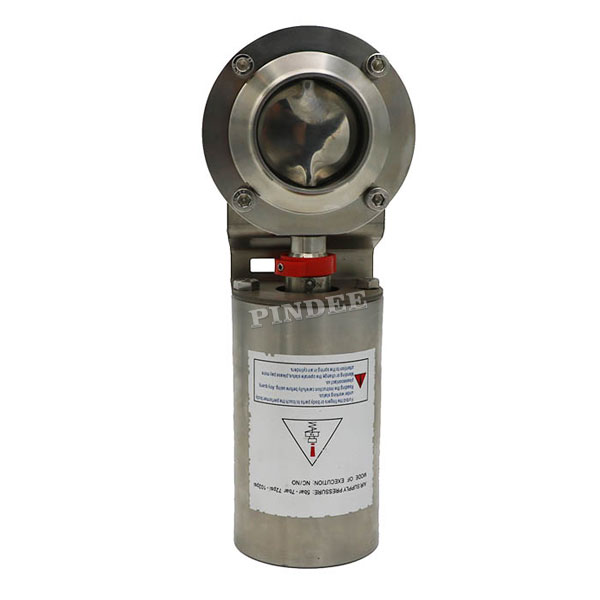

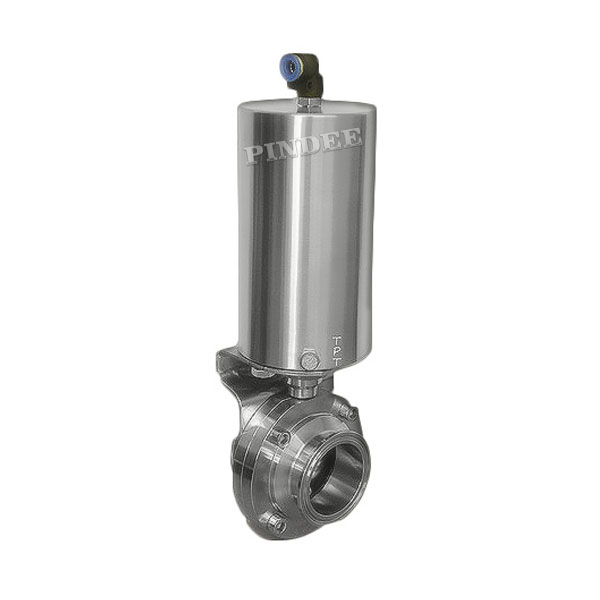

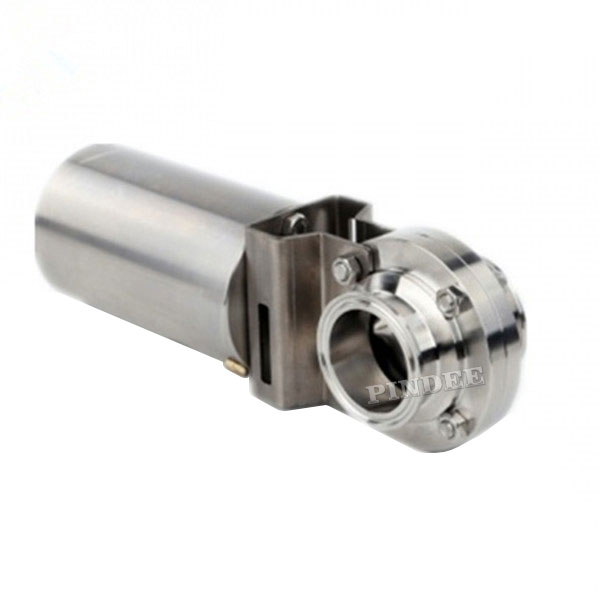

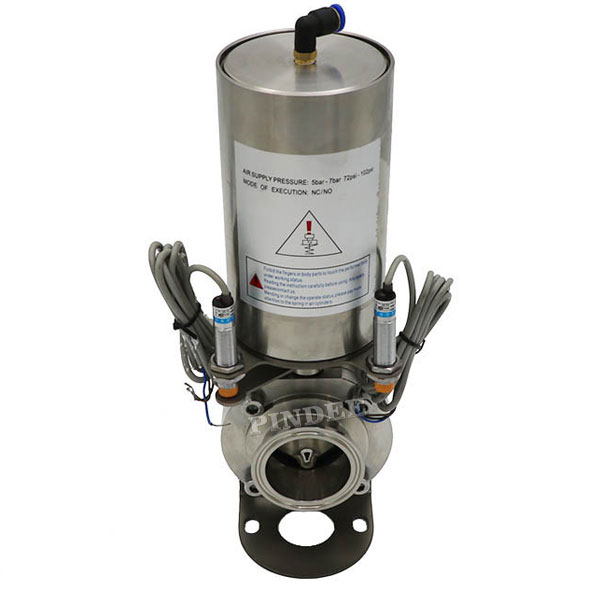

Pneumatic Clamped butterfly valve with stainless steel actuator

Standard: SMS, 3A, DIN, IDF, RJT
Size: DN15- DN250, 1" -10"
Material: Stainless Stainless Steel 304/ 316L
Ends: Threaded, Welded, Clamped
Gasket Material: EPDM, NBR, FPM
Operation: Manual, Elecctric Actuator, Pneumatic Actuator
Working Pressure: ≤1.0Mpa
Sanitary Valves are widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.As a professsional Sanitary Valves manufacture, we can supply many kinds of sanitary valves,such as threaded butterfly valves, quick-install (clamped)butterfly valve, welded butterfly valve and pneumatic butterfly valve.

Availability:

Quantity:



Inquire

Product Description

Product Description

Stainless steel Actuator can be with or without C-top
Normally open(NO), normally closed(NC), Air/Air(A/A)
Size : 1/2″ – 6″
Body Materials: Stainless Steel 304 or 316L/1.4301,1.4404
Seat Materials: Silicone ,EPDM,VITON,NBR
Max.pressure：10 bar (DN-25/100),8 bar (DN-125/150)
Min.pressure：0.2 bar
Operating temperature：-10℃ to–120℃ （EPDM)
Air connection: R1/8”
Manual handle, pneumatic actuator and electric actuator can be exchangeable with each other
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

Types:

Pneumatic Sanitary Butt Weld Butterfly Valve

Pneumatic Sanitary Tri-Clamp Butterfly Valve

Pneumatic Sanitary Thread Butterfly Valve

Pneumatic Sanitary Flanged Butterfly Valve

Sanitary Intelligent Pneumatic Butterfly Valve
