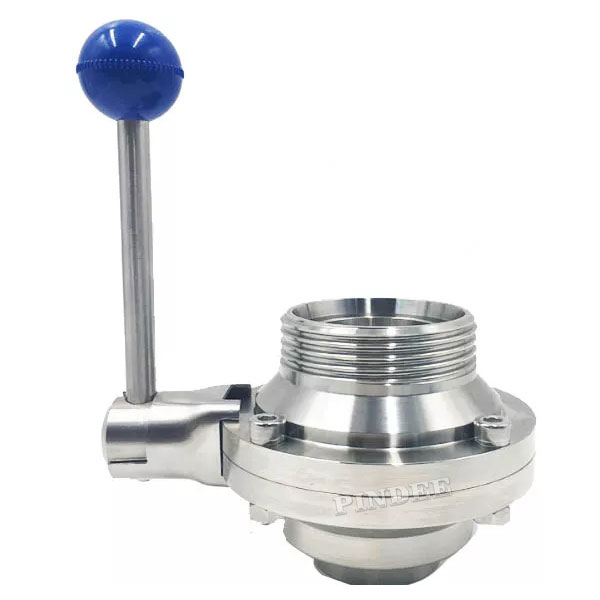

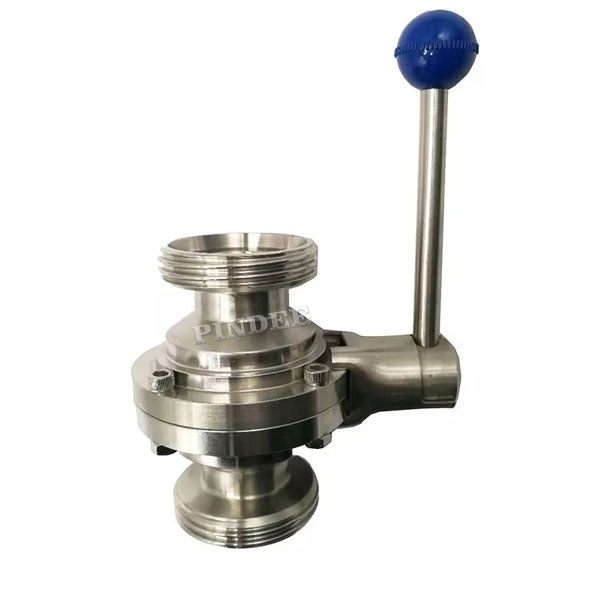

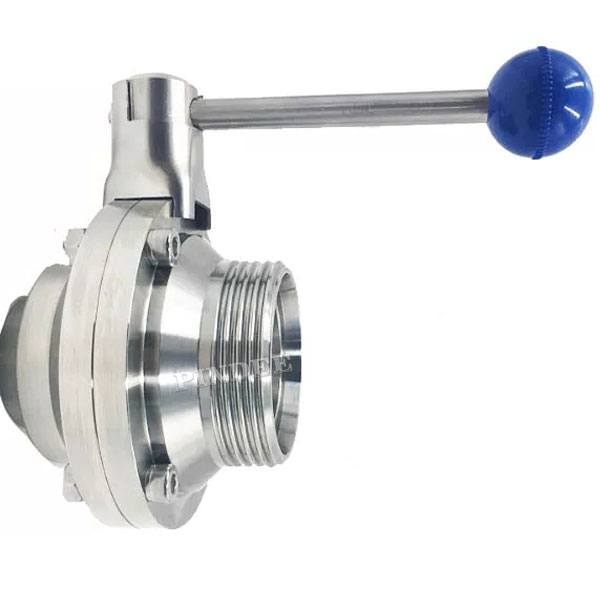

Sanitary Butterfly Type Ball Valve Threaded Ends

Standard: SMS, 3A, DIN, IDF, RJT
Size: DN15- DN250, 1" -10"
Material: Stainless Stainless Steel 304/ 316L
Ends: Threaded, Welded, Clamped
Gasket Material: EPDM, NBR, FPM
Operation: Manual, Elecctric Actuator, Pneumatic Actuator
Working Pressure: ≤1.0Mpa
Sanitary Valves are widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.As a professsional Sanitary Valves manufacture, we can supply many kinds of sanitary valves,such as threaded butterfly valves, quick-install (clamped)butterfly valve, welded butterfly valve and pneumatic butterfly valve.

Availability:

Quantity:



Inquire

Product Description

Product Description

Application	General, Food, Beverage, Chemicals, Pharma, Etc.
Power	Manual/Pneumatic
Size	DN15~DN100/1"~4"
Standard	3A/SMS/DIN/ISO/RJT
Body material	SS304/SS316L
Seat	EPDM/Silicone
Working Temperature	-10 to 120 ℃
Max pressure	10bar
Connection	welded/clamped/threaded/flanged

These are details for our sanitary butterfly type ball valvewith threaded ends. And we can also supply welded or clamped sanitary butterfly type ball valves.

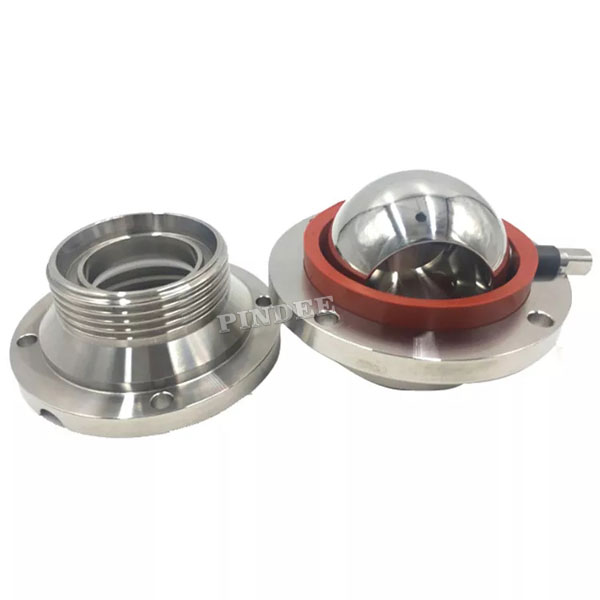

This butterfly type ball valve is suitable for transporting high viscosity materials, is widely used in food, beverage&processing, pharmaceutical, chemical fields. This butterfly type ball valve looks like a butterfly valve, but the part which is used to control the valve opening or closing is a ball. This butterfly type ball valve has a small volume, lightweight, and low torque. It's a good choice in the food, beverage, dairy, pharmaceutical industries and etc.

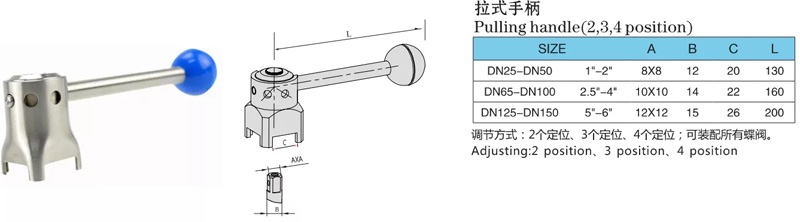

Sanitary-Butterfly-Type-Ball-Valve-Threaded-Ends8
