Product Description

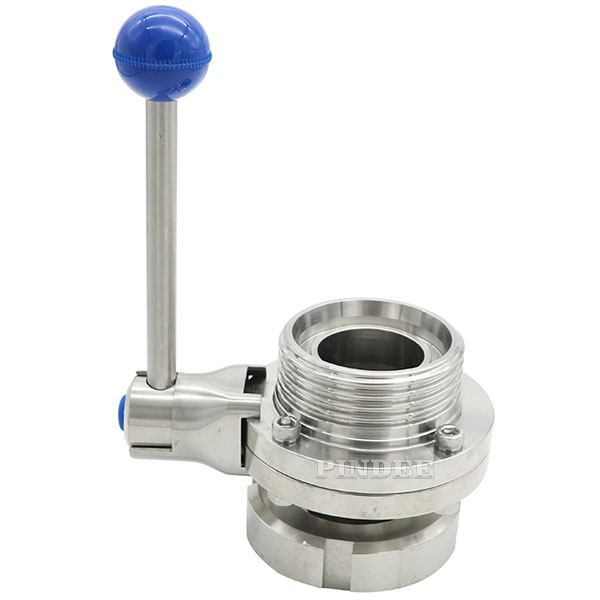

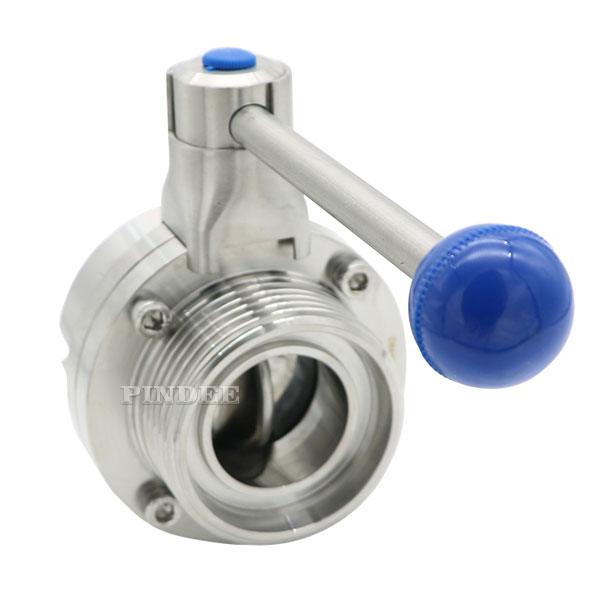

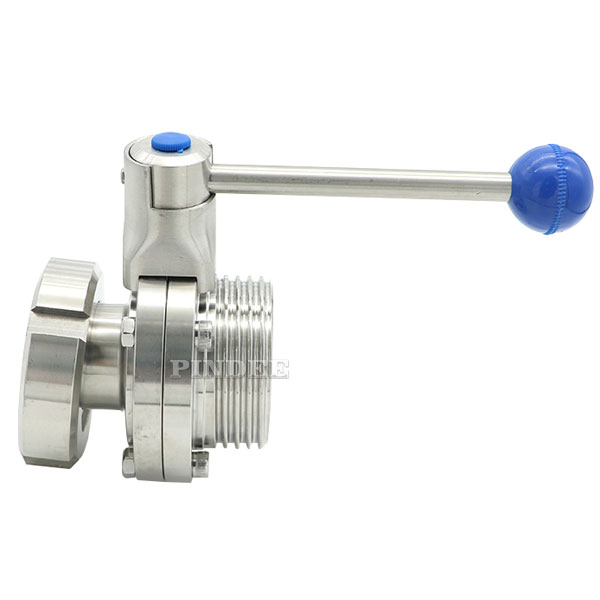

This butterfly valve has two connections. One side is threaded, and the other side is a nut.
| Power: | Manual |
| Media: | milk,beer,wine,food |
| Standard: | SMS/DIN/RJT |
| Body material: | SS304/SS316L |
| Working Temperature: | -10 to 120 ℃ |
| Max pressure: | 10bar |
| Size: | DN10-DN300, 1/2"-10" |
| Surface treatment: | CNC machine Ra<0.8um |
Handle:Fast action on flow control when the valve is opened by 15 to 70 degrees
| Pulling Handle | 2/3/4 position |
| Square Pull Handle | 2/3/4 position |
| Multi-position Plastic Handle | Adjustment 15°, 12 position |
| Stainless Steel trigger Handle | Adjustment 15°, 12 position |
Configurations of connection ends
Valve body can be interchangeable with any type of connection
Pindee Sanitary Butterfly valve manufacture
Packaging & Delivery
