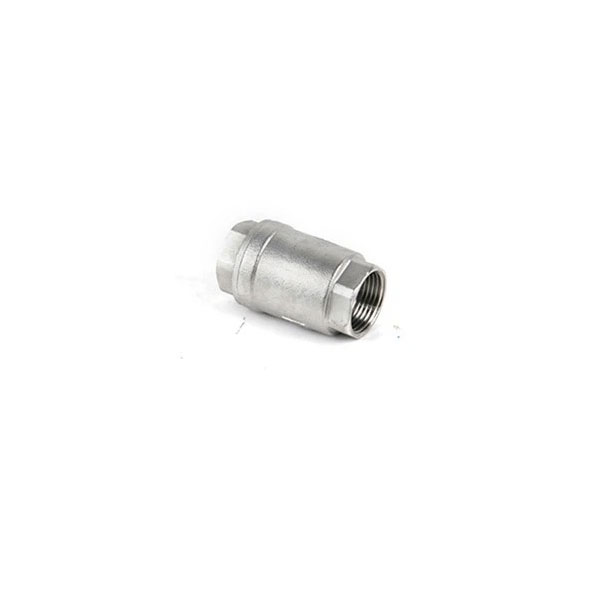

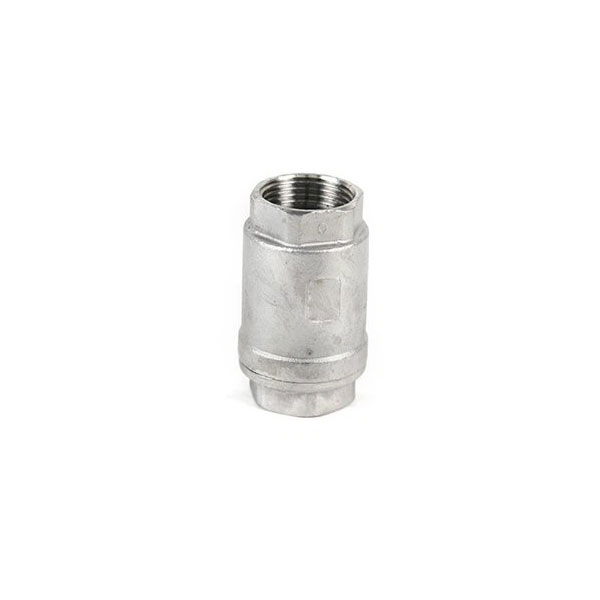

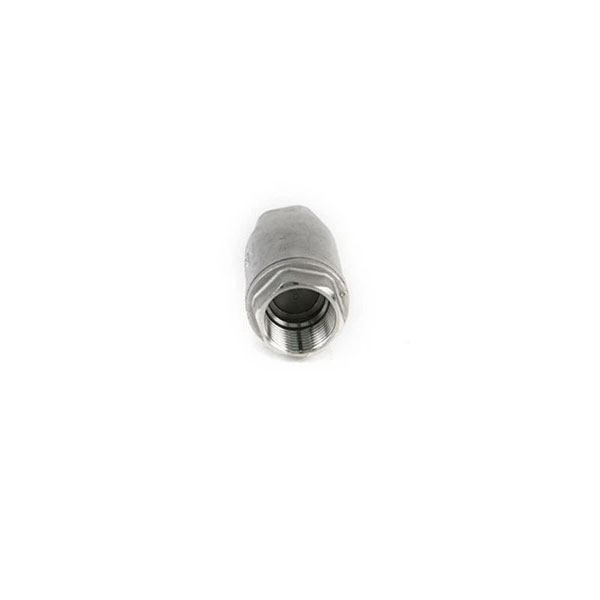

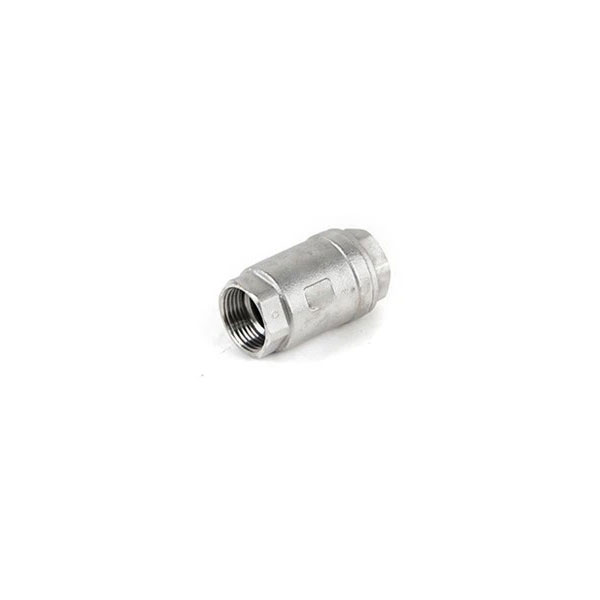

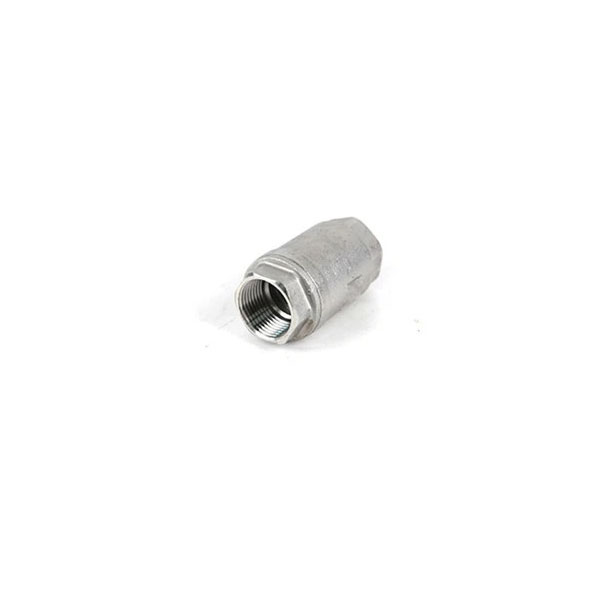

Spring Loaded Lift Check Valve

Spring Loaded Lift Check Valve provide fast flow interruption, provide positive sealing at pressures below the valve opening pressure, do not require gravity or return pressure to operate or start, and provide positive shut-off valves during routine maintenance.
Pressure:800WOG
Size:1/2"-2"
Material:CF8M,CF8
Ends:Threaded NPT,BSP,BSPT,DIN,ISO
Suitable Medium:Water,Oil,Air and some corrosive liquid
Availability:
Quantity:

Product Description

Products Description

Spring Lift Check Valve is a vital component in many industrial applications, such as chemical and manufacturing industries. It plays a significant role in ensuring the smooth and safe operation of various processes. This valve is designed to prevent the backflow of liquid or gases in a system, which can cause significant damage and compromise the quality of the products or services.

One of the significant advantages of the Spring Lift Check Valve is its ability to control the flow of substances in a system. The valve can either open or close automatically, based on the pressure differential across it. This feature helps to prevent over-pressure situations, which can lead to equipment failure and safety hazards.

The Spring Lift Check Valve is also easy to install and maintain. It requires minimal maintenance, thus reducing downtime and costs associated with maintenance. The valve is also designed to withstand harsh and corrosive environments, making it suitable for use in different industries.

In summary, the Spring Lift Check Valve is an essential component in various industrial applications. Its ability to control the flow of substances and prevent backflow makes it a valuable asset in ensuring the safety and quality of products or services. Further, its ease of installation and maintenance make it a cost-effective solution for industries looking to improve efficiency and reduce downtime.

Sinpo insists on producing brilliant valves for 20 years. We have our personal manufacturing unit and are your dependable supplier. The Spring Loaded Lift Check Valve we make are robust and durable, with steady performance, if there is any problem, we furnish ideal after-sales service.

Connection

BSP,BSPT,DIN2999,NPT

Material

Stainless Steel, WCB

Pressure

0 to 64 bar

Medium Temperature

-29 to 300℃

Mediums

Water, oil, air, gas, and other mediums

Techical Parameters

Product Identification:
Lift check valve is a regular valve. It is installed vertically, and its disc is positioned along the center to move up and down.

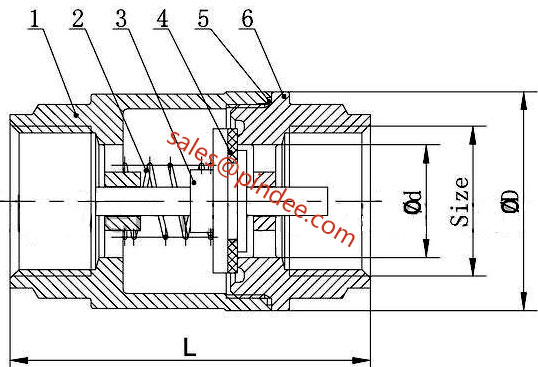

Threaded-Spring-Lift-Check-Valve-drawing


Materials:

No.

Part Name

Material

1

Body

CF8, CF8M

2

Spring

304

3

Disc

CF8, CF8M

4

Seat

CF8, CF8M

5

Gasket

PTFE

6

Bonnet

CF8, CF8M


Dimensions:

SIZE

1/2”

3/4”

1”

11/4”

11/2”

2”

2 1/2”

3”

4”

d

15

20

25

32

40

50

65

76

94

D

34

42

49

60

71

87

110

125

155

L

58

63

75

88

101

114

149

170

208


Pindee Check Valve Manufacture

Stainless-Steel-Wafer-Check-Valve5


Stainless-Steel-Wafer-Check-Valve6


Stainless-Steel-Wafer-Check-Valve7     Stainless-Steel-Wafer-Check-Valve8


Application:

1.Suitable for oil;
2.Chemical;
3.Chemical fertilizer;
4.Chemical fertilizer;
5.Power industry and other working conditions of the pipeline.
