Product Description
Features

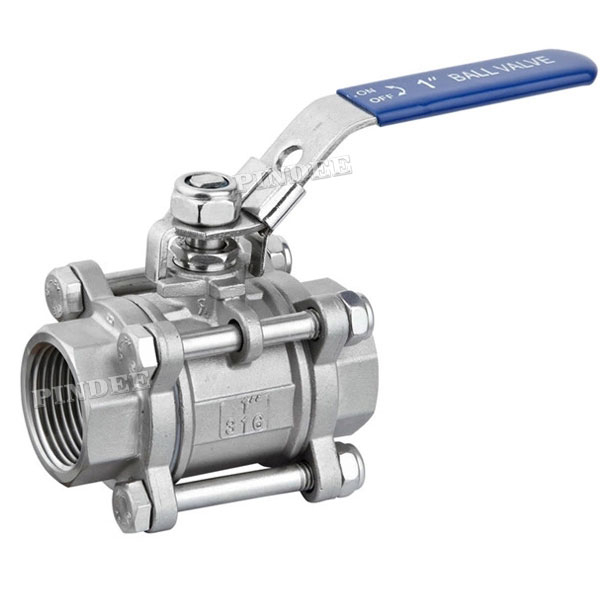

Stainless Steel 3PC Threaded Ball Valve with Lock
Ports: BSP NPT Threads,Temp Range: -60°F to 450°F,with Blue Vinyl Handle
Pressure Loss: Full size port, minimal pressure loss,1000WOG 1000 psi for Water, Oil, Gas
3 Piece ball valves are fastened together using bolts. This design allows for full service of the valve while it is still connected to the piping. Convenient for working on pipes or fixing the valve when disconnecting from the pipes is difficult to do
This multi-purpose manual lever ball valve has excellent corrosion resistance and is fit for many applications. The valve is fitted with PTFE seals for maximizing corrosion resistance and lifespan of the ball valve
When using biodiesel: Stainless steel ball valves are ideal for biodiesel processors. Stainless steel has excellent corrosion resistance to biodiesel, methanol, sulfuric acid and caustics. Use of stainless steel ensures a long-lasting processor
3-piece ball valves can be easier to take apart for cleaning, because the central body section can be removed without disturbing the end connections.
The handle has of this ball valve has a sliding lock mechanism: you have to lift it before you can turn the handle. This will prevent you from accidentally opening a valve by bumping into it.

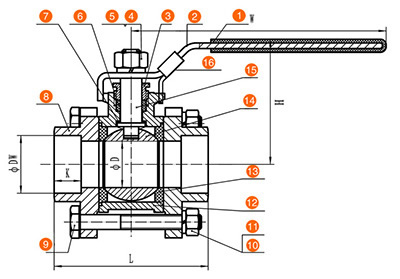

Technical parameters:
