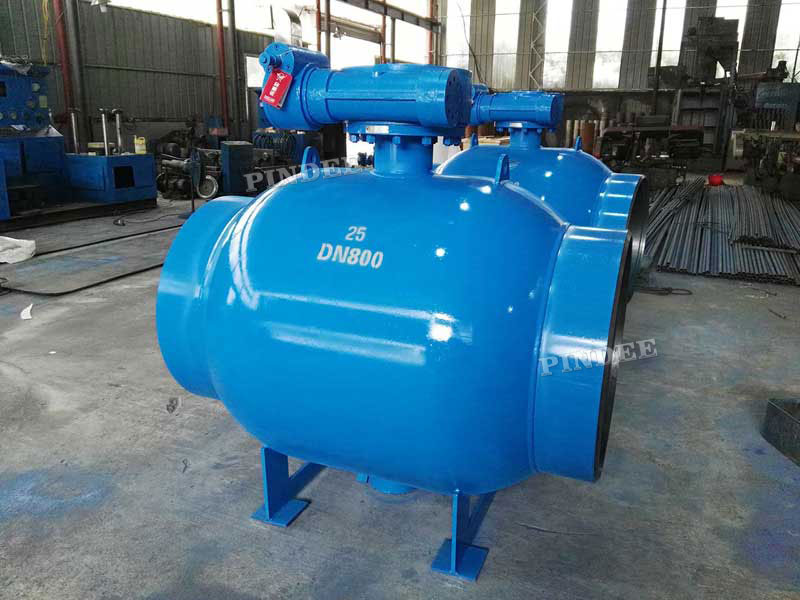

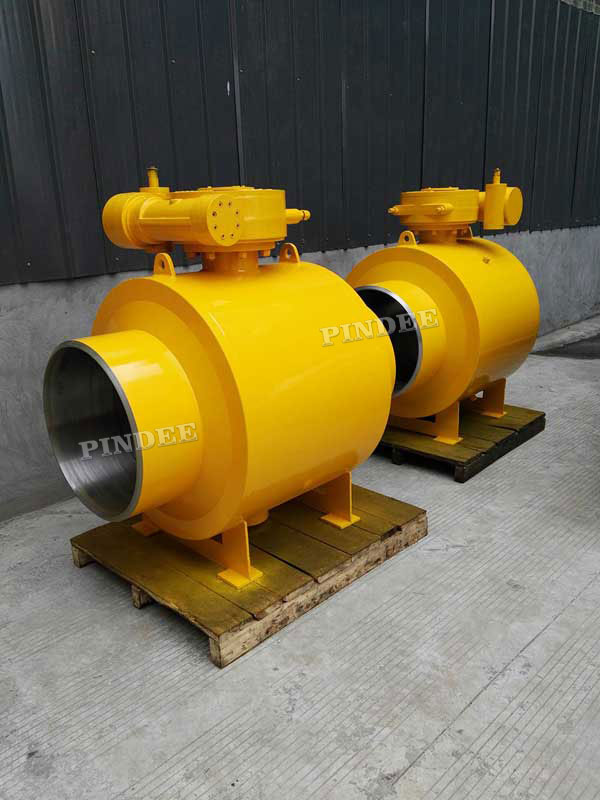

Gear Type Fully Welded Ball Valve

Technical Descriptions:

Nominal diameter: Reduced bore and Full bore DN200 to DN 1400 (8" to 56") ;

Nominal Pressure: PN 16 to PN 64 / ANSI Class 150 to Class 300;

Working temperature: -29 ℃ to 200 ℃ (-20℉ to 392℉)

Service: district heating hot water, natural gas, oil, steam, petrochemical .etc.

Operate actuator:  gear (Vertical / Horizontal), pneumatic / electrical

Materials Available: pipe material welded

Body: ST37.8 / 20#/P235GH

Ball : F304 / F316 ( Option upon request )

Seat: PTFE+C / Nylon / PEEK. etc.

Product Characteristics：

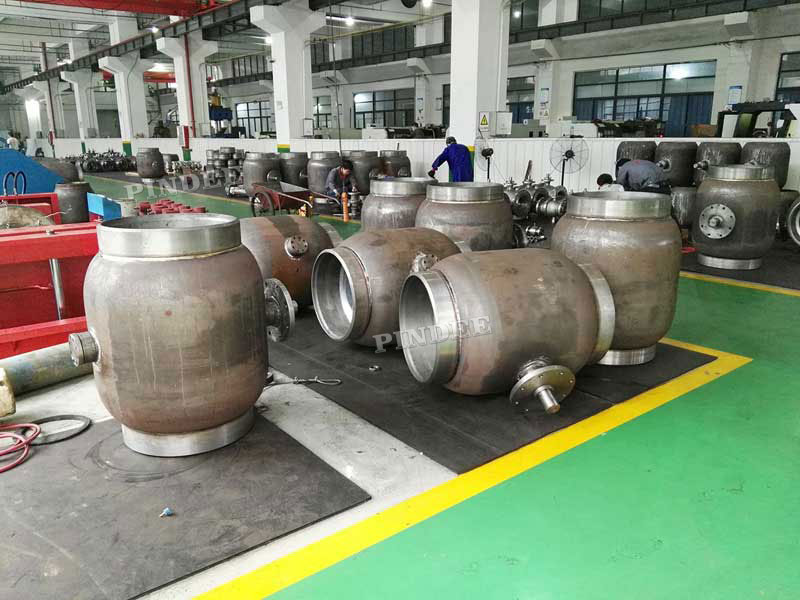

1、the overall body structure welding, there will be no external leakage。

2、the valve seat composed by a PTFE sealing ring and springs which has a strong adapt ability to changes of pressure and temperature, within the using range there will be no any leaks。

3、stem leakage prevention structure, the bottom of the stem has a PTFE seal the puncture, there are two O-rings above, composed of two PTFE gaskets ensure no leakage。

4、the same body material and pipe material, stress will not appear uneven, it will not because of the earthquake and the vehicle passes through the ground sometimes cause extrusion。

5、the body is light and easy to keep temperature not down

6、we can adjust the body length and stem height according to construction and design requirements of the pipeline.。

7、the ball’s machining precision is very high easy to operation, no adverse interference。

8、can use welded and flanged two kinds connection type.
