Product Description
Standards&Features:
Features
-The most reas onable and streamlined design;
-The MIN. Noise while direct flow or back flow;
-Head loss only 0.18bar with velocity of 2m/s;
-Shut off speed is only 0.2s;
-Integral body and flow guide design , full rubbercoated disc;
-FBE coating inside and outside Min 250 u .
Specification

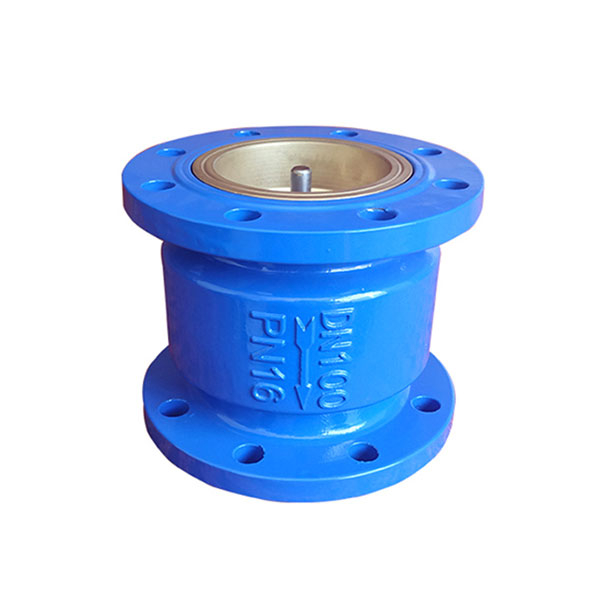

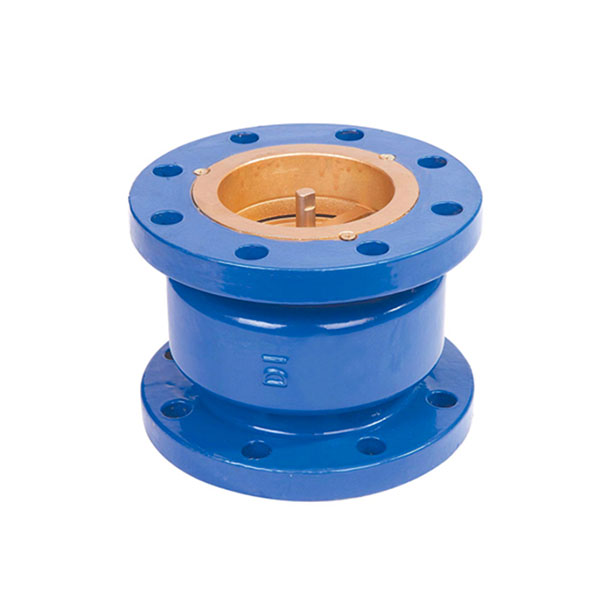

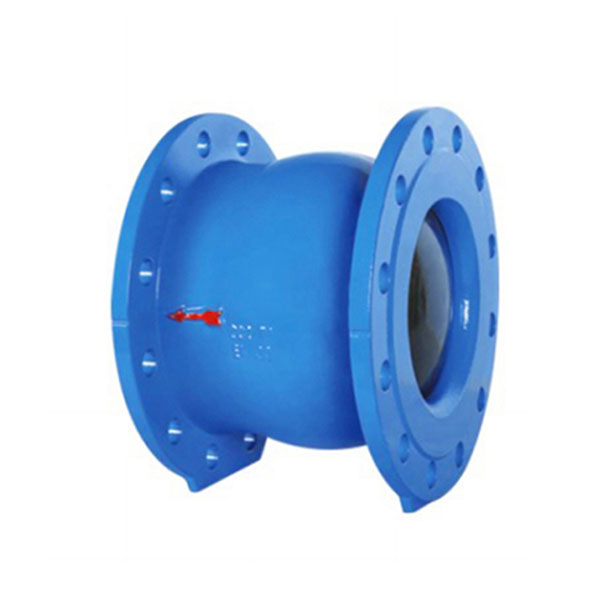

Type | 5106 Globe Silent Check Valve |
Working Pressure and Temperature | 16 bar/250 psi rated at -10°C to 120°C for EPDM disc ring. 16 bar/250 psi rated at -10°C to 82°C for NBR disc ring. |
Corrosion Protection | Fusion bonded coating interior and exterior. |
Techical Parameters

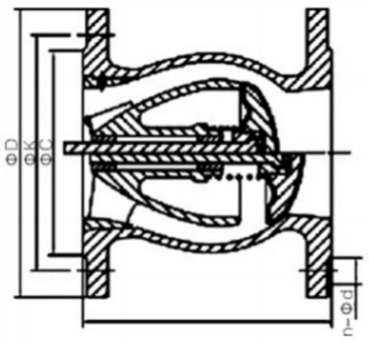

Size | DN | L | D | K | C | n-ΦDPN10 | n-ΦDPN16 |
2" | 50 | 150 | 165 | 125 | 19 | 4 一Φ19 | 4 一Φ19 |
21/2" | 65 | 150 | 185 | 145 | 19 | 4 一Φ19 | 4 一Φ19 |
3" | 80 | 180 | 200 | 160 | 19 | 8 一Φ19 | 8 一Φ19 |
4" | 100 | 190 | 220 | 180 | 19 | 8 一Φ19 | 8 一Φ19 |
5" | 125 | 210 | 250 | 210 | 19 | 8 一Φ19 | 8 一Φ19 |
6" | 150 | 210 | 285 | 240 | 19 | 8 一Φ23 | 8 一Φ23 |
8" | 200 | 230 | 340 | 295 | 20 | 8 一Φ23 | 12 一Φ23 |
10" | 250 | 250 | 405 | 355 | 22 | 12 一Φ23 | 12 一Φ28 |
12" | 300 | 270 | 460 | 410 | 24.5 | 12 一Φ23 | 12 一Φ28 |
14" | 350 | 290 | 520 | 470 | 24.5 | 12 一Φ23 | 12 一Φ28 |
Pindee Check Valve Manufacture
Application:
