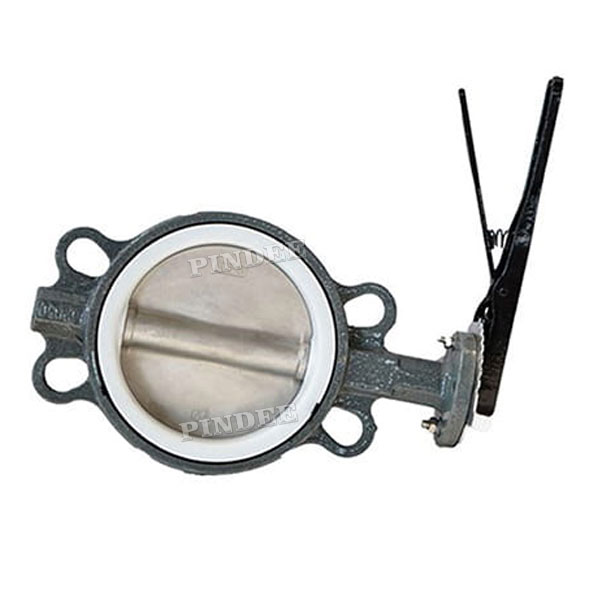

Wafer PTFE Seat Butterfly Valve Manufacture by Pindee Valve,which this kind of Wafer PTFE Seat Butterfly Valve is very popular in Asia,Europe, North American, South American,welcome our new and regular customers pay a visit to our website and send us an inquiry to see our price and delivery time.Our sales Manager email: sales@pindee.com
Bushing: Reduce driving torque, support stem, and ffectively separate it with valve body,reduce wear of stem.
Surface of disc axle hole:
Through treatment of polishing, precisely ft with seat.
High precision disc external profile
Reach the requirement of bubbl-tight. small start and stop torque, longer usage life of seat.
Stem seal
Stem is not easy to be distorted, eliminating possible leakage in stem.
Strong precision key
Give psible attachment for manual lever or actuator.
Precision taper pin
Ensure positive vibralion prooft. Stem to disc connection. Easily field replaceable.
Integral stem design
High precision and rlabilt, convenient for start.
Technical Parameter:
| A | B | C | L | DIN PN10 | DIN PN16 | ANSI 150B | JIS 10K | Top Flange | ||||
| ΦK | N-Φd | ΦK | N-Φd | ΦK | N-Φd | ΦK | N-Φd | |||||
| 67 | 141 | 32 | 33 | 110 | 4-Φ18 | 110 | 4-Φ18 | 98.5 | 4-Φ16 | 105 | 4-Φ19 | F05 |
| 67 | 141 | 32 | 43 | 125 | 4-Φ18 | 125 | 4-Φ18 | 120.6 | 4-Φ19 | 120 | 4-Φ19 | F05 |
| 75 | 151 | 32 | 46 | 145 | 4-Φ18 | 145 | 4-Φ18 | 139.7 | 4-Φ19 | 140 | 4-Φ19 | F05 |
| 95 | 160 | 32 | 46 | 160 | 8-Φ18 | 160 | 8-Φ18 | 152.4 | 4-Φ19 | 150 | 8-Φ19 | F05 |
| 111 | 180 | 32 | 52 | 180 | 8-Φ18 | 180 | 8-Φ18 | 190.5 | 8-Φ19 | 175 | 8-Φ19 | F07 |
| 129 | 193 | 32 | 56 | 210 | 8-Φ18 | 210 | 8-Φ18 | 215.9 | 8-Φ22.4 | 210 | 8-Φ23 | F07 |
| 142 | 207 | 32 | 56 | 240 | 8-Φ22 | 240 | 8-Φ22 | 241.3 | 8-Φ22.4 | 240 | 8-Φ23 | F07 |
| 170 | 240 | 45 | 60 | 295 | 8-Φ22 | 295 | 12-Φ22 | 298.4 | 8-Φ22.4 | 290 | 12-Φ23 | F10 |
| 206 | 270 | 45 | 68 | 350 | 12-Φ22 | 355 | 12-Φ22 | 361.9 | 12-Φ25.4 | 355 | 12-Φ25 | F10 |
| 238 | 316 | 45 | 78 | 400 | 12-Φ22 | 410 | 12-Φ26 | 431.8 | 12-Φ25.4 | 400 | 16-Φ25 | F10 |
| 267 | 368 | 45 | 78 | 460 | 16-Φ22 | 470 | 16-Φ26 | 476.2 | 12-Φ28.4 | 445 | 16-Φ25 | F10 |
| 298 | 400 | 51 | 86 | 515 | 12-Φ26 | 525 | 16-Φ30 | 539.7 | 16-Φ28.4 | 510 | 16-Φ27 | F14 |
| 318 | 422 | 51 | 105 | 565 | 20-Φ26 | 585 | 20-Φ30 | 577.8 | 16-Φ31.8 | 565 | 20-Φ27 | F14 |
| 349 | 479 | 57 | 130 | 620 | 20-Φ26 | 650 | 20-Φ33 | 635 | 20-Φ31.8 | 620 | 20-Φ27 | F14 |
| 410 | 562 | 70 | 152 | 725 | 20-Φ30 | 770 | 20-Φ36 | 749.3 | 20-Φ35.1 | 730 | 24-Φ33 | F16 |
Pindee Valve Manufacture
Application:
Water Treatment Plant ;2.Drilling Rigs;3.Paper Industry;4.Gas Plant;5.Sugar Industry;6.Cooling Water Circulation;7.Breweries;8.Heating & Air Conditioning;9.Chemical Industry;10.Pneumatic Conveyors;11.Waste Effluent Treatment Plant ;12.Compressed Air.
