Product Description

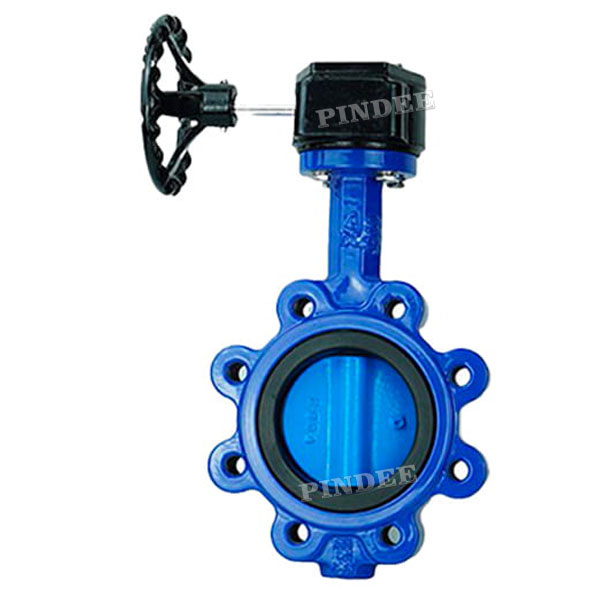

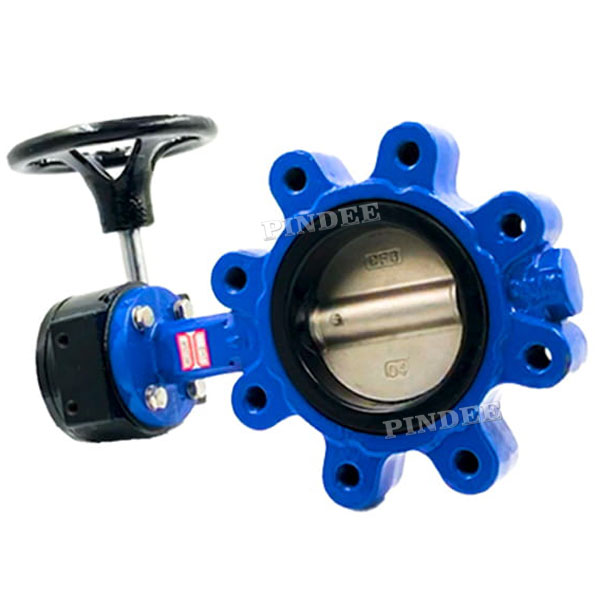

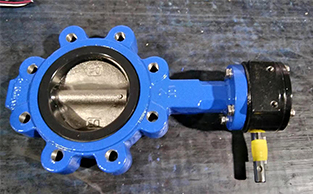

Worm Gear Operated Lug Butterfly Valve Manufacture by Pindee Valve,which this kind of Worm Gear Operated Lug Butterfly Valve is very popular in Asia,Europe, North American, South American,welcome our new and regular customers pay a visit to our website and send us an inquiry to see our price and delivery time.Our sales Manager email: sales@pindee.com
Lug Type ductile iron butterfly valve Standard:
Design and Manufacture Conform to EN 593, API609, JIS
Flange dimensions Conform to EN 1092-2 PN10, PN16, JIS5K, JIS10K,ANSI B16.1,DIN2501,BS4504
Face to Face dimensions Conform to EN558 series
Top Flange dimensions Conform to ISO5211
Testing Conform to API598、EN12266-1
Lug type butterfly valve features:
Simple structure and easy operation
Easy installation and good sealing
Long service life and high reliability
Good interchangeability of parts and cost saving
Wafer type butterfly valve with concentric design
Using backless structure, Rubber fusion bonded on valve body
Replaceable, resilient seat
Streamlined disc, one-piece stem
Lug type butterfly valve Standard Test :
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Technical Parameters;
DN | NPS（inch） | L | ΦA | N-M | ΦA | N-M |
DN50 | 2" | 43 | 125 | 4-M16 | 120.7 | 4-5/8" |
DN65 | 2.5" | 46 | 145 | 4-M16 | 139.7 | 4-5/8" |
DN80 | 3" | 46 | 160 | 8-M16 | 152.4 | 4-5/8" |
DN100 | 4" | 52 | 180 | 8-M16 | 190.5 | 8-5/8" |
DN125 | 5" | 56 | 210 | 8-M16 | 215.9 | 8-3/4" |
DN150 | 6" | 56 | 240 | 8-M20 | 241.3 | 8-3/4" |
DN200 | 8" | 60 | 295 | 12-M20 | 298.5 | 8-3/4" |
DN250 | 10" | 68 | 355 | 12-M24 | 362 | 12-7/8" |
DN300 | 12" | 78 | 410 | 12-M24 | 431.8 | 12-7/8" |
DN350 | 14" | 78 | 470 | 16-M24 | 476.3 | 12-1" |
DN400 | 16" | 102 | 525 | 16-M27 | 539.8 | 16-1" |
DN450 | 18" | 114 | 585 | 20-M27 | 577.9 | 16-11/8" |
DN500 | 20" | 127 | 650 | 20-M30 | 635 | 20-11/8" |
DN600 | 24" | 154 | 770 | 20-M33 | 749.3 | 20-11/4" |
Application:
Lug type butterfly valve Application:
potable water supply pipelines and treatment plants.
transportation of filtered and recycled water.
irrigation distribution networks.
water-pumping stations and hydroelectric plants.
nuclear industry, fire safety and storage facilities.
Pindee Valve Manufacture
Pindee Valve Inspection:

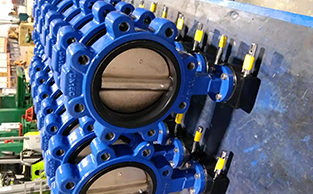

Pindee Valve Packing:
