Product Description

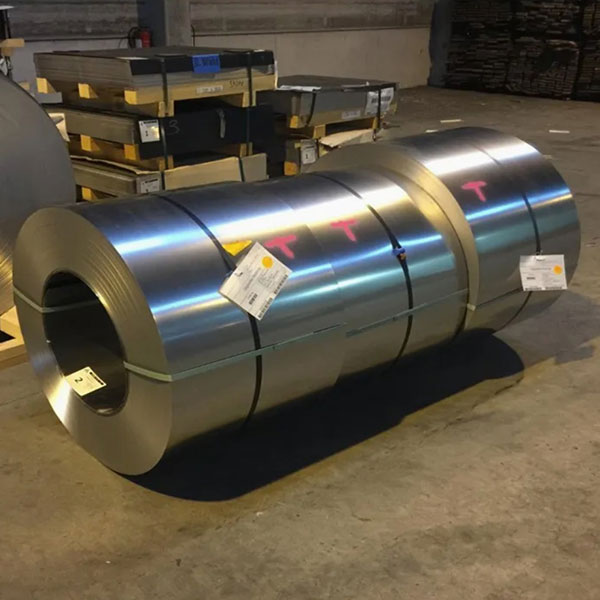

Pindee Steel including the stainless steel products Which meets JIS, ASTM, AS, EN, GB international supply standard conditions.of 200, 300, 400 series coils/plates/sheets/strips. 1219mm Width Finish NO4 stainless steel coil stockist from Pindee Steel.There are are 100% qualified, and our strong logistics and transportation capabilities export our products to all over the world,many surface treatment technologies, such as 2B, BA, 8K, HL, titanium, etching, embossing, etc. Support customization, reasonable price and quality. We perform strict quality inspections to ensure that our products . Welcome to Pindee to purchase stainless steel to our email address:sales@pindee.com
| Surface | No.1, 2B, BA, 8K Mirror, No.4,Hairline,Satin,Embossed,Brush,Matt Pvc Film,Laser Film.Perforated,Galvanized |
| Thickness | Cold rolled 0.3 to 3mm |
| Hot rolled 3mm to 60mm or as customer's request | |
| Width | 1000mm,1219mm,1500mm,1800mm,2000mm or as customer's needs |
| Length | 2000mm-6000mm or as customer request |
| Brand | TISCO,BAOSTEEL,POSCO(ZPSS) ,POSCO, etc. |
| Feature | Corrosion resistance, heat resistance |
| Sizes | Standard size and other size as your requirement support |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Certificate | SGS,BV,IQI,TUV,ISO,etc |
| Grade | 201.202.301.302.304.304L.304F,309S,310,310S,316,316L,321,430,430F,420,410s,904L |
| Package | Standard export sea-worthy packing or customized |
Grade: | AISI 304, AISI 304L, AISI 430, AISI 316L, 202, 201, AISI 301, AISI 409L |
Surface: | 2D, 2B, BA, NO 1, NO 3, NO 4, HL, HairLine, NO.8 (MIRROR), Ethching. |
| Standards: | ASTM A240, ASTM A480, JIS G4303, BS 1449, DIN17441, G4305 |
Thickness: | Cold-Rolled 0.1mm~3.0mm |
Width: | 1000MM, 1219MM, 1250MM, 1500MM, Max 1524mm (5ft) |
Length: | 2000MM, 2438MM, 2500MM, 3000MM, Max 6000mm |
Surface | Description |
NO1 | Hot-rolled annealed and pickled. Surface presents silvery white, lackluster and coarseness. |
2D | Non-glossy cold-rolled, annealed and pickled. Surface presents silvery white glossiness and flatness. |
2B | Skinpass conducted on 2D, it has better gloss and surface flatness compared to NO.2D. |
BA | Cold rolled, bright annealed and skin-passed, the product have |
NO3 | Polished with abrasive belt of grit #100- #120 |
NO4 | Polished with abrasive belt of grit #150-#180, have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtube buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks. |
Product Specification and Size:
| ASTM | JIS | AISI | EN | Mill's Standard | |
| Grade | S30400 S44400 | SUS304 SUS444 | 304 444 | 14301 1.4521 | 201 202 204Cu3 |
Available Size:
| Width | Thickness | Inner Diameter | Available Steel Grade |
| 610~2000 mm | 2.5~10.0 mm | 610 +0/-5 mm | 201, 202, 304, 304L, 316L |
Chemical Composition & Mechanical Property:
| Spec. ASTM A240 | Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Other |
| S30400 | 8.0~10.5 | 17.5~19.5 | 0.07 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S30403 | 8.0~12.0 | 17.5~19.5 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S31603 | 10.0~14.0 | 16.0~18.0 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 2.0~3.0 | N: 0.1 Max. | |
| S43000 | 0.75 | 16.0~18.0 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |
Product Introduction
Stainless steel is divided into austenitic stainless steel, ferritic stainless steel, martensitic stainless steel, and duplex stainless steel according to the structure state. is an alloy steel with smooth surface, high weldability, corrosion resistance, polishability, heat resistance, corrosion resistance and other characteristics. It is widely used in various industries and is an important material in modern industry.
Austenitic Stainless Steel: stainless steel with an austenitic structure at room temperature. Steel contains Cr≈18%, Ni≈8%-25% and C≈0.1%. Steel has high toughness and plasticity, but low strength.
Martensitic Stainless Steel: A steel whose mechanical properties can be adjusted by heat treatment. It has different strength and toughness at different tempering temperatures.
Duplex stainless steel: Austenitic and ferrite each account for about half of the structure. When the C content is low, the Cr content is 18% to 28%, and the Ni content is 3% to 10%. Some steels also contain alloying elements such as Mo, Cu, Si, Nb, Ti, and N. This type of steel has the characteristics of austenitic and ferritic stainless steel
Ferritic Stainless Steel: It contains 15% to 30% chromium and has a body-centered cubic crystal structure. This type of steel generally does not contain nickel, and sometimes contains a small amount of Mo, Ti, Nb and other elements. This type of steel has the characteristics of large thermal conductivity, small expansion coefficient, good oxidation resistance, and excellent stress corrosion resistance.

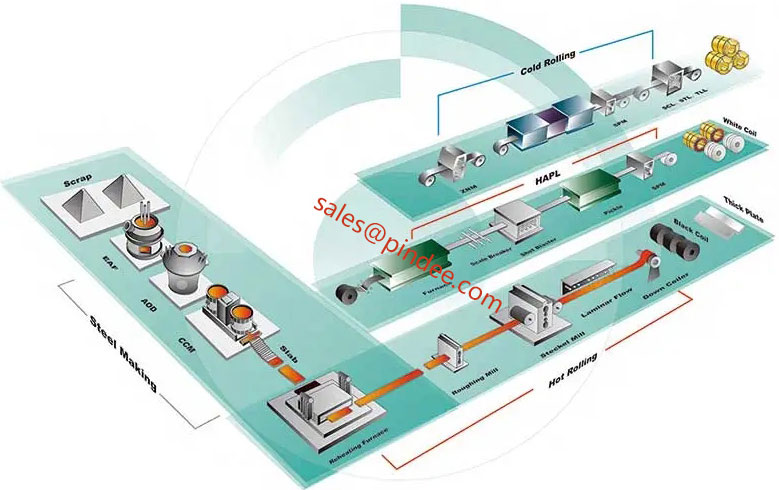

Stainless Steel Coil/Sheet Manufacturing Process

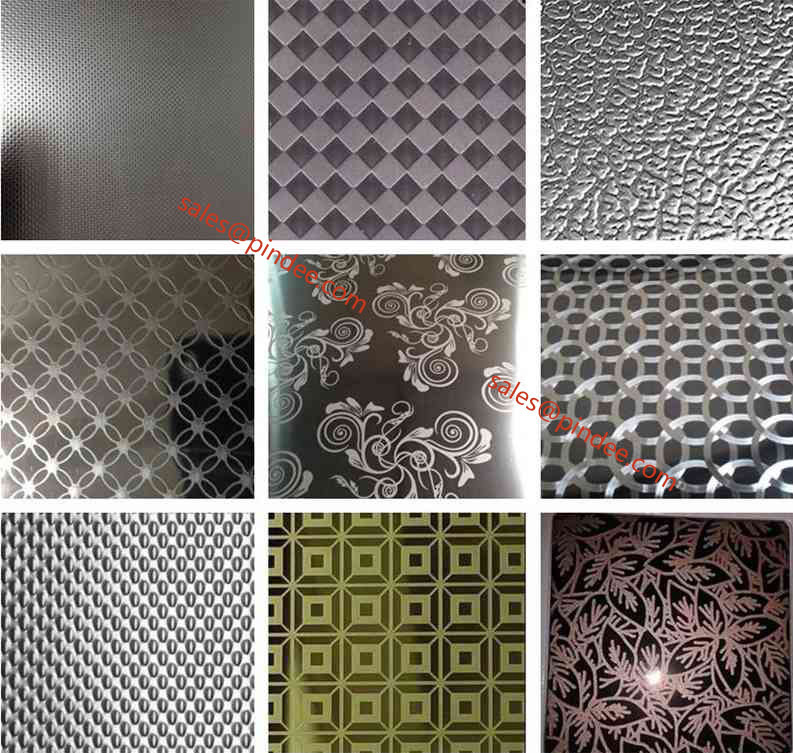

Stainless Steel Coil Sheet Product Detail

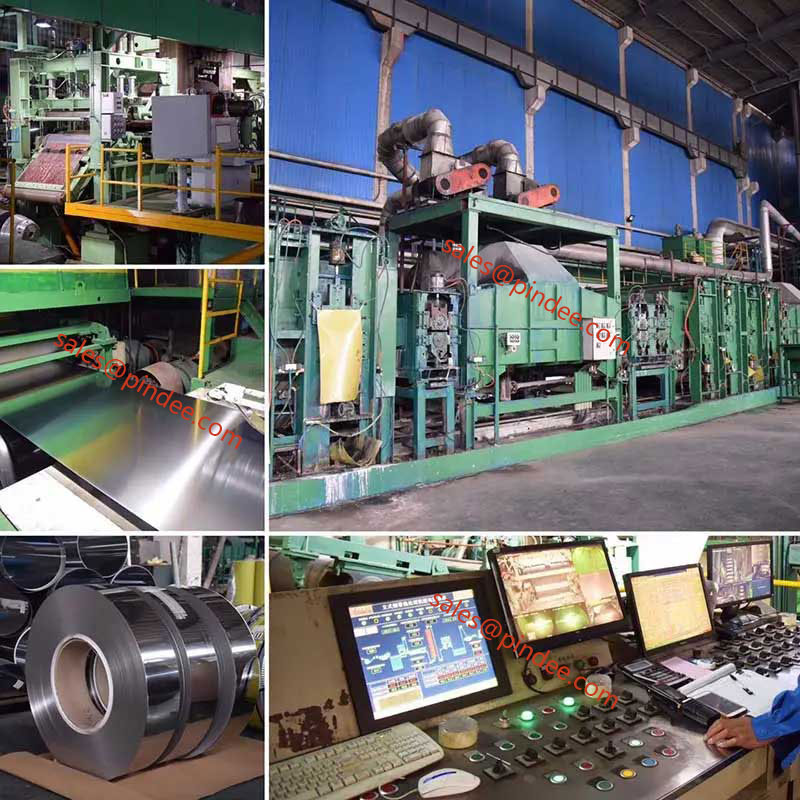

Stainless Steel Coil/Sheet Production Line

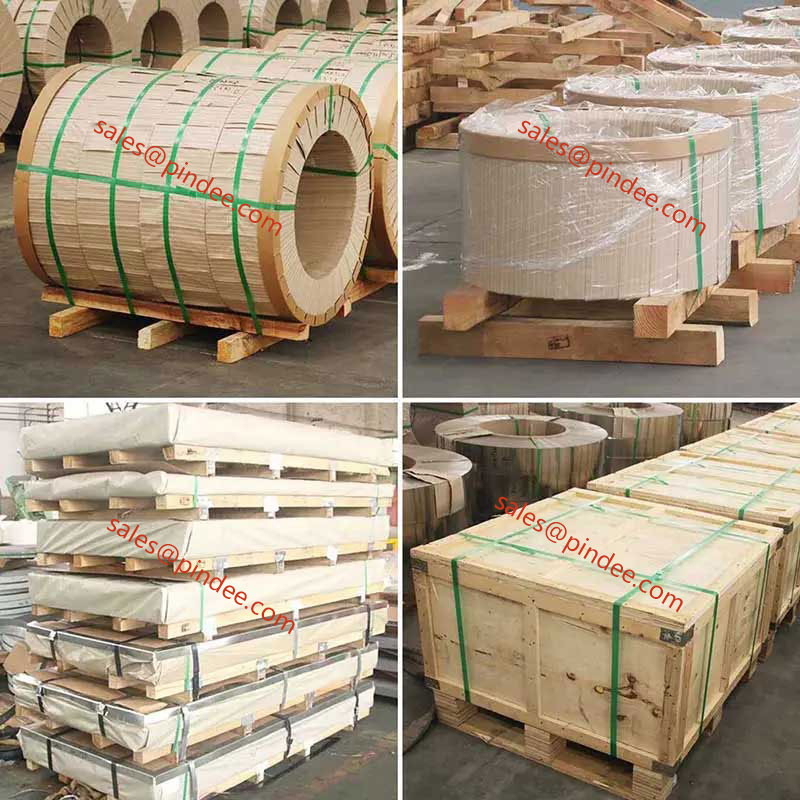

Stainless Steel Coil/Sheet Product Packaging
Applications of stainless steel coil
SA240 Stainless Steel 316 No.4 Matt Finish Coils supplier From Pindee Steel.Beer kegs, bellows, chemical equipment, coal hopper linings, cooking equipment, cooling coils, cryogenic vessels, dairy equipment, evaporators, flatware utensils, feedwater tubing, flexible metal hose, food processing equipment, hospital surgical equipment, hypodermic needles, kitchen sinks, marine equipment and fasteners, nuclear vessels, oil well filter screens, refrigeration equipment, paper industry, pots and pans, pressure vessels, sanitary fittings, valves, shipping drums, spinning, still tubes, textile dyeing equipment, tubing.
