Product Description

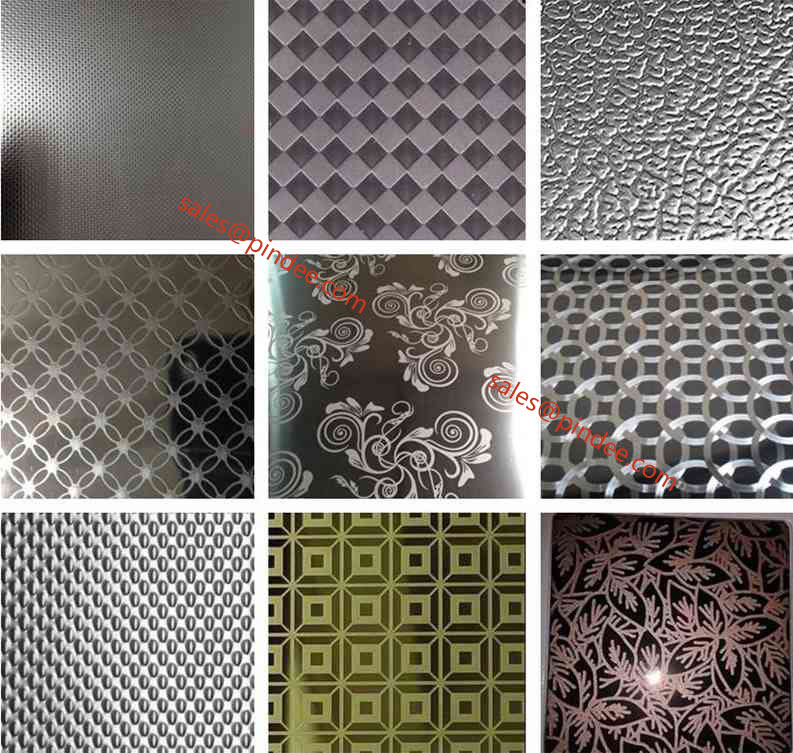

Pindee Steel is the branch from Pindee,included hot sale of the JIS, ASTM, AS, EN, GB Stainless Steel Hot Rolled Sheets manufacture from China.We produce many international used surface treatment advancements, for example, 2B(2B Stainless Steel Sheets Stocker), BA, 8K, HL, titanium, drawing, decorating, and so on. Support customization, sensible cost and quality. We perform severe quality investigations to guarantee that our items are 100 percent qualified, and our solid operations and transportation capacities send out our items to everywhere.. Welcome to Pindee to purchase stainless steel to our email address:sales@pindee.com
200 Series: 201 / 202
300 Series: 304 / 304L / 316 / 316L / 310S
400 Series: 430
Standard: ASTM, AISI, JIS (generally offer based on ASTM)
Surface: No.1, 2B, BA, No.4(Brushed Finish), HL, No.8(Mirror Finish)
Width: 1000 / 1219 / 1220 / 1250 / 1500 / 2000
Length: 2000 / 2438 / 2440 / 2500 / 3000 / 6000 or as you require
Edge: Slit Edge / Mill Edge
Protection: Paper or PVC
Surface | Description |
NO1 | Hot-rolled annealed and pickled. Surface presents silvery white, lackluster and coarseness. |
2D | Non-glossy cold-rolled, annealed and pickled. Surface presents silvery white glossiness and flatness. |
2B | Skinpass conducted on 2D, it has better gloss and surface flatness compared to NO.2D. |
BA | Cold rolled, bright annealed and skin-passed, the product have |
NO3 | Polished with abrasive belt of grit #100- #120 |
NO4 | Polished with abrasive belt of grit #150-#180, have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtube buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks. |

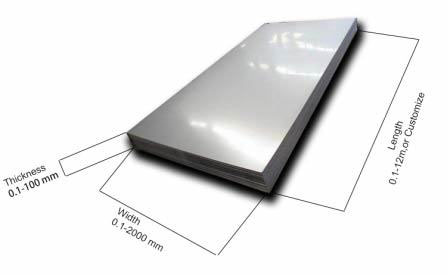

Product Specification and Size:
| ASTM | JIS | AISI | EN | Mill's Standard | |
| Grade | S30400 S44400 | SUS304 SUS444 | 304 444 | 14301 1.4521 | 201 202 204Cu3 |
Dimension and Shape Tolerance
Thickness | Tolerance |
8.0 mm < T ≦ 10.0 mm | ±0.32 mm |
10.0 mm < T ≦ 25.0 mm | ±0.34 mm |
25.0 mm < T ≦ 85.0 mm | ±0.40 mm |
Mechanical Property (For Reference)
| Steel grade | Tensile strength Min. | Yield strength Min. | Elongation ﹪ Min. | Hardness HRB Max. |
| SUS 304 | 520 | 205 | 40 | 90 |
SUS 304L | 480 | 175 | 40 | 90 |
SUS 316L | 480 | 175 | 40 | 90 |
SUS 430 | 420 | 205 | 22 | 88 |
Chemical Composition & Mechanical Property:
Grade | C | Si | Mn | P | S | Ni |
201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 |
301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 |
304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 |
316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 |
321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 |
410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - |
430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 |

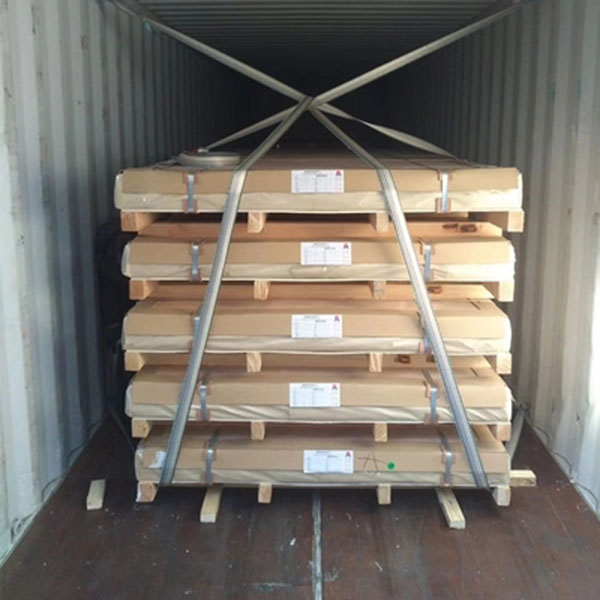

Packing for stainless steel sheet：
1) PVC fil for special surface treatment,like NO.4,8K,hairline,colored
2) 2.5tons per wood pallet with kraft paper and thick-hard cardboard on the top level
3) galvanzied steel frame and steel packing belt

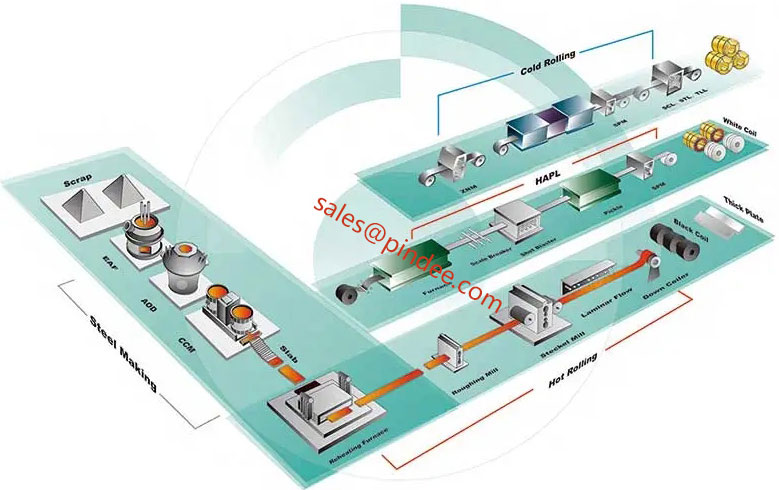

Stainless Steel Coil/Sheet Manufacturing Process

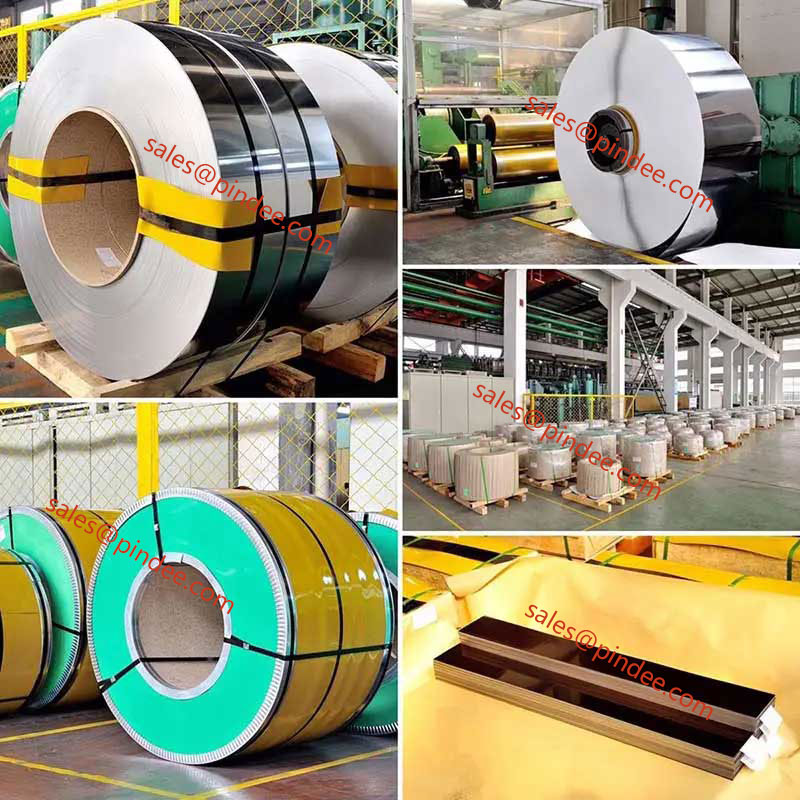

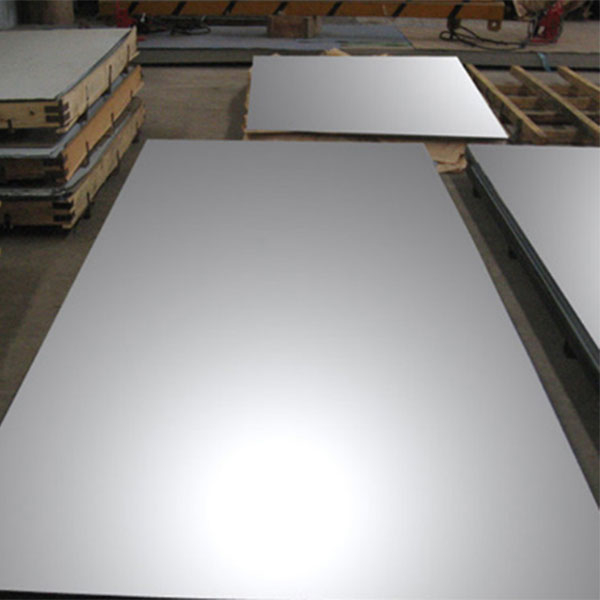

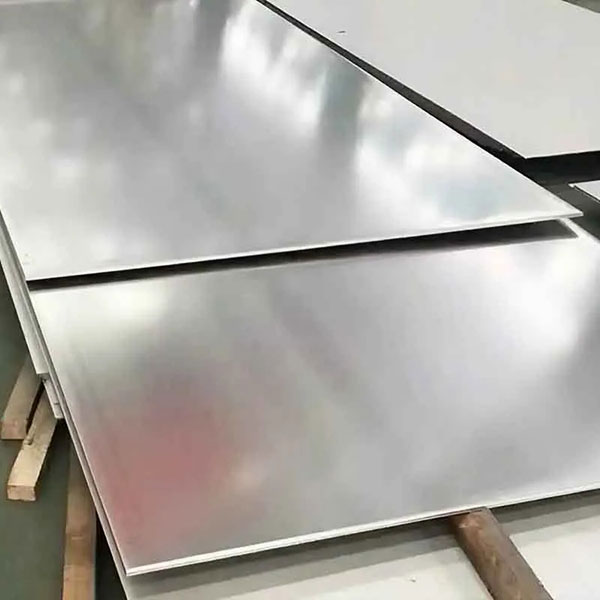

Stainless Steel Coil Sheet Product Detail
Stainless Steel Coil/Sheet Production Line

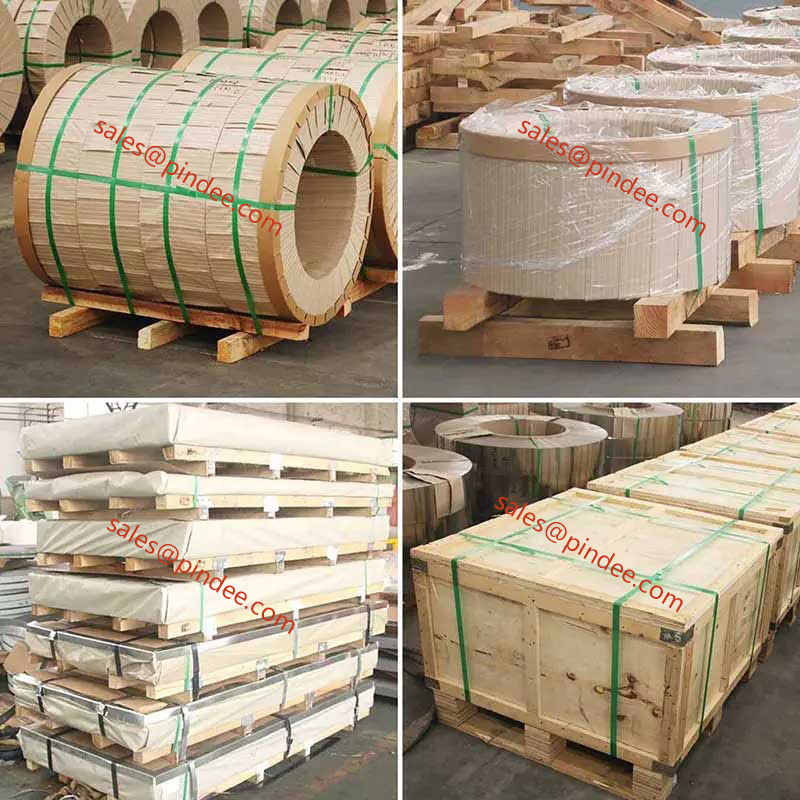

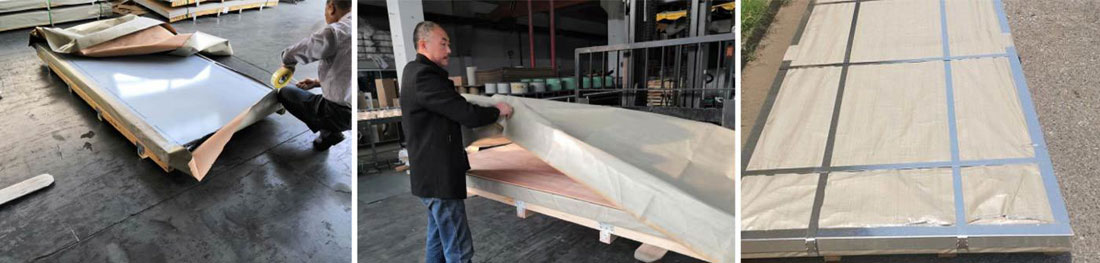

Stainless Steel Coil/Sheet Product Packaging
Applications of stainless steel Sheets
Stainless sheet is used for industrial sectors and components for processing equipment for foodservice, medical device, chemical, petrochemical and power transmission industries.
