Product Description
Pindee Steel included hot sale of the JIS, ASTM, AS, EN, GB stainless steel products of 200, 300, 400 series stainless steel coils/plates/sheets/strips. We produce many international used surface treatment advancements, for example, Stainless Steel Cold Rolled Coil manufacture from China,2B, BA, 8K, HL, titanium, drawing, decorating, and so on. Mat 316 stainless steel is ideal for situations with more saline and chloride exposure.While type 304 stainless steel appears as though a more efficient decision, it doesn't have a similar protection from saline and chloride. This will lead it to separate quicker, setting you back more over the long haul when you want to supplant it. Welcome to Pindee to purchase stainless steel to our email address:sales@pindee.com
Specification of Stainless Steel Cold Rolled Coil: Stainless Steel Cold Rolled Coil suppliers, Cold rolled steel is basically hot rolled steel that has been through further processing. Once hot rolled steel has cooled, it is then re-rolled at room temperature to achieve more exact dimensions and better surface qualities.Cold rolled stainless steel is usually with better finished and delicate surface than hot rolled stainless steel. The basic cold rolled stainless steel is 2B or BA finish, then can be polished to NO.4, HL (Hairline), NO.5, scotch bright, mirror finish or be undertaken further surface processing, such as Ti coating etc.
ASTM A240/A480(304/304L, 316/316L, 409, 430, 439, 301, 310, 321, 410, 420J2, 409L, 439, 441, 444, 201, 202)
JIS G4304/G4305(SUS304, 304L, SUS316, 316L)
EN10088-2 / EN10028-7/ DIN 17440/17441(1.4301/1.4306, 1.4401/1.4404, 1.4016, 1.4510, 1.4512, 1.4509, 1.4201, 1.4372)
Finish: 2B, No.4, No.5, HL, BA, Scotch Bright, Mirror
Edge: Slit or Mill
Protection: Paper or PVC
Customized Shape: Disc and up request
Surface | Description |
NO1 | Hot-rolled annealed and pickled. Surface presents silvery white, lackluster and coarseness. |
2D | Non-glossy cold-rolled, annealed and pickled. Surface presents silvery white glossiness and flatness. |
2B | Skinpass conducted on 2D, it has better gloss and surface flatness compared to NO.2D. |
BA | Cold rolled, bright annealed and skin-passed, the product have |
NO3 | Polished with abrasive belt of grit #100- #120 |
NO4 | Polished with abrasive belt of grit #150-#180, have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtube buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks. |
Product Specification and Size:
| ASTM | JIS | AISI | EN | Mill's Standard | |
| Grade | S30400 S44400 | SUS304 SUS444 | 304 444 | 14301 1.4521 | 201 202 204Cu3 |
Available Size:
| Width | Thickness | Inner Diameter | Available Steel Grade |
| 610~2000 mm | 2.5~10.0 mm | 610 +0/-5 mm | 201, 202, 304, 304L, 316L |
Chemical Composition & Mechanical Property:
| Spec. ASTM A240 | Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Other |
| S30400 | 8.0~10.5 | 17.5~19.5 | 0.07 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S30403 | 8.0~12.0 | 17.5~19.5 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S31603 | 10.0~14.0 | 16.0~18.0 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 2.0~3.0 | N: 0.1 Max. | |
| S43000 | 0.75 | 16.0~18.0 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |

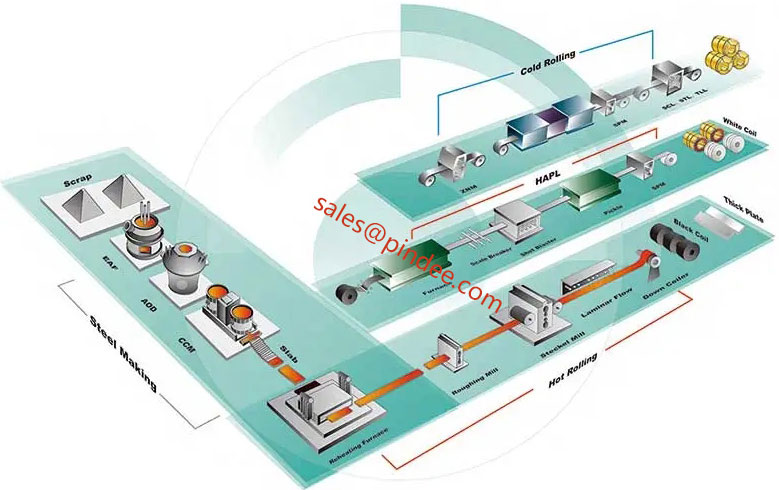

Stainless Steel Coil/Sheet Manufacturing Process

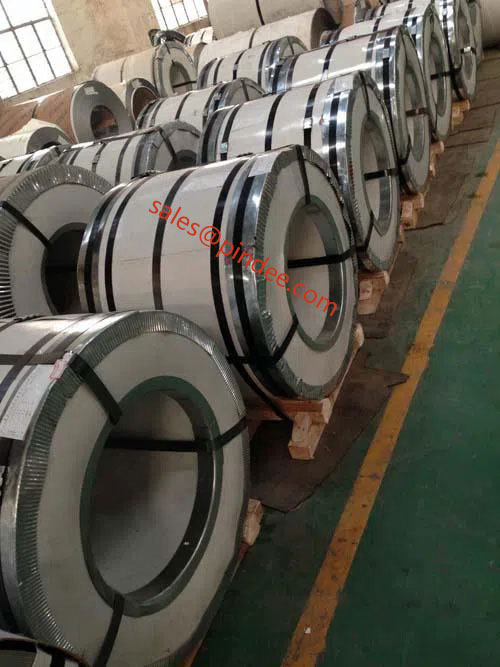

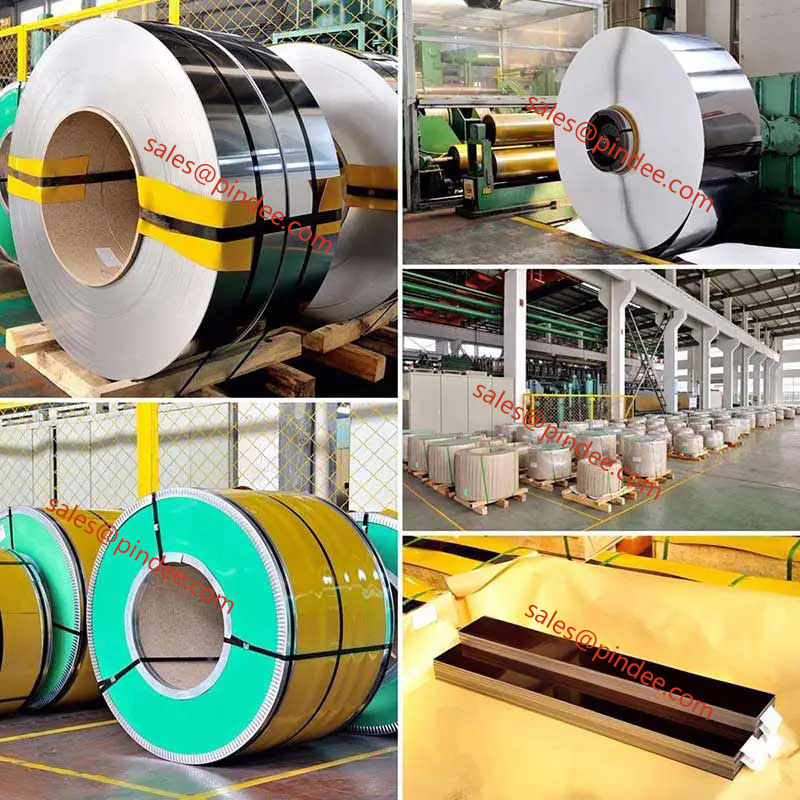

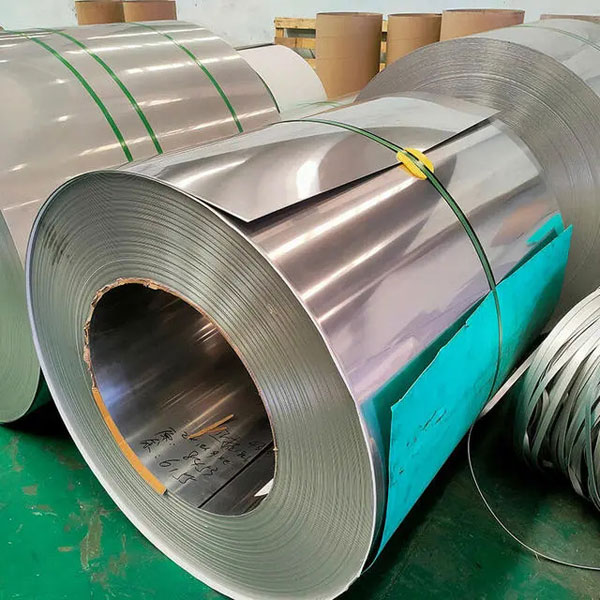

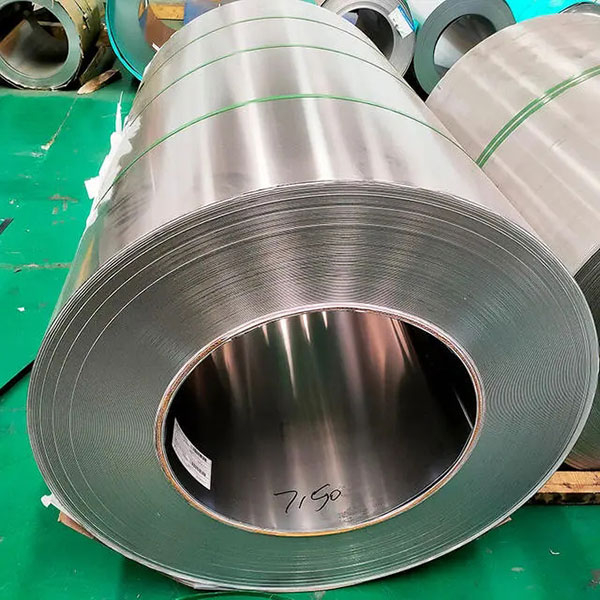

Stainless Steel Coil Sheet Product Detail

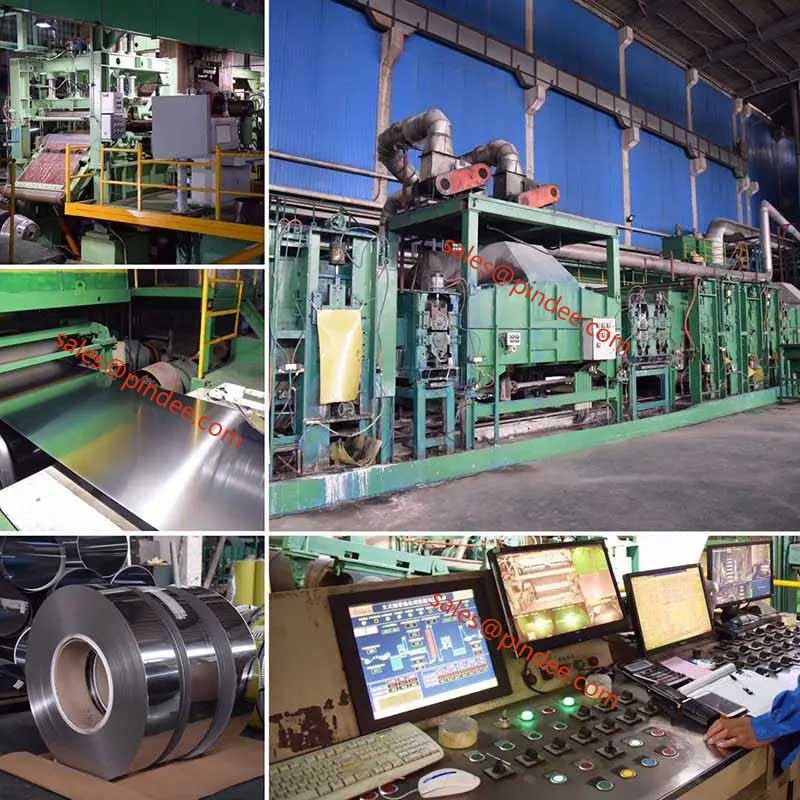

Stainless Steel Coil/Sheet Production Line

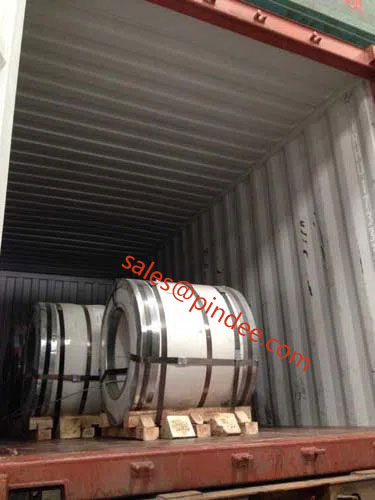

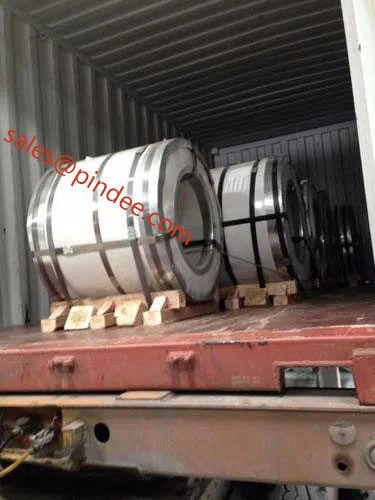

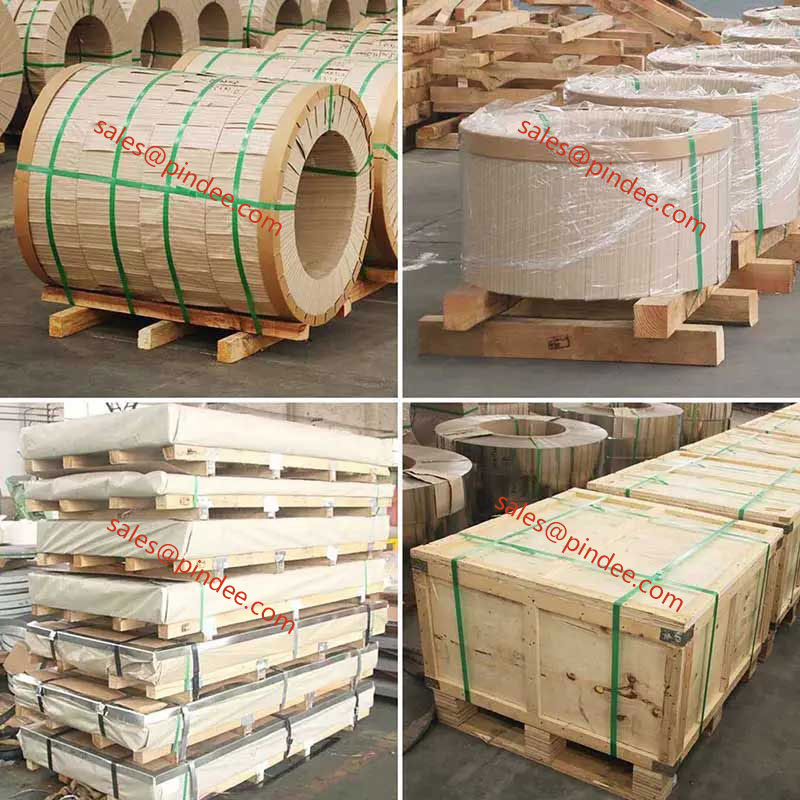

Stainless Steel Coil/Sheet Product Packaging
Applications of stainless steel coil
Beer kegs, bellows, chemical equipment, coal hopper linings, cooking equipment, cooling coils, cryogenic vessels, dairy equipment, evaporators, flatware utensils, feedwater tubing, flexible metal hose, food processing equipment, hospital surgical equipment, hypodermic needles, kitchen sinks, marine equipment and fasteners, nuclear vessels, oil well filter screens, refrigeration equipment, paper industry, pots and pans, pressure vessels, sanitary fittings, valves, shipping drums, spinning, still tubes, textile dyeing equipment, tubing.
