Product Description

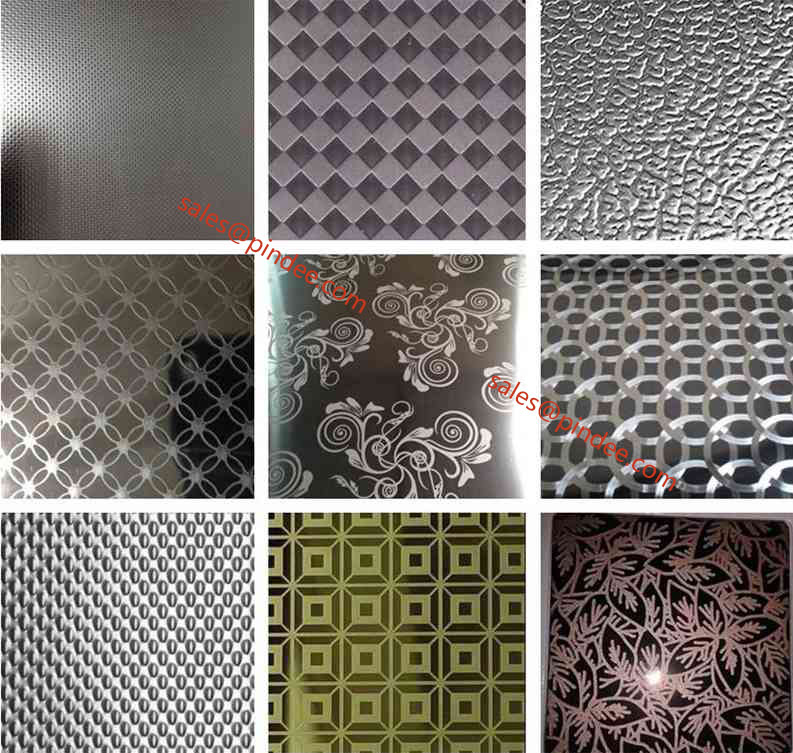

Pindee Steel is one of the branch company name from PINDEE. We conduct strict quality inspections to make sure that our products are 100% qualified, and our strong logistics and transportation capabilities sales our products to Chile,Peru,Colombia and USA. Welcome to inquiry from Pindee to purchase 304 stainless steel coil manufacture from China.including the stainless steel products of 200, 300, 400 series stainless steel coils/plates/sheets/strips. Which and what meets standard of JIS, ASTM, AS, EN, GB international supply standard conditions. There are many surface treatment methods, such as 2B, BA, 8K, HL, titanium, etching, embossing, etc. Support customization, reasonable price and quality.

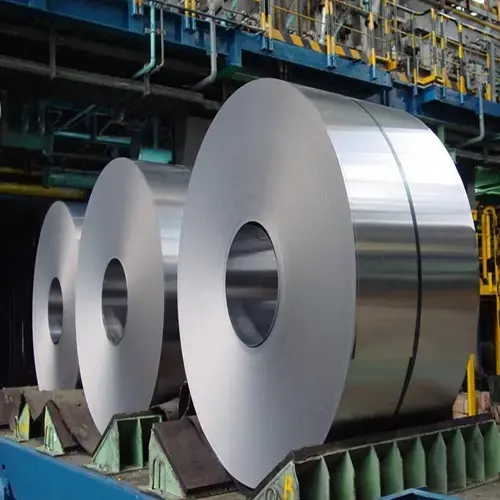

Specification of Stainless Steel Coil 304: Stainless Steel Coil 3.0mm 1219mm.Due to the high chromium content, type material 304 has excellent corrosion and oxidation resistance.Type 304 is often known as AISI304 stainless. It has good forming and welding properties. Meanwhile, it also has good deep drawing quality, excellent toughness, even down to cryonegic temperatures which are defined as very low temperatures. Type 304 is the most widely used stainless steel grade because it is easy to clean and fabrication.
Standard: ASTM A240/A480
Finish: No.1, 2D, 2B, No.4, No.5, HL, BA, Scotch Bright, Mirror
Edge: Slit or Mill
Protection: Paper or PVC
Customized Shape: Disc and up request
Application of Stainless Steel Coil 304: architectural paneling, railing, trim, pipe forming, chemical container, heat exchanger, food industry, woven or welded screens for mining, quarrying and water filtration
Specification of 304 stainless steel coil | |
Size | Cold Rolled: Thickness: 0.3 ~ 8.0mm; Width:1000 ~ 2000mm |
Hot Rolled: Thickness: 3.0 ~ 16.0mm; Width:1000 ~ 2500mm | |
Techniques | Cold Rolled, Hot Rolled |
Surface | 2B, BA, 8K, 6K, Mirror Finished, No.1, No.2, No.3, No.4, Hair Line with PVC |
Cold Rolled 304 Stainless Steel Coil in Stock | 304 2B Stainless Steel Coil 304 BA Stainless Steel Coil 304 No.4 Stainless Steel Coil |
Hot Rolled 304 Stainless Steel Coil in Stock | 304 No.1 Stainless Steel Coil |
Common Sizes of 304 Stainless Steel Sheet | 1000mm x 2000mm, 1200mm x 2400mm, 1219mm x 2438mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm, 1500mm x 6000mm, 1524mm x 3048mm, 2000mm x 6000mm |
Protective Film for 304 Coil (25μm ~ 200μm) | White and Black PVC film; Blue PE film, Transparent PE film, Other color or material are also available. |
Standard | ASTM A240, JIS G4304, G4305, GB/T 4237, GB/T 8165, BS 1449, DIN17460, DIN 17441, EN10088-2 |
The Common Thickness of Cold Rolled 304 Coil | |||||||||
0.3mm | 0.4mm | 0.5mm | 0.6mm | 0.7mm | 0.8mm | 0.9mm | 1.0mm | 1.2mm | 1.5mm |
1.8mm | 2.0mm | 2.5mm | 2.8mm | 3.0mm | 4.0mm | 5.0mm | 6.0mm | ||
The Common Thickness of Hot Rolled 304 Coil | ||||||||
3.0mm | 4.0mm | 5.0mm | 6.0mm | 8.0mm | 10.0mm | 12.0mm | 14.0mm | 16.0mm |
Surface | Description |
NO1 | Hot-rolled annealed and pickled. Surface presents silvery white, lackluster and coarseness. |
2D | Non-glossy cold-rolled, annealed and pickled. Surface presents silvery white glossiness and flatness. |
2B | Skinpass conducted on 2D, it has better gloss and surface flatness compared to NO.2D. |
BA | Cold rolled, bright annealed and skin-passed, the product have |
NO3 | Polished with abrasive belt of grit #100- #120 |
NO4 | Polished with abrasive belt of grit #150-#180, have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtube buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks. |
Product Specification and Size:
| ASTM | JIS | AISI | EN | Mill's Standard | |
| Grade | S30400 S44400 | SUS304 SUS444 | 304 444 | 14301 1.4521 | 201 202 204Cu3 |
Available Size:
| Width | Thickness | Inner Diameter | Available Steel Grade |
| 610~2000 mm | 2.5~10.0 mm | 610 +0/-5 mm | 201, 202, 304, 304L, 316L |
Chemical Composition & Mechanical Property:
| Spec. ASTM A240 | Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Other |
| S30400 | 8.0~10.5 | 17.5~19.5 | 0.07 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S30403 | 8.0~12.0 | 17.5~19.5 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S31603 | 10.0~14.0 | 16.0~18.0 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 2.0~3.0 | N: 0.1 Max. | |
| S43000 | 0.75 | 16.0~18.0 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |

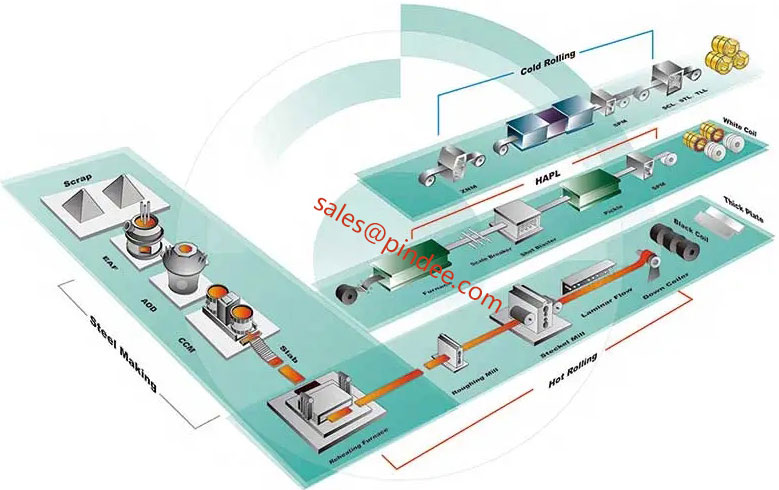

Stainless Steel Coil/Sheet Manufacturing Process

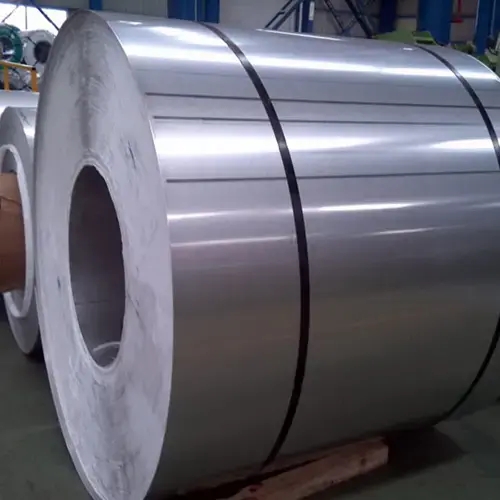

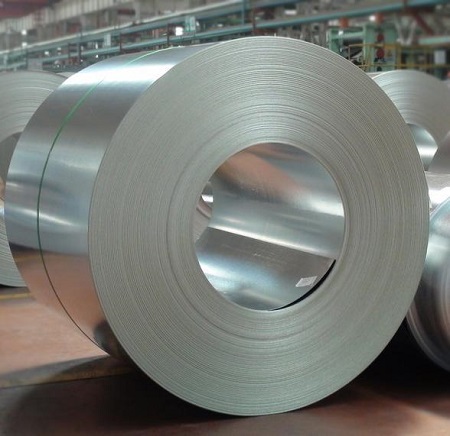

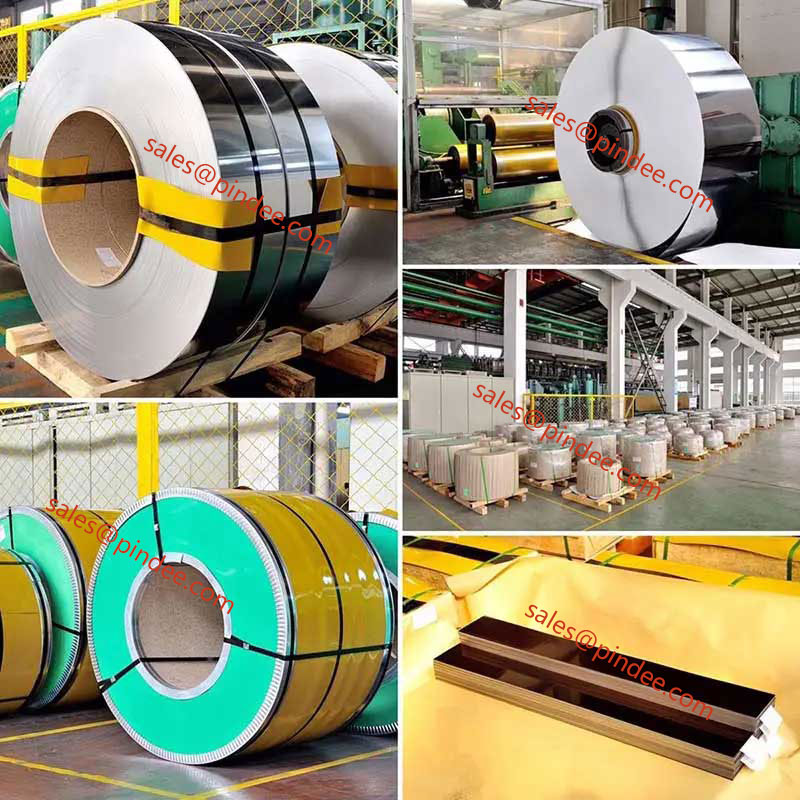

Stainless Steel Coil Sheet Product Detail

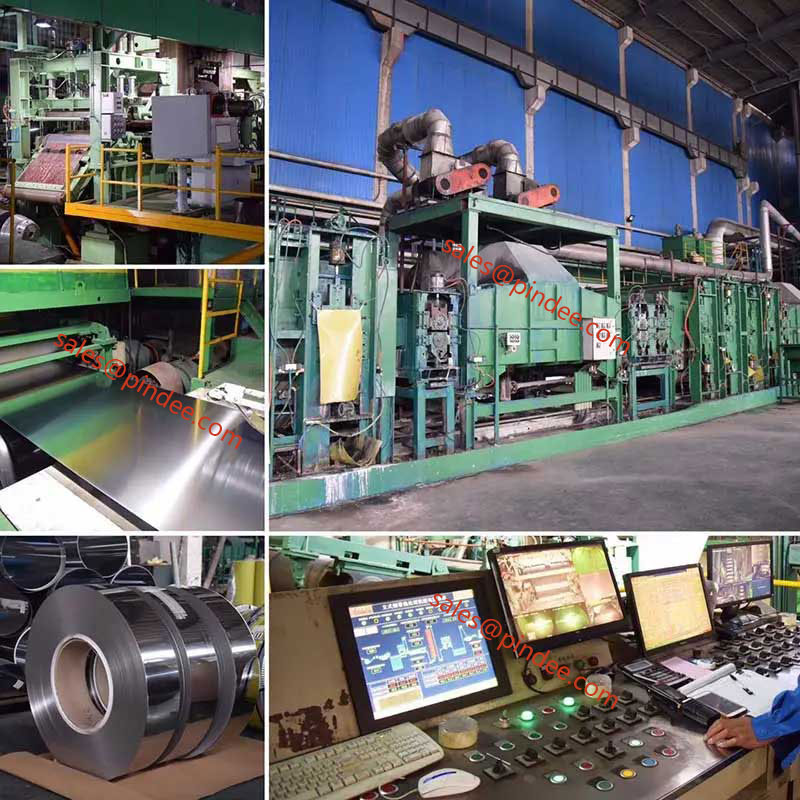

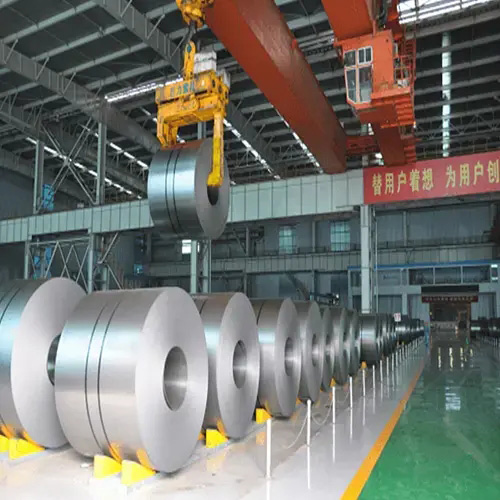

Stainless Steel Coil/Sheet Production Line

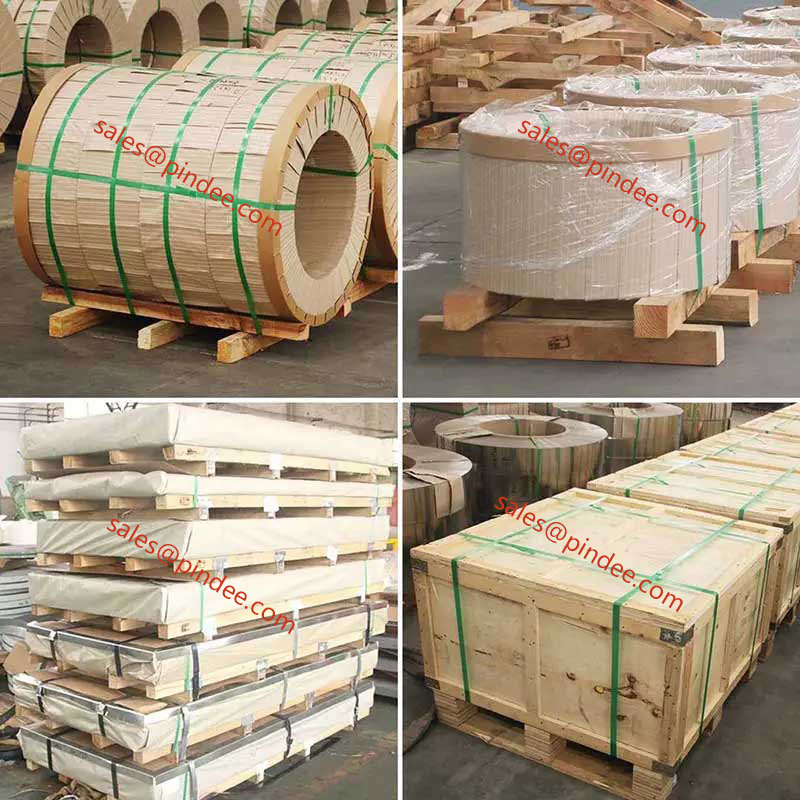

Stainless Steel Coil/Sheet Product Packaging
Applications of stainless steel coil
Beer kegs, bellows, chemical equipment, coal hopper linings, cooking equipment, cooling coils, cryogenic vessels, dairy equipment, evaporators, flatware utensils, feedwater tubing, flexible metal hose, food processing equipment, hospital surgical equipment, hypodermic needles, kitchen sinks, marine equipment and fasteners, nuclear vessels, oil well filter screens, refrigeration equipment, paper industry, pots and pans, pressure vessels, sanitary fittings, valves, shipping drums, spinning, still tubes, textile dyeing equipment, tubing.
