Product Description
Pindee Steel is one of the China Wholesale 201 Stainless Steel Coil Which meets JIS, ASTM, AS, EN, GB international supply standard conditions.including the stainless steel products of series of 200, 300, 400 stainless steel coils/plates/sheets/strips.Support customization, reasonable price and quality. We perform strictly quality inspections to make sure that our products are 100% satisfied with our customers, and our strong logistics and transportation capabilities export our stainless steel coils/plates/sheets/strips to all overeas. Some of many surface treatment technologies, such as surface treament 2B, BA, 8K, HL, titanium, etching, embossing, etc. Welcome to inquriy from us and send us an inquiry: sales@pindee.com, we Pindee welcome you to purchase stainless steel.
Specification of Pindee Steel Coil material 201: our material of 201 stainless steel coil suppliers uses a combination of chromium, nickel, And reducing the amount of nickel required for production with manganese. it will make it much competitive in general than the Mat 304. There are a few variations of 201:
201 J1 | 201 J3 | 201 J4 | L1 | L4 | 201 LH | 201 H |
Ni 1% Cu 0.8% | Ni 1% Cu 0.5% | Ni 1% Cu 1.3% | = 201 J4 | = 202 Ni 4% | Ni 0.3% | High Cu |
American Standard: ASTM A240/A480
Coils and sheets Finish: No.1, 2D, 2B, No.4, No.5, HL, BA, Scotch Bright, Mirror
Mill Edge: Slit or Mill
Protection: Paper or PVC
Customized Shape: Disc and up request
Applications of Stainless Steel Coil of the material 201: pipe making, mechanical construction, furnishing, building decoration, and kitchen utensils
Grade: | AISI 304, AISI 304L, AISI 430, AISI 316L, 202, 201, AISI 301, AISI 409L |
Surface: | 2D, 2B, BA, NO 1, NO 3, NO 4, HL, HairLine, NO.8 (MIRROR), Ethching. |
| Standards: | ASTM A240, ASTM A480, JIS G4303, BS 1449, DIN17441, G4305 |
Thickness: | Cold-Rolled 0.1mm~3.0mm |
Width: | 1000MM, 1219MM, 1250MM, 1500MM, Max 1524mm (5ft) |
Length: | 2000MM, 2438MM, 2500MM, 3000MM, Max 6000mm |
Surface | Description |
NO1 | Hot-rolled annealed and pickled. Surface presents silvery white, lackluster and coarseness. |
2D | Non-glossy cold-rolled, annealed and pickled. Surface presents silvery white glossiness and flatness. |
2B | Skinpass conducted on 2D, it has better gloss and surface flatness compared to NO.2D. |
BA | Cold rolled, bright annealed and skin-passed, the product have |
NO3 | Polished with abrasive belt of grit #100- #120 |
NO4 | Polished with abrasive belt of grit #150-#180, have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtube buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks. |
Product Specification and Size:
| ASTM | JIS | AISI | EN | Mill's Standard | |
| Grade | S30400 S44400 | SUS304 SUS444 | 304 444 | 14301 1.4521 | 201 202 204Cu3 |
Available Size:
| Width | Thickness | Inner Diameter | Available Steel Grade |
| 610~2000 mm | 2.5~10.0 mm | 610 +0/-5 mm | 201, 202, 304, 304L, 316L |
Chemical Composition & Mechanical Property:
| Spec. ASTM A240 | Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Other |
| S30400 | 8.0~10.5 | 17.5~19.5 | 0.07 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S30403 | 8.0~12.0 | 17.5~19.5 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S31603 | 10.0~14.0 | 16.0~18.0 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 2.0~3.0 | N: 0.1 Max. | |
| S43000 | 0.75 | 16.0~18.0 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |
Stainless steel Product Display
Pindee steel located in China is a stainless steel with some of surface,201 stainless steel coil made in China, It is widely used in various industries and is an important material in modern industry.heat resistance,corrosion resistance, heat resistance, corrosion resistance, high weldability, polishability and other characteristics.
Stainless steel is divided into ferritic stainless steel,martensitic stainless steel, , austenitic stainless steel,and duplex stainless steel according to the structure state.
Austenitic Stainless Steel Introduction:
What Steel contains Cr≈19%, Ni≈9%-26% and C≈0.14%, stainless steel with an austenitic structure at room temperature.Steel has high toughness and plasticity, but low strength.
Martensitic Stainless Steel Introduction:
A steel whose mechanical properties can be adjusted by heat treatment.It has different strength and toughness at different tempering temperatures.
Duplex stainless steel Introduction:
Austenitic and ferrite each account for about half of the structure.Some steels also contain alloying elements such as Mo, Cu, Si, Nb, Ti, and N.When the C content is low, the Cr content is 16% to 26%, and the Ni content is 3% to 10% . This type of steel has the characteristics of austenitic and ferritic stainless steel
Ferritic Stainless Steel
This type of steel has the characteristics of large thermal conductivity, small expansion coefficient, good oxidation resistance, and excellent stress corrosion resistance.This type of steel generally does not contain nickel, and sometimes contains a small amount of Mo, Ti, Nb and other elements.It contains 14% to 31% chromium and has a body-centered cubic crystal structure.

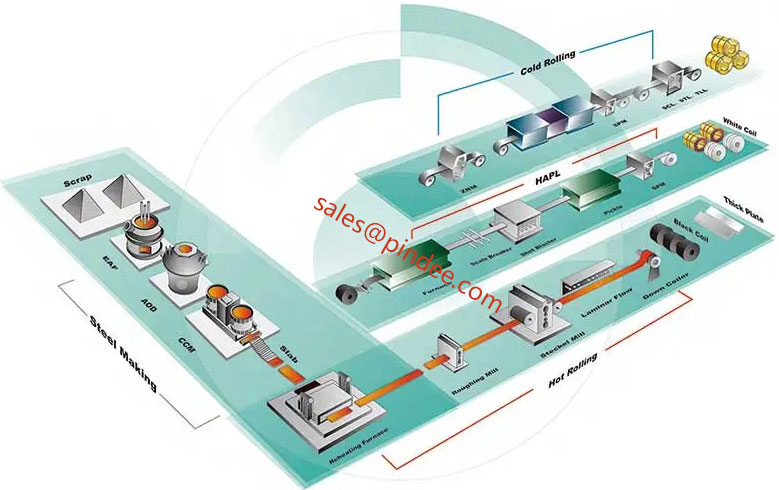

Stainless Steel Coil/Sheet Manufacturing Process

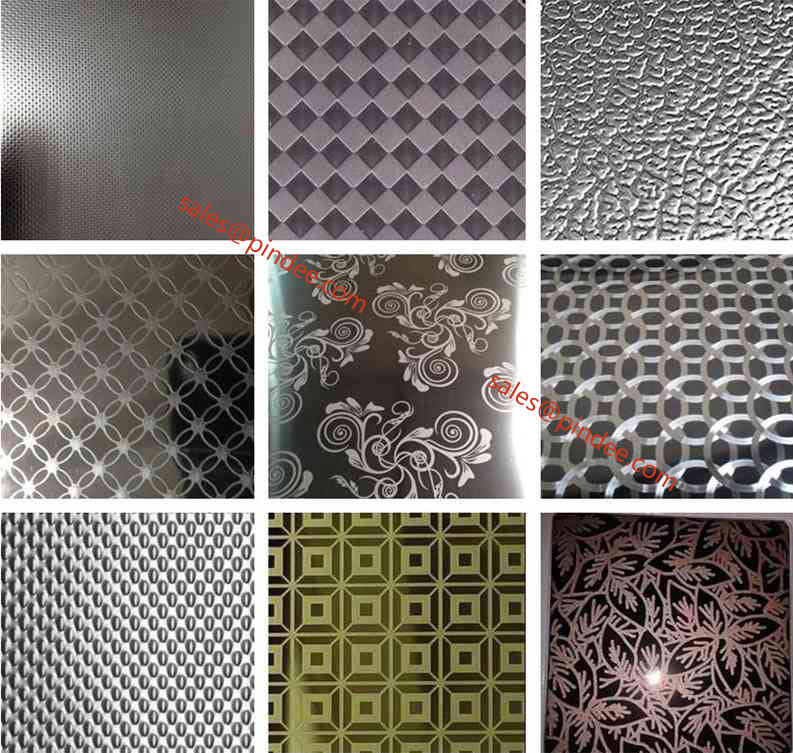

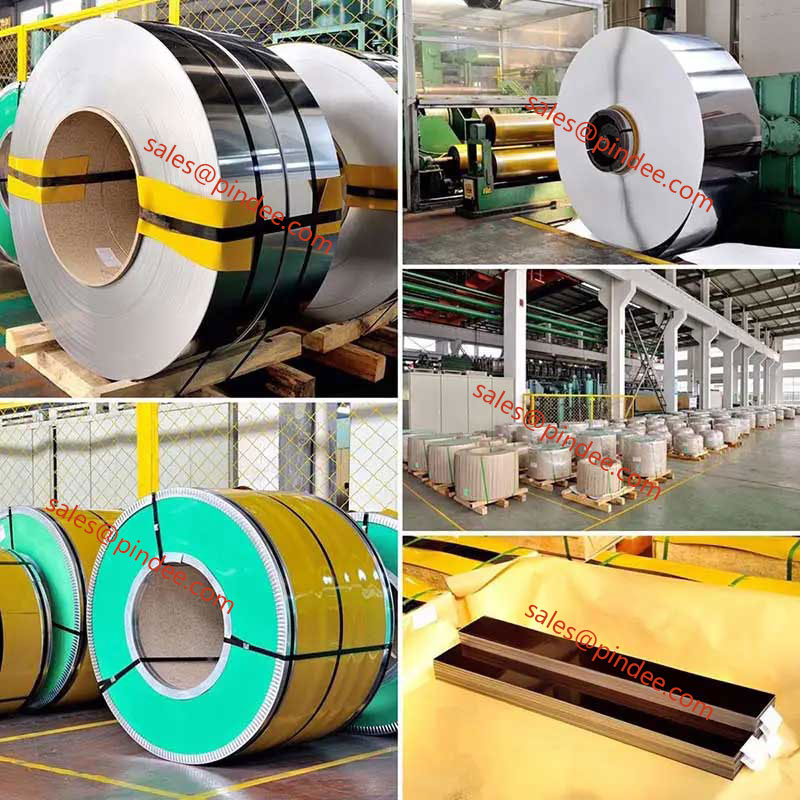

Stainless Steel Coil Sheet Product Detail

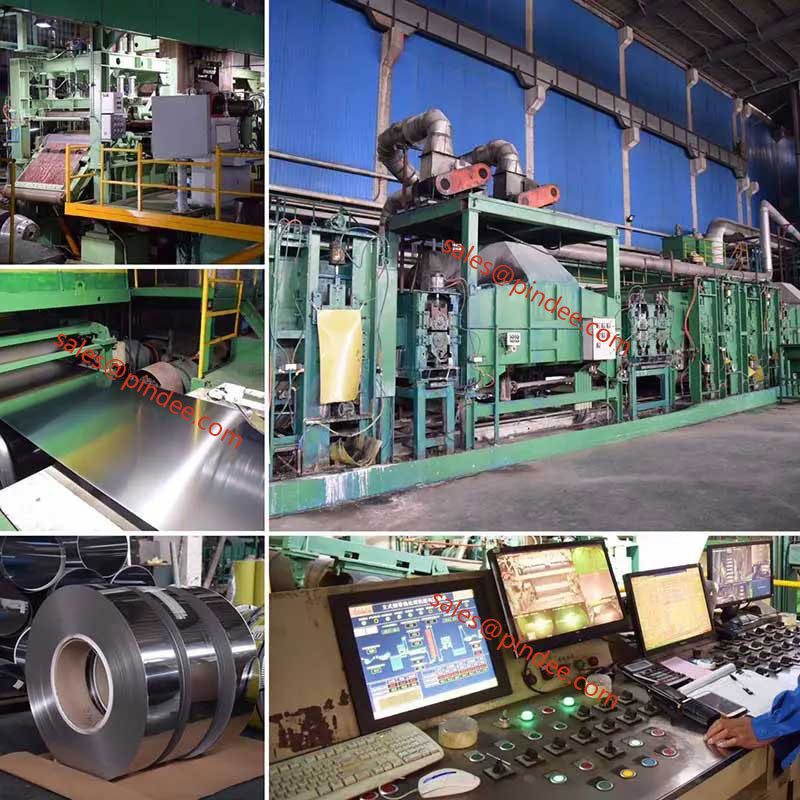

Stainless Steel Coil/Sheet Production Line

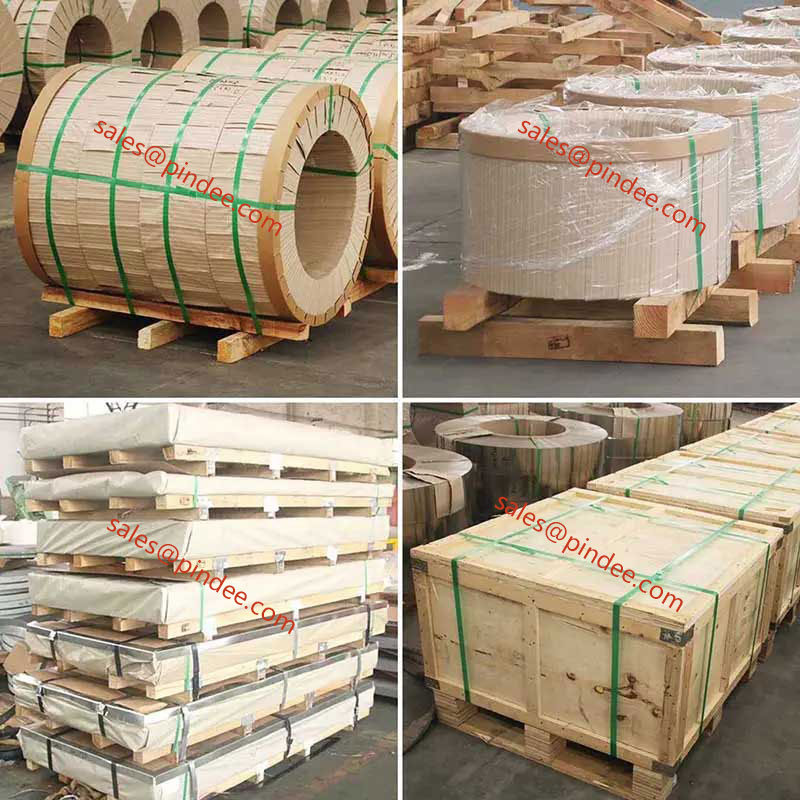

Stainless Steel Coil/Sheet Product Packaging
Applications of stainless steel coil
Cooking equipment, flexible metal hose, food processing equipment, hospital surgical equipment, hypodermic needles, kitchen sinks, marine equipment and fasteners,cooling coils, cryogenic vessels, dairy equipment, evaporators, flatware utensils, feedwater tubing,Beer kegs, bellows, chemical equipment, coal hopper linings, nuclear vessels, oil well filter screens, refrigeration equipment, paper industry, pots and pans, pressure vessels, sanitary fittings, valves, shipping drums, spinning, still tubes, textile dyeing equipment, tubing.
