Product Description

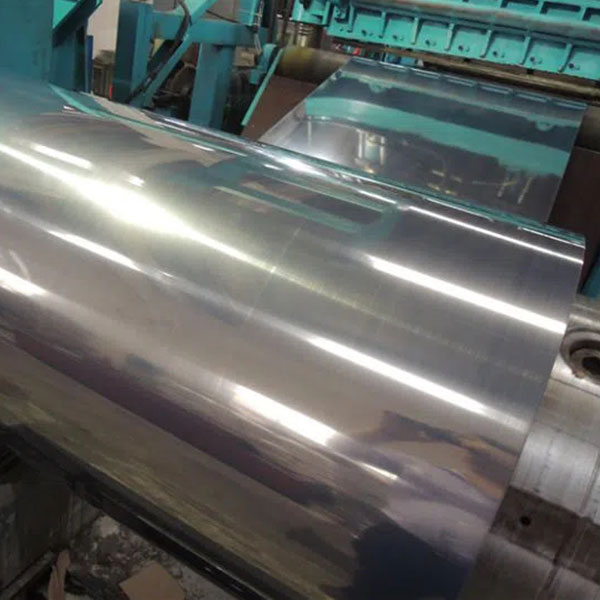

430 Stainless steel coils from Pindee Steel offen constantly partitioned into two types, Pindee steel stock 430 stainless steel coil manufacture from China named cold rolled and hot rolled stainless steel 430 coils.
Cold rolled coils are commonly utilized with a polished finish, brushed finish(hairline finish), and bright annealed finish, and mirror finish(8K finish). Generally Speaking we will always call them 430 2B stainless steel coil, 430 BA stainless steel coil, 430 No.4 stainless steel coil, and mirror finish 430 stainless steel coils.AISI 430 stainless steel, also known as 1.4016 stainless steel, is the most common ferritic stainless steel grade in the world.
430 stainless steel coil suppliers is available in a wide range of sizes and thicknesses from stock. It has good formability and weldability characteristics with minimal distortion or warpage during welding processes. 430 stainless steel coil contains no less than 16% chromium, which makes it own better corrosion resistance and grade 430 is generally utilized for various applications, such as sinks, restaurant equipment, roofing, food-handling equipment, elevator, dishwashers, ovens, refrigerators, skewers, mostly indoors.Welcome to Pindee to purchase stainless steel to our email address:sales@pindee.com
Specification of Stainless Steel 430 Coil: Type 430 belongs to Martensitic. It has high chromium but very low nickel content. Chromium content is between 16 -18%, while nickel content is 0.5% max. There's a maximum 1% of manganese, 0.12% carbon, and 0.03% of sulfur and 0.04% phosphorous. Because of lower nickel content, stainless steel 430 has much cheaper price than 304 and 316, which makes it one of the most common stainless steel grade used among our daily lives.
Standard: ASTM A240/A480
Finish: No1, 2D, 2B, No.4, No.5, HL, BA, Scotch Bright, Mirror
Edge: Slit or Mill
Protection: Paper or PVC
Customized Shape: Disc and up request
Application of Stainless Steel 430 Coil: tube making, fabrication for kitchen, cooking ware, utensils, furniture, windshield wiper wire, brushing wire and screws
430 Stainless Steel Coil Specifications:
| Grades | Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316Ti, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L |
| Thickness | 0.02mm – 5.0mm |
| Width | 3.2mm – 1500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT |
| Form | Coil / Strip |
| Finish | NO1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
Chemical Composition of Stainless Steel 430 Coil
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | |
| 430 | Min | – | – | – | – | – | 16.0 | – | – |
| max | 0.12 | 1.00 | 1.00 | 0.040 | 0.030 | 18.0 | 0.75 | – |
ASTM A240 SS 430 Coil Mechanical Properties
| Grades | SS 430 |
| Tensile Strength (MPa) min | 450 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 22 |
| Hardness Rockwell B (HR B) max | 89 |
| Hardness Brinell (HB) max | 183 |
Surface | Description |
NO1 | Hot-rolled annealed and pickled. Surface presents silvery white, lackluster and coarseness. |
2D | Non-glossy cold-rolled, annealed and pickled. Surface presents silvery white glossiness and flatness. |
2B | Skinpass conducted on 2D, it has better gloss and surface flatness compared to NO.2D. |
BA | Cold rolled, bright annealed and skin-passed, the product have |
NO3 | Polished with abrasive belt of grit #100- #120 |
NO4 | Polished with abrasive belt of grit #150-#180, have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtube buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks. |
Product Specification and Size:
| ASTM | JIS | AISI | EN | Mill's Standard | |
| Grade | S30400 S44400 | SUS304 SUS444 | 304 444 | 14301 1.4521 | 201 202 204Cu3 |
Available Size:
| Width | Thickness | Inner Diameter | Available Steel Grade |
| 610~2000 mm | 2.5~10.0 mm | 610 +0/-5 mm | 201, 202, 304, 304L, 316L |
Chemical Composition & Mechanical Property:
| Spec. ASTM A240 | Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Other |
| S30400 | 8.0~10.5 | 17.5~19.5 | 0.07 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S30403 | 8.0~12.0 | 17.5~19.5 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S31603 | 10.0~14.0 | 16.0~18.0 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 2.0~3.0 | N: 0.1 Max. | |
| S43000 | 0.75 | 16.0~18.0 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |

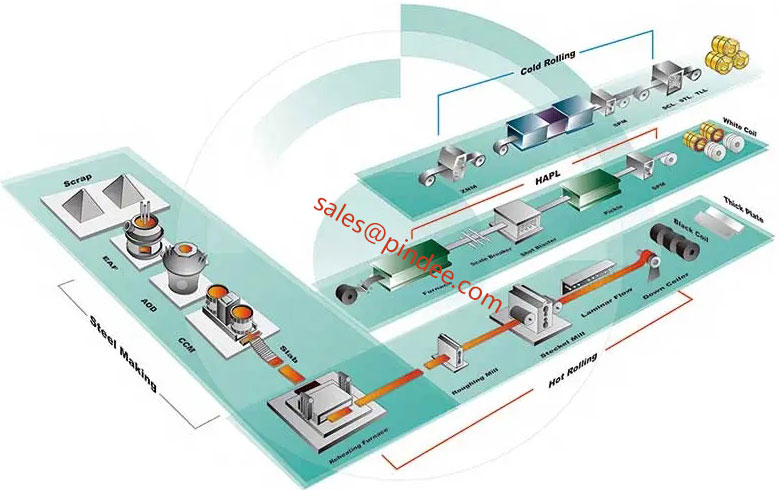

Stainless Steel Coil/Sheet Manufacturing Process

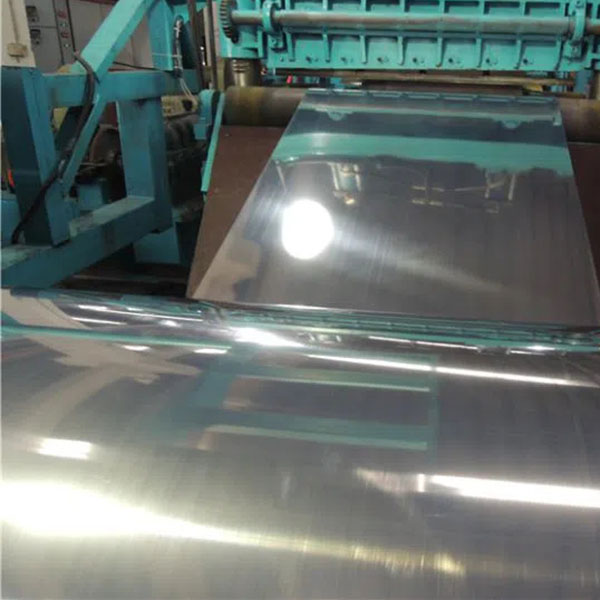

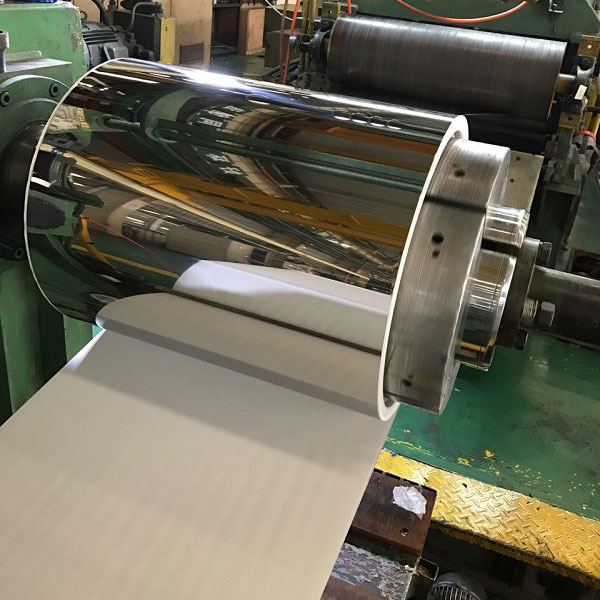

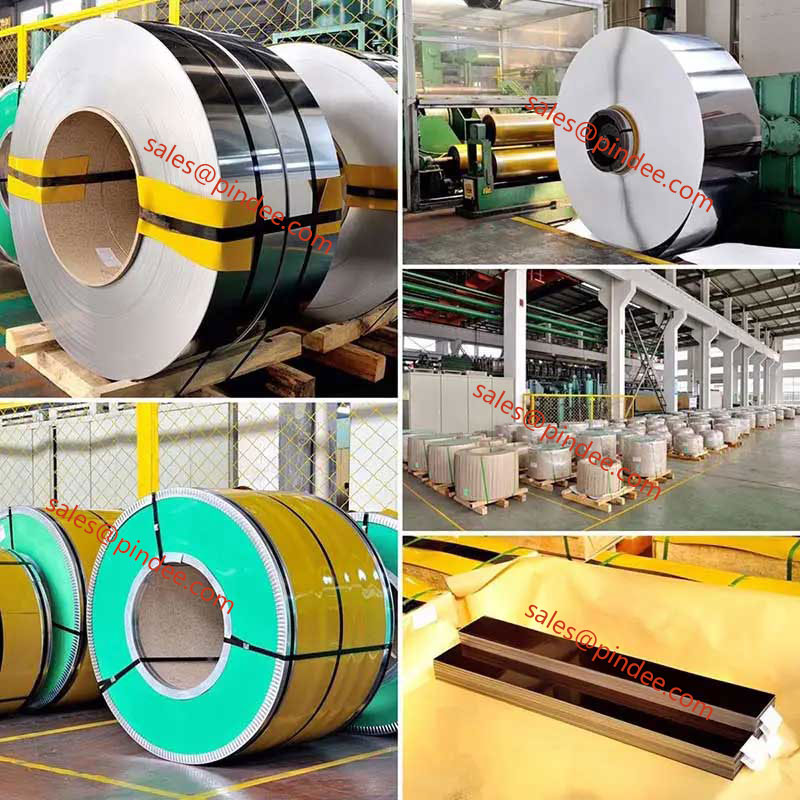

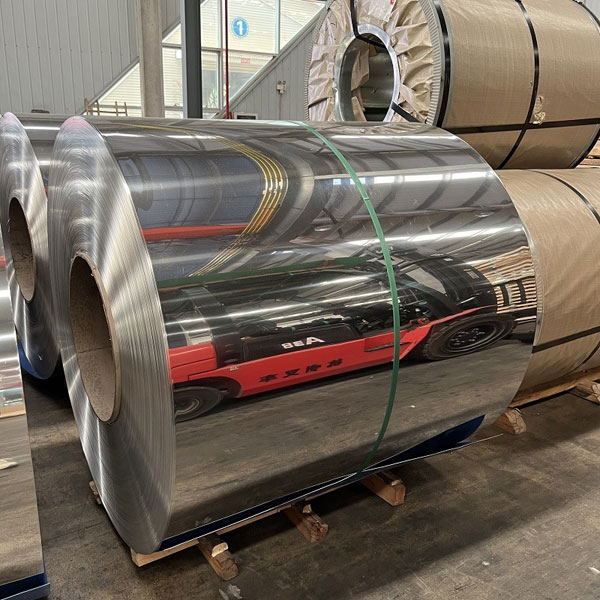

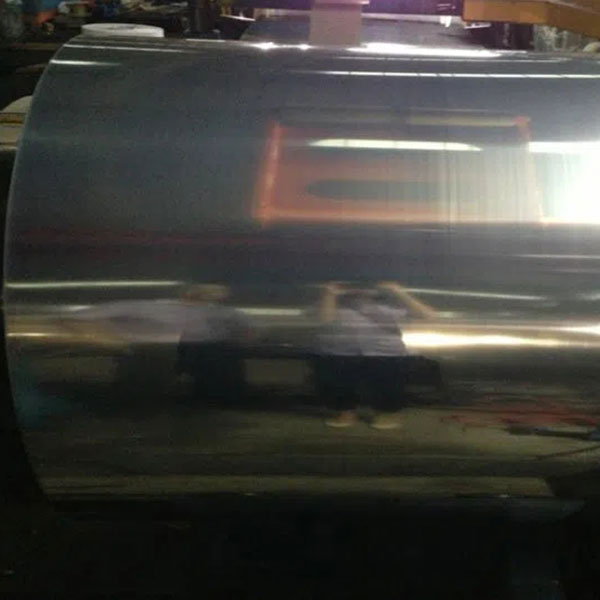

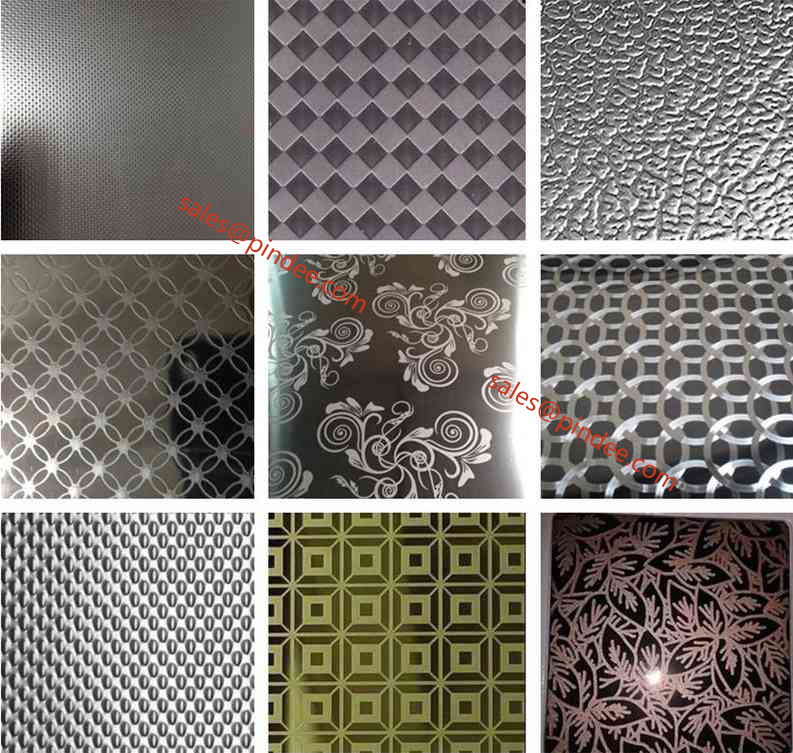

Stainless Steel Coil Sheet Product Detail

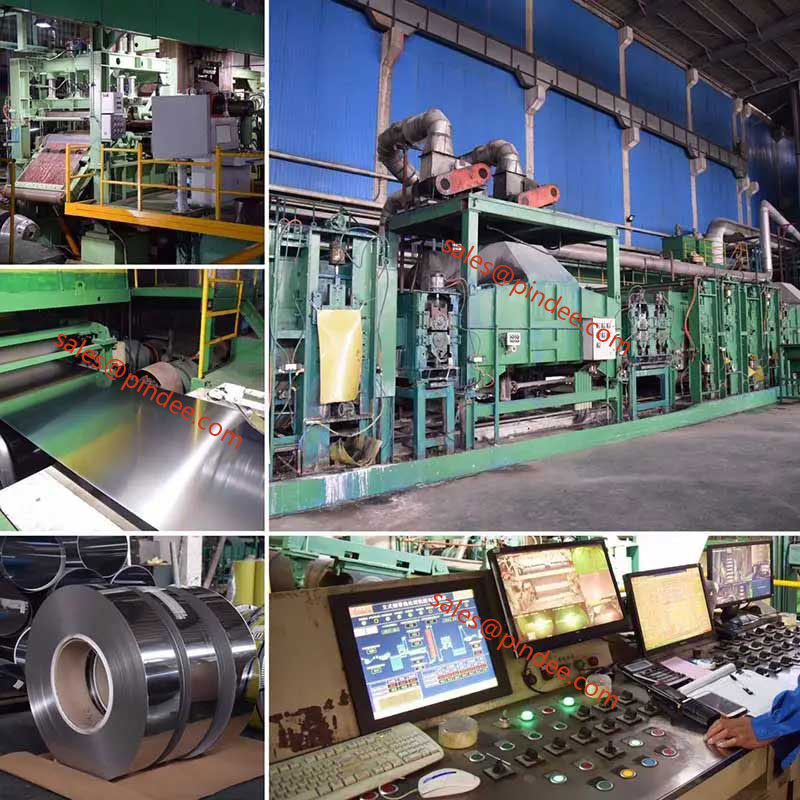

Stainless Steel Coil/Sheet Production Line

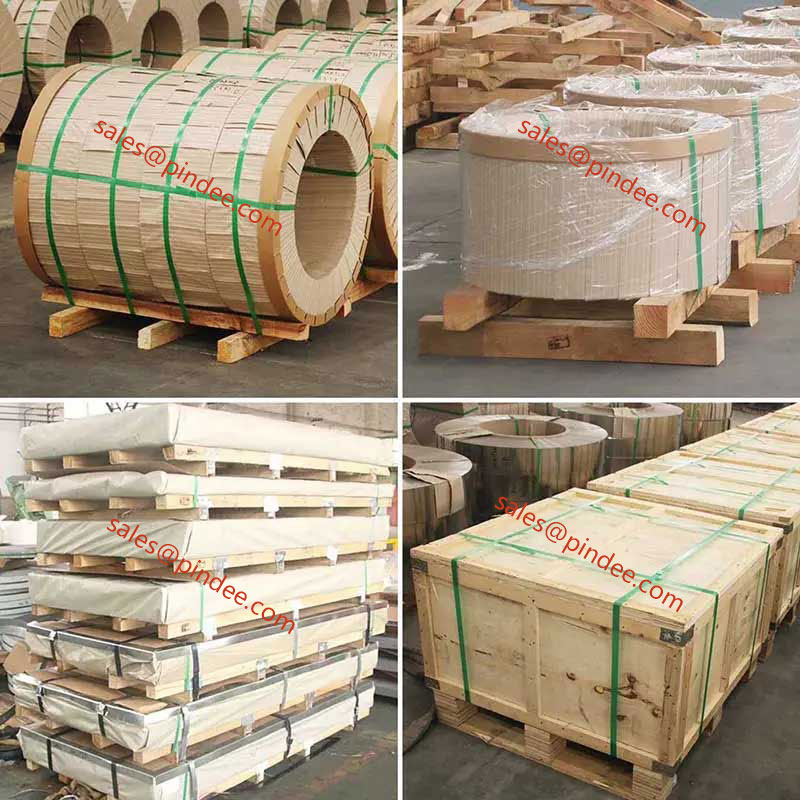

Stainless Steel Coil/Sheet Product Packaging
Applications of stainless steel coil
Beer kegs, bellows, chemical equipment, coal hopper linings, cooking equipment, cooling coils, cryogenic vessels, dairy equipment, evaporators, flatware utensils, feedwater tubing, flexible metal hose, food processing equipment, hospital surgical equipment, hypodermic needles, kitchen sinks, marine equipment and fasteners, nuclear vessels, oil well filter screens, refrigeration equipment, paper industry, pots and pans, pressure vessels, sanitary fittings, valves, shipping drums, spinning, still tubes, textile dyeing equipment, tubing.
