Product Description
Pindee Steel is one of the branch company from Pindee what we manufacture quality investigations to guarantee that all of our stainless steel coils and sheets are 100 percent satisfied with our customers, and our solid operations and transportation capacities send out our items to everywhere.Included hot sale of the stainless steel products of 200, 300, 400 series stainless steel coils/plates/sheets/strips. Which meets JIS, ASTM, AS, EN, GB worldwide stockpile standard circumstances. AISI 316 Stainless Steel Coil manufacture from China.There are many surface treatment advancements, for example, 2B, BA, 8K, HL, titanium, drawing, decorating, and so on. Support customization, sensible cost and quality. Welcome to Pindee to purchase stainless steel to our email address:sales@pindee.com
Specification of Stainless Steel Coil 316: Type 316 compared to 304, it has addition of molybdenum and slightly higher nickel content. AISI 316 Stainless Steel Coil suppliers.The resultant composition of 316 gives the steel much increased corrosion resistance in many aggressive environments. The molybdenum makes the steel more resistant to pitting and crevice corrosion in chloride-contaminated media, sea water and acetic acid vapours. The lower rate of general corrosion in mildly corrosive environments gives the steel good atmospheric corrosion resistance in polluted marine atmospheres.
Standard: ASTM A240/A480

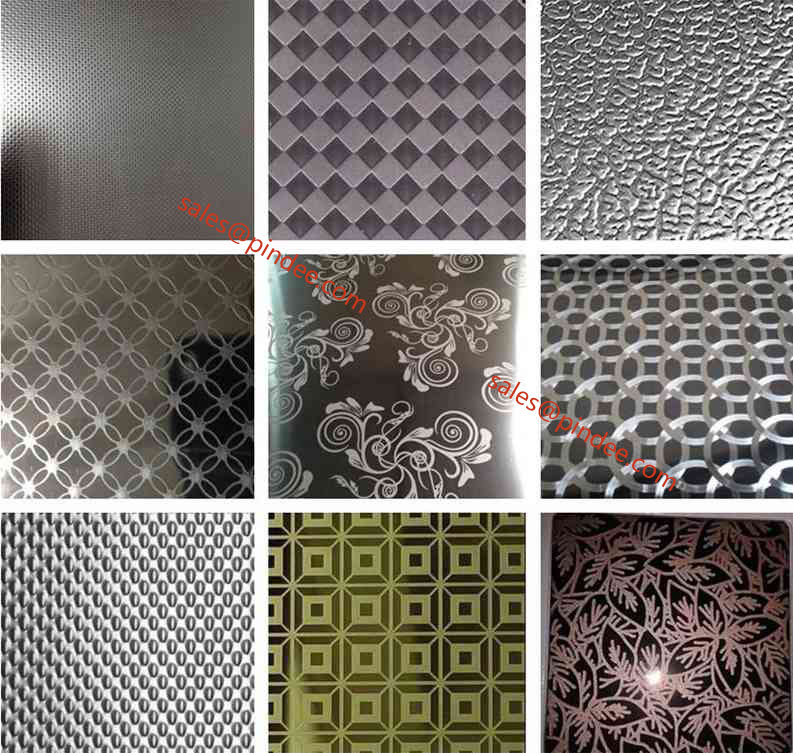

Finish: No.1, 2D, 2B, No.4, No.5, HL, BA, Scotch Bright, Mirror
Edge: Slit or Mill
Protection: Paper or PVC
Customized Shape: Disc and up request
Application of Stainless Steel Coil 316: bolt and but, weaving wire, chemical use, food sector, mining, architecture, pharmaceutical and petroleum industries.
Specification of 316 Stainless Steel Coil | |
Size | Cold Rolled: Thickness: 0.3 ~ 8.0mm; Width:1000 ~ 2000mm |
Hot Rolled: Thickness: 3.0 ~ 16.0mm; Width:1000 ~ 2500mm | |
Techniques | Cold Rolled, Hot Rolled |
Surface | 2B, BA, 8K, 6K, Mirror Finished, No.1, No.2, No.3, No.4, Hair Line with PVC |
Cold Rolled 316 Stainless Steel Coil in Stock | 316 2B Stainless Steel Coil 316 BA Stainless Steel Coil 316 No.4 Stainless Steel Coil |
Hot Rolled 316 Stainless Steel Coil in Stock | 316 No.1 Stainless Steel Coil |
Common Sizes of 316 Stainless Steel Sheet | 1000mm x 2000mm, 1200mm x 2400mm, 1219mm x 2438mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm, 1500mm x 6000mm, 1524mm x 3048mm, 2000mm x 6000mm |
Protective Film for 316 Coil (25μm ~ 200μm) | White and Black PVC film; Blue PE film, Transparent PE film, Other color or material are also available. |
Standard | ASTM A240, JIS G4304, G4305, GB/T 4237, GB/T 8165, BS 1449, DIN17460, DIN 17441, EN10088-2 |
The Common Thickness of Cold Rolled 316 Coil | |||||||||
0.3mm | 0.4mm | 0.5mm | 0.6mm | 0.7mm | 0.8mm | 0.9mm | 1.0mm | 1.2mm | 1.5mm |
1.8mm | 2.0mm | 2.5mm | 2.8mm | 3.0mm | 4.0mm | 5.0mm | 6.0mm | ||
The Common Thickness of Hot Rolled 316 Coil | ||||||||
3.0mm | 4.0mm | 5.0mm | 6.0mm | 8.0mm | 10.0mm | 12.0mm | 14.0mm | 16.0mm |
Surface | Description |
NO1 | Hot-rolled annealed and pickled. Surface presents silvery white, lackluster and coarseness. |
2D | Non-glossy cold-rolled, annealed and pickled. Surface presents silvery white glossiness and flatness. |
2B | Skinpass conducted on 2D, it has better gloss and surface flatness compared to NO.2D. |
BA | Cold rolled, bright annealed and skin-passed, the product have |
NO3 | Polished with abrasive belt of grit #100- #120 |
NO4 | Polished with abrasive belt of grit #150-#180, have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtube buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks. |
Product Specification and Size:
| ASTM | JIS | AISI | EN | Mill's Standard | |
| Grade | S30400 S44400 | SUS304 SUS444 | 304 444 | 14301 1.4521 | 201 202 204Cu3 |
Available Size:
| Width | Thickness | Inner Diameter | Available Steel Grade |
| 610~2000 mm | 2.5~10.0 mm | 610 +0/-5 mm | 201, 202, 304, 304L, 316L |
Chemical Composition & Mechanical Property:
| Spec. ASTM A240 | Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Other |
| S30400 | 8.0~10.5 | 17.5~19.5 | 0.07 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S30403 | 8.0~12.0 | 17.5~19.5 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S31603 | 10.0~14.0 | 16.0~18.0 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 2.0~3.0 | N: 0.1 Max. | |
| S43000 | 0.75 | 16.0~18.0 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |

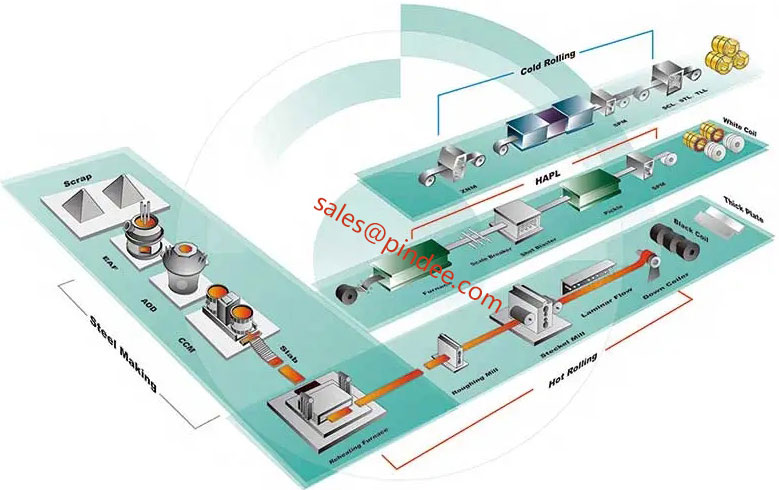

Stainless Steel Coil/Sheet Manufacturing Process

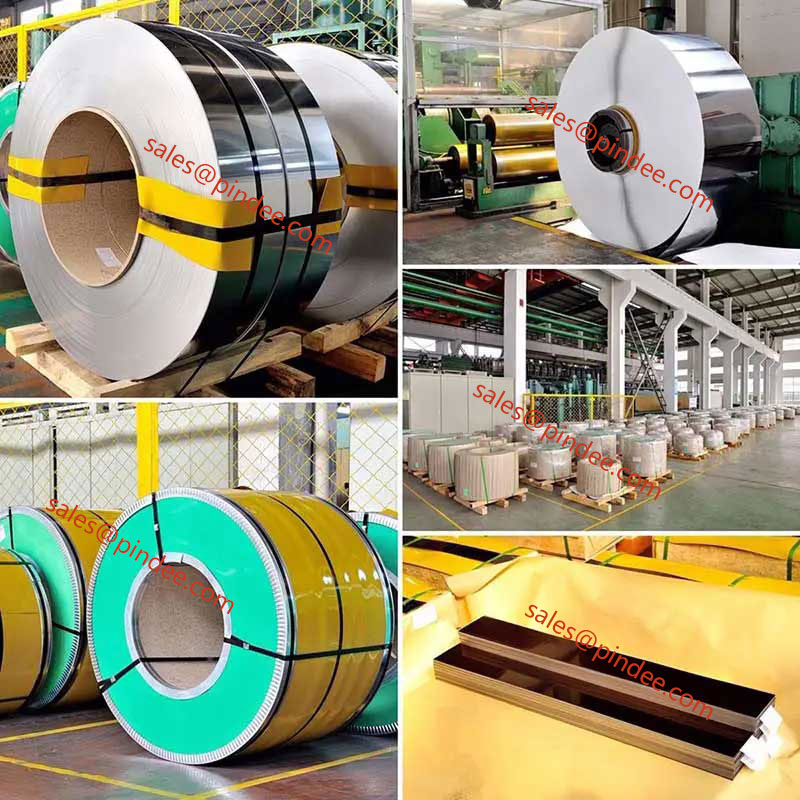

Stainless Steel Coil Sheet Product Detail
Stainless Steel Coil/Sheet Production Line

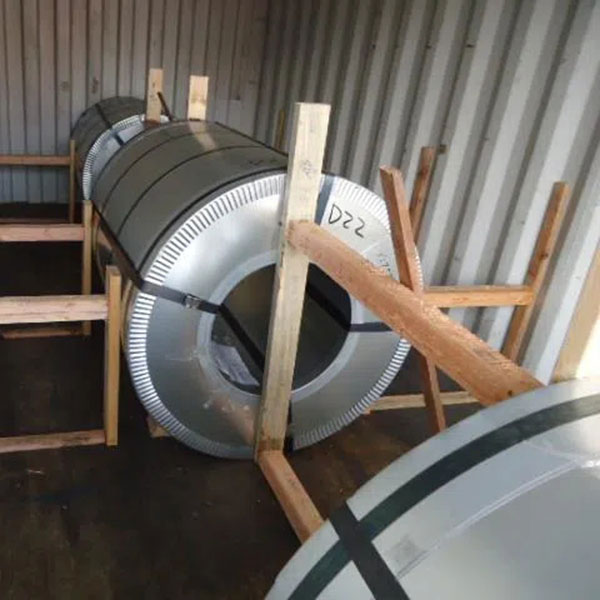

Stainless Steel Coil/Sheet Product Packaging
Applications of stainless steel coil
Stainless steel coil factory made in China.Beer kegs, bellows, chemical equipment, coal hopper linings, cooking equipment, cooling coils, cryogenic vessels, dairy equipment, evaporators, flatware utensils, feedwater tubing, flexible metal hose, food processing equipment, hospital surgical equipment, hypodermic needles, kitchen sinks, marine equipment and fasteners, nuclear vessels, oil well filter screens, refrigeration equipment, paper industry, pots and pans, pressure vessels, sanitary fittings, valves, shipping drums, spinning, still tubes, textile dyeing equipment, tubing.
