Product Description
Pindee Steel included hot sale of the JIS, ASTM, AS, EN, GB stainless steel products of 200, 300, 400 series stainless steel coils/plates/sheets/strips. We produce many international used surface treatment advancements, for example, Stainless Steel Hot Rolled Coil manufacture from China,2B, BA, 8K, HL, titanium, drawing, decorating, and so on. 430 stainless steel is under good corrosion resistance,Normal-used steel, which is better thermal conductivity than austenitic stainless steel, they are thermal expansion coefficient is smaller than the austenitic stainless steel, due to adding stabilized element titanium,is resistant to thermal fatigue, has good mechanical properties on welding position. Welcome to Pindee to purchase stainless steel to our email address:sales@pindee.com
Specification of Stainless Steel Hot Rolled Coil: Stainless Steel Hot Rolled Coil suppliers, Hot rolled steel is steel that has been roll-pressed at very high temperatures,Grade 430 stainless steel coil is a pure chromium,ferrite,non-hardenable grade that combines good corrosion resistance and formability characteristics with useful mechanical properties. Its protection from consumption by nitric corrosive permits it to be utilized in unambiguous compound applications, however auto insides and electrical parts address its biggest application regions.
ASTM A240/A480(304/304L, 316/316L, 409, 430, 439, 301, 310, 321, 410, 420J2, 409L, 439, 441, 444, 201, 202)
JIS G4304/G4305(SUS304, 304L, SUS316, 316L)
EN10088-2 / EN10028-7/ DIN 17440/17441(1.4301/1.4306, 1.4401/1.4404, 1.4016, 1.4510, 1.4512, 1.4509, 1.4201, 1.4372)
Finish: NO1
Edge: Slit or Mill
Surface | Description |
NO1 | Hot-rolled annealed and pickled. Surface presents silvery white, lackluster and coarseness. |
2D | Non-glossy cold-rolled, annealed and pickled. Surface presents silvery white glossiness and flatness. |
2B | Skinpass conducted on 2D, it has better gloss and surface flatness compared to NO.2D. |
BA | Cold rolled, bright annealed and skin-passed, the product have |
NO3 | Polished with abrasive belt of grit #100- #120 |
NO4 | Polished with abrasive belt of grit #150-#180, have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtube buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks. |
Product Specification and Size:
| ASTM | JIS | AISI | EN | Mill's Standard | |
| Grade | S30400 S44400 | SUS304 SUS444 | 304 444 | 14301 1.4521 | 201 202 204Cu3 |
Available Size:
| Width | Thickness | Inner Diameter | Available Steel Grade |
| 610~2000 mm | 2.5~10.0 mm | 610 +0/-5 mm | 201, 202, 304, 304L, 316L |
Chemical Composition & Mechanical Property:
| Spec. ASTM A240 | Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Other |
| S30400 | 8.0~10.5 | 17.5~19.5 | 0.07 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S30403 | 8.0~12.0 | 17.5~19.5 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | - | N: 0.1 Max. | |
| S31603 | 10.0~14.0 | 16.0~18.0 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 2.0~3.0 | N: 0.1 Max. | |
| S43000 | 0.75 | 16.0~18.0 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |

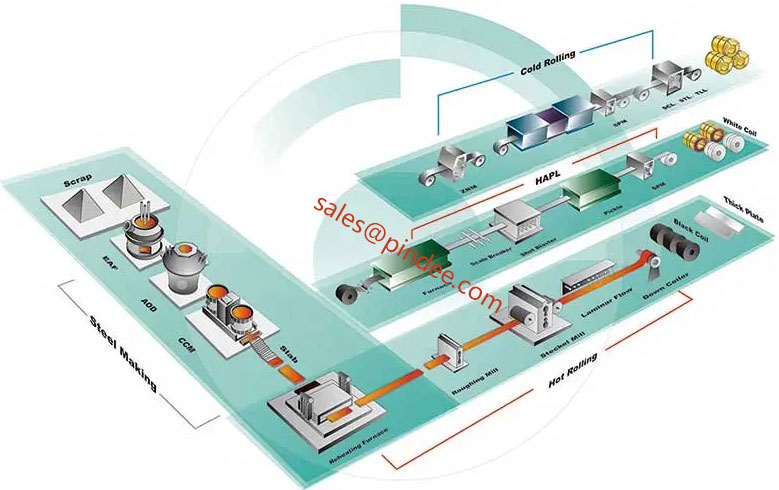

Stainless Steel Coil/Sheet Manufacturing Process

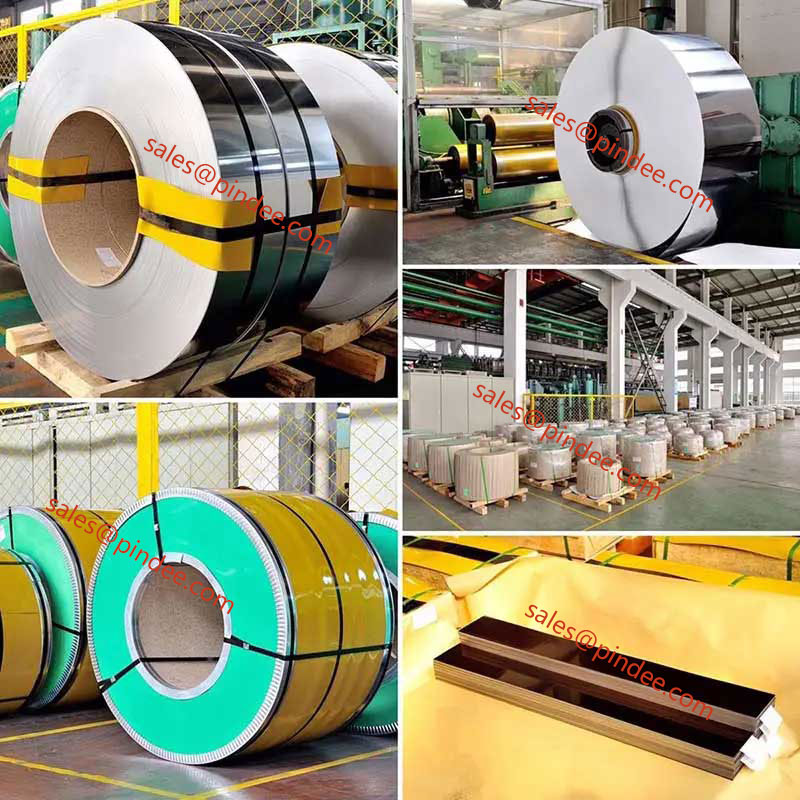

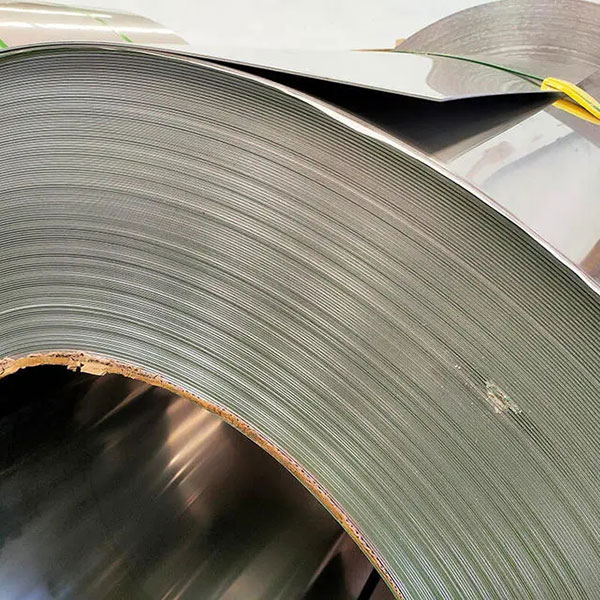

Stainless Steel Coil Sheet Product Detail

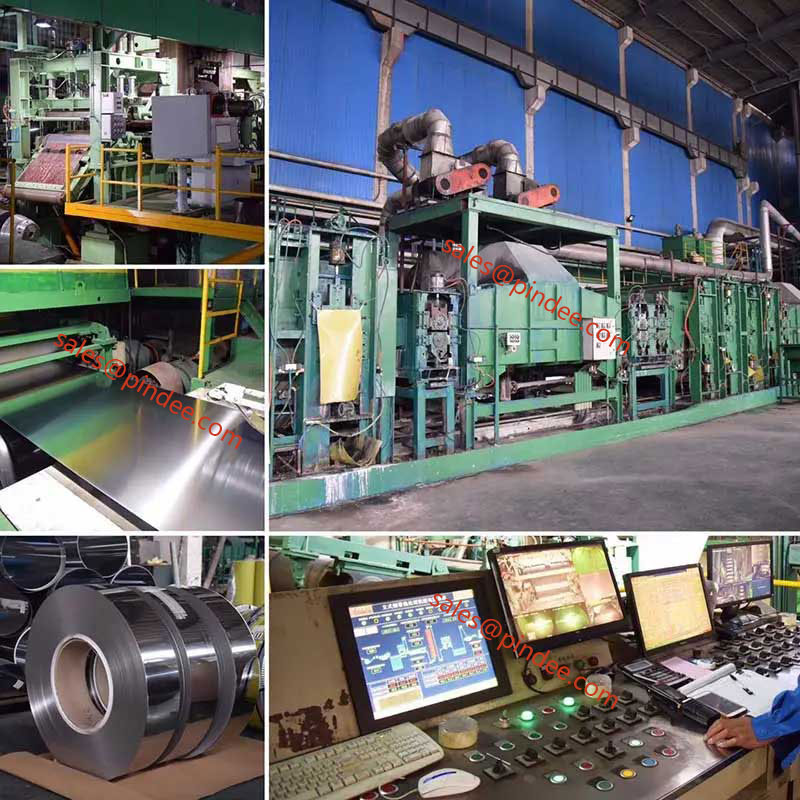

Stainless Steel Coil/Sheet Production Line

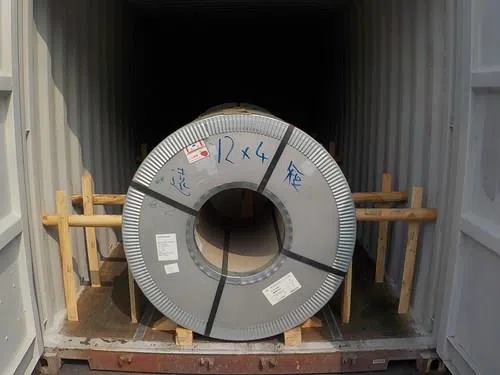

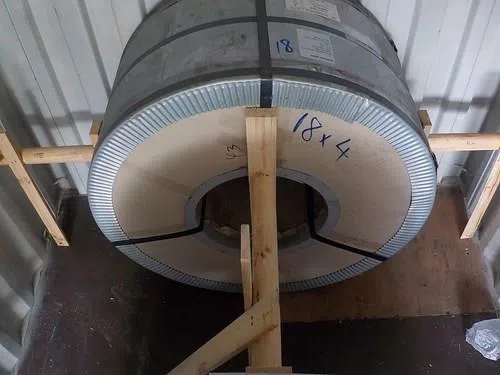

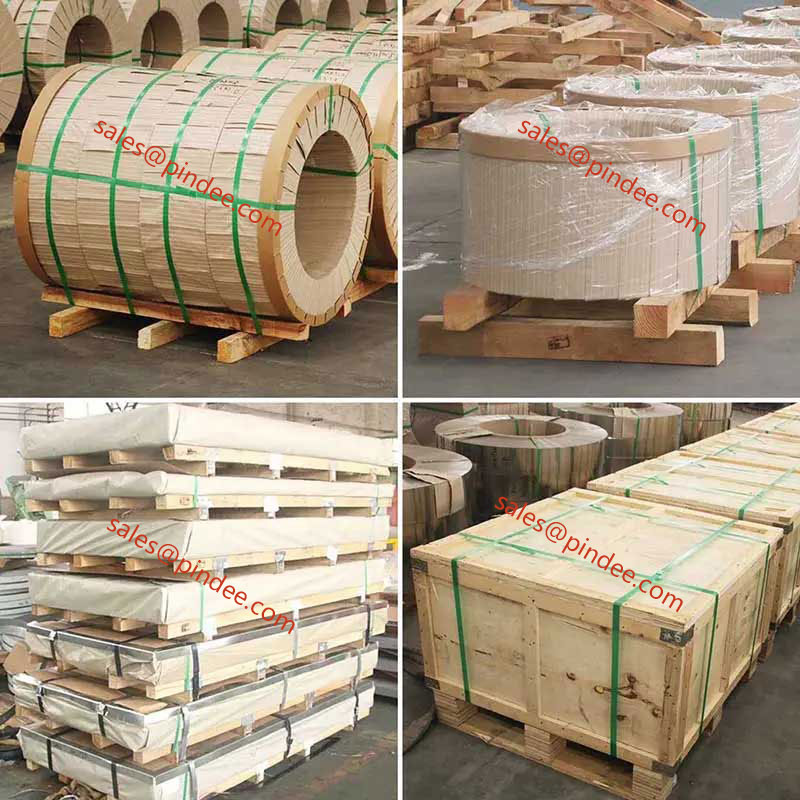

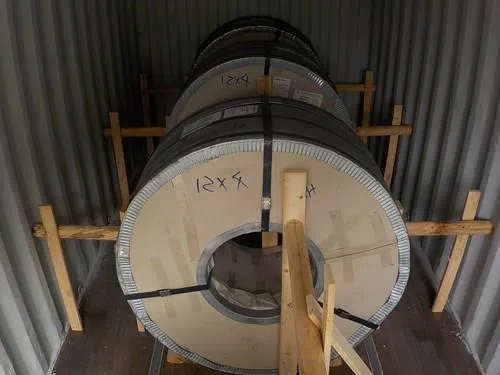

Stainless Steel Coil/Sheet Product Packaging
Applications of stainless steel coil
Beer kegs, bellows, chemical equipment, coal hopper linings, cooking equipment, cooling coils, cryogenic vessels, dairy equipment, evaporators, flatware utensils, feedwater tubing, flexible metal hose, food processing equipment, hospital surgical equipment, hypodermic needles, kitchen sinks, marine equipment and fasteners, nuclear vessels, oil well filter screens, refrigeration equipment, paper industry, pots and pans, pressure vessels, sanitary fittings, valves, shipping drums, spinning, still tubes, textile dyeing equipment, tubing.
