Product Description
TECHNICAL SPECIFICATION

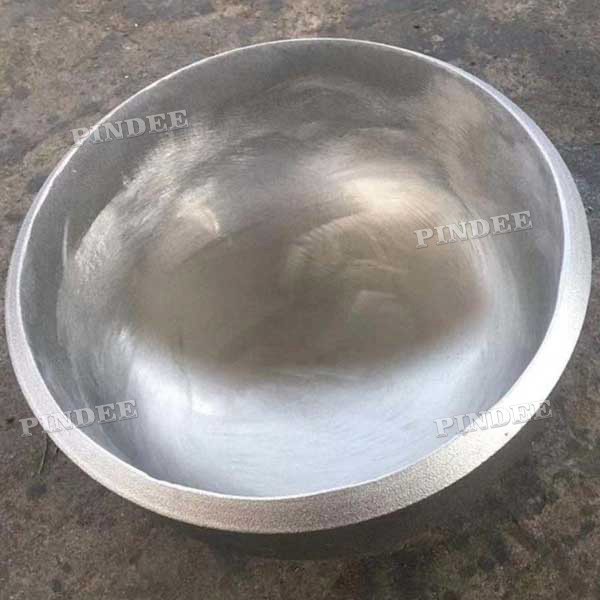

Product name: 316L Stainless Steel Caps For Dairy Pipes
| Type | Forged | ||||||||||
| Size | NPS 1/8"- 48" SCH: 5S,10/10S/,20,30,STD,40/40S,60,80/80S,XS,100,120,140,160,XXS OD: 0.04"- 72" (1.0mm-1828.80mm) WT: 0.004"- 2" (0.1mm-50.8mm) | ||||||||||
| Specification | Long Type,Short Type as per ASTM A403,ASME B16.9 | ||||||||||
| End | Plain end,Beveled end,Threaded end. | ||||||||||
| Surface /Finish | Pickled,Mechanically Polished,Bright Annealed,Electro Polished | ||||||||||
| Test: | PMI Test Elongation in 50mm Longitudinal Heat Treatment 1050℃ for 5Min. (W.Q) IGC as per ASTM A-262 Practice.E NACE STD: NACE MR0175-MR0103 ED - 2015 Flaring Testing is ACC. TO ASTM A1016 Flattening Testing is ACC. TO ASTM A1016 DPT on pipe ends Eddy Current Test Ultrasonic Test Radiography Test (X-ray) Hydrostatic Test | ||||||||||
| Packing | Wooden boxes. | ||||||||||
| Application | Oil & Gas transportation,LNG,petrochemical,nuclear power,shipbuilding,pulp and paper,sewage treatment,construction,medicine,foodstuffs,decoration and others. | ||||||||||
| Delivery time | 20-60 days after receiving the deposit or 1-10 days if goods in stock. | ||||||||||
| Trade term | EXW,FOB,CIF or as negotiation. | ||||||||||
| Payment term | T/T(30% in advance,70% against packing pictures) or as negotiation. | ||||||||||
| Quality requirement | Mill Test Certificated will be provided with shipment,Third Party Inspection is acceptable. | ||||||||||
| Main Market | Europe,Southeast Asia,South Africa,Middle East etc. | ||||||||||
Work Shop
Stainless steel cap divided by pressure level: There are about seventeen types, which are the same as the American pipe standards, including: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, SCH100, Sch120 , Sch140, Sch160, XXS; the most commonly used are STD and XS.

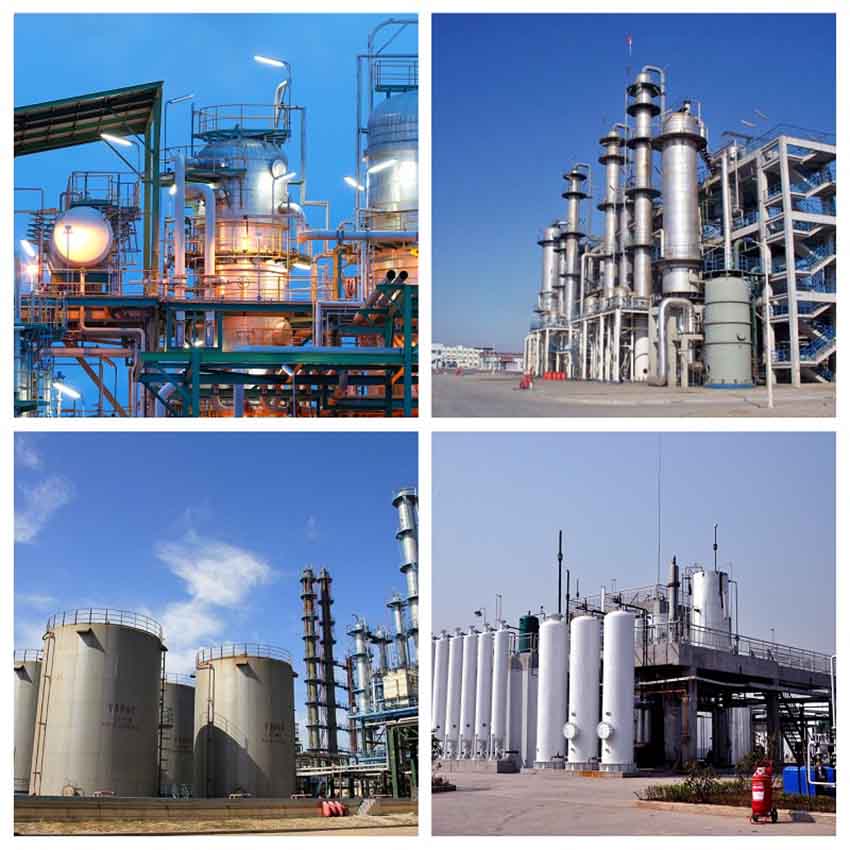

Application:
Stainless steel heads are generally used in water, beverage, beer, food, petrochemical, nuclear power, machinery, medical equipment, fertilizers, shipbuilding, waterproofing, pipelines and other industries.
