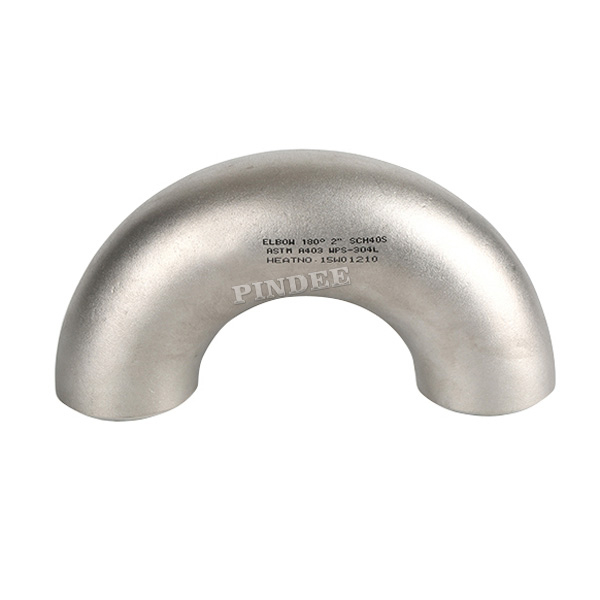

Butt Weld 180 Deg Long Radius Elbow

Material：Stainless steel ASTM A403 WP304,304L,316,316L,321 etc
Type:Long Radius & Short Radius Elbow 180°, Elbow 90°, Elbow 45°, Tee, Reduced Tee, Cross, Cap, Concentric Reducer, Eccentric Reducer, Stub end
Size:1/2"-72"（DN15-DN1800）
Standard:ASME B16.9,ASME B16.25,MSS SP-75、DIN2617、JISB2311、JISB2312、JISB2313
Wall thickness:Sch10-Sch160、XXS、XS、STD
Connection:Welding, threaded, socket welded
Packaging: Wooden Cases or wooden pallet or as per customers requirement
Applications range: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Availability:

Quantity:



Inquire

Product Description

Product Description

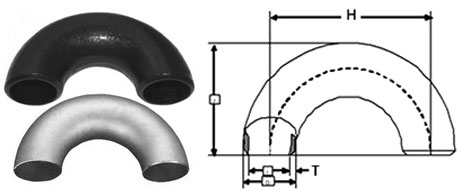

Nom. Pipe Size	Pipe Sched. or No.	Center- to-Center Dimen.	Back- to- Face	Outside Dia.	Inside Dia.	Wall Thick.	Approx. Weight (lb.)
		H	J	OD	ID	T
STANDARD WEIGHT
1/2	40	3	1 7/8	0.840	0.622	0.109	0.3
3/4	40	2 1/2	1 11/16	1.050	0.824	0.113	0.3
1	40	3	2 3/16	1.315	1.049	0.133	0.7
1 1/4	40	3 3/4	2 3/4	1.660	1.380	0.140	1
1 1/2	40	4 1/2	3 1/4	1.900	1.610	0.145	1.5
2	40	6	4 3/16	2.375	2.067	0.154	3
2 1/2	40	7 1/2	5 3/16	2.875	2.469	0.203	6
3	40	9	6 1/4	3.500	3.068	0.216	9
3 1/2	40	10 1/2	7 1/4	4.000	3.548	0.226	12
4	40	12	8 1/4	4.500	4.026	0.237	17
5	40	15	10 5/16	5.563	5.047	0.258	28
6	40	18	12 5/16	6.625	6.065	0.280	46
8	40	24	16 5/16	8.625	7.981	0.322	90
10	40	30	20 3/8	10.750	10.020	0.365	156
12	–	36	24 3/8	12.750	12.000	0.375	236
14	30	42	28	14.000	13.250	0.375	294
16	30	48	32	16.000	15.250	0.375	404
18	–	54	36	18.000	17.250	0.375	512
20	20	60	40	20.000	19.250	0.375	617
24	20	72	48	24.000	23.250	0.375	886
EXTRA STRONG
1/2	80	3	1 7/8	0.840	0.546	0.147	0.5
3/4	80	2 1/2	1 11/16	1.050	0.742	0.154	0.5
1	80	3	2 3/16	1.315	0.957	0.179	1
1 1/4	80	3 3/4	2 3/4	1.660	1.278	0.191	1.5
1 1/2	80	4 1/2	3 1/4	1.900	1.500	0.200	2
2	80	6	4 3/16	2.375	1.939	0.218	4
2 1/2	80	7 1/2	5 3/16	2.875	2.323	0.276	7.5
3	80	9	6 1/4	3.500	2.900	0.300	12
3 1/2	80	10 1/2	7 1/4	4.000	3.364	0.318	17
4	80	12	8 1/4	4.500	3.826	0.337	23
5	80	15	10 5/16	5.563	4.813	0.375	40
6	80	18	12 5/16	6.625	5.761	0.432	67
8	80	24	16 5/16	8.625	7.625	0.500	138
10	60	30	20 3/8	10.750	9.750	0.500	215
12	–	36	24 3/8	12.750	11.750	0.500	300
14	–	42	28	14.000	13.000	0.500	376
16	40	48	32	16.000	15.000	0.500	524
18	–	54	36	18.000	17.000	0.500	676
20	30	60	40	20.000	19.000	0.500	824
24	–	72	48	24.000	20.000	0.500	1183
