Product Description
Products Detailes
Size: 1/2-4"
Working pressure: 1.6-6.4mPa
Temperature range: -20° C ~ 232° C ~ 350° C
Suitable medium: Water, oil, air, some corrosive liquid
Thread type: NPT, BSPT, BSP, DIN259/2999
Ball have T type and L type ISO5211 mounting pad
Materials

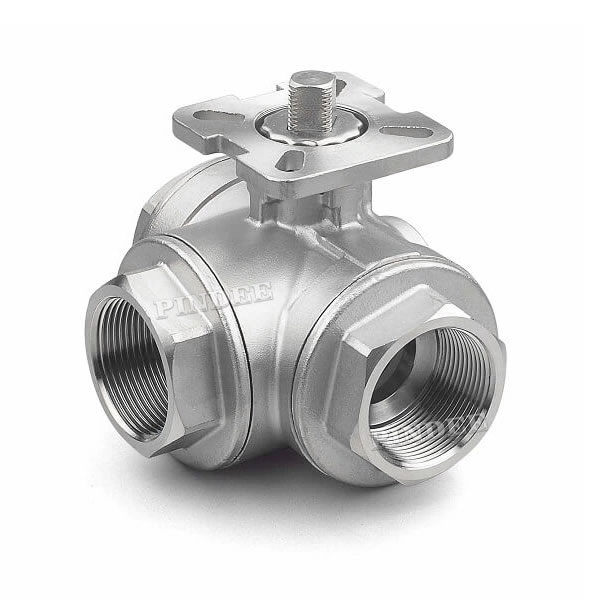

Product name | 3Way Stainless Steel Ball Valve with Mounting Pad |
Material | SS304, 304L, 316, 316L |
Size | 1/4”-4”&DN6-DN100 |
Certificate | ISO9001: 2000,CE |
Working pressure | 1000psi(6.4MPa) |
Connection Ends | Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW). |
Suitable medium | Water, gas, air and some corrosive liquid |
Temperature Range | -20-300 degree C |
Investment | casting body and cap |
Sealing | PTFE, RPTFE, PPL |
stem | SS304,SS316 Adjustable stem packing, |
Locking | option |
Our advantage | Survival by quality and development by credibility. |
100% leakage tested at 100 psi air under water | |
Blow-out proof stem, ball are made of ss316 or customer request | |
Pure Teflon seals and seats | |
Can do OEM products | |
Delivery time | usually 30 days around and can negotiate as per order qty |
Term of Payment | 30% TT deposit, the balance against copy of B/L |
Package detail | Inner CTN, outside plywood case |
Guarantee Period | 18 monthes |
Capacity to produce | 100,000 PCS/week |
