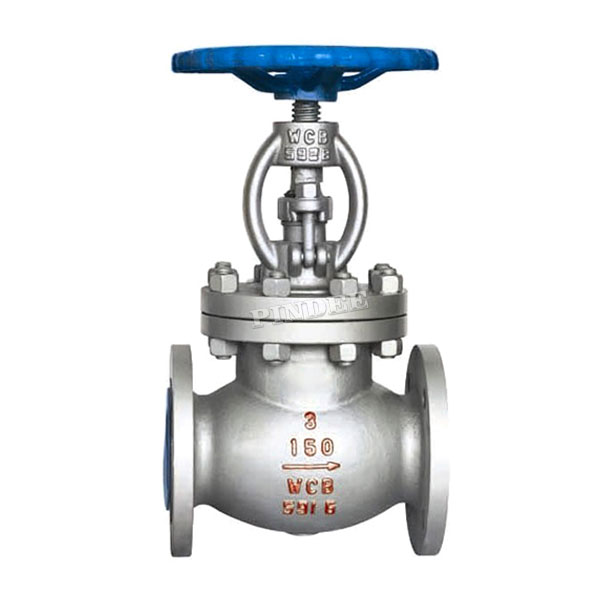

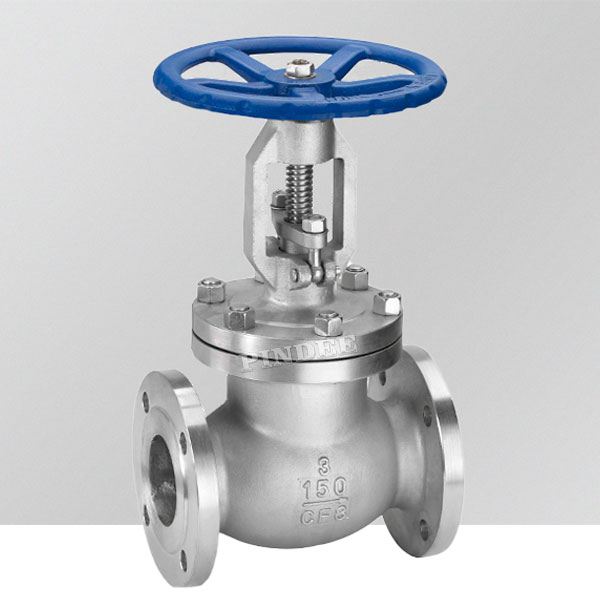

ANSI API Cast Steel And Stainless Steel Globe Valve

Type of products: J41H-150LB
Nominal DN: 50-600(mm)
PN: 150LB-1500LB
Suitable temperature: -20℃-350℃
Suitable medium: air,liquid
Material of body: Cast steel,stainless steel
Connecting function: flange

Availability:

Quantity:



Inquire

Product Description

Product Description

Standards&Features:

1.Simple structures.Easier to be manufactured and repaired.
2.Small working stroke,short opening and closing time.
3.Good sealing performance,small friction between sealing face and life long.
4.The friction between sealing face is smaller than gate valve during the process of opening and closing.And it’s wear-resistant.
5.It usually have only one sealing face,good manufacturing process and easy to be repaired.
6.The structure style of globe valve's body can be divided into straight-through, three-and right-angle type.

ANSI Globe Valve Spare parts Material：
Body	ASTM A216WCB								ASTMA351 CF8
Disc	WCB			CF8		CF8M		Monel	ASTMA351 CF8
Stem	F6a			F304		F316		Monel	F304
Disc Sealing face	13Cr	13Cr	STL	304	STL	316	STL	Monel	304	304	STL
Seat Sealing face	13Cr	STL	STL	304	STL	316	STL	monel	304	STL	STL
Body	ASTM A351 CF3					ADTM A351 CF8M			ASTM A351 CF8
Disc	ASTM A351 CF3					ADTM A351 CF8M			ASTM A351 CF8
Stem	F304L					F316			F316L
Disc Sealing face	304L			304L	STL	316	316	STL	316L	316L	STL
Seat Sealing face	304L			STL	STL	316	STL	STL	316L	STL	STL

Nominal Pressure	Sheell Test		Water Seal Test		Gas Seal Test
Nominal Pressure	MPa	Lbf/in2	MPa	Lbf/in2	MPa	Lbf/in2
150	3.1	450	2.2	315	0.5~0.7	60～100
300	7.8	1125	5.6	815
600	15.3	2225	11.2	1630
900	23.1	3350	16.8	2440
1500	38.4	5575	28.1	4080
2500	64.6	9367	47.4	6873

Technical Parameters

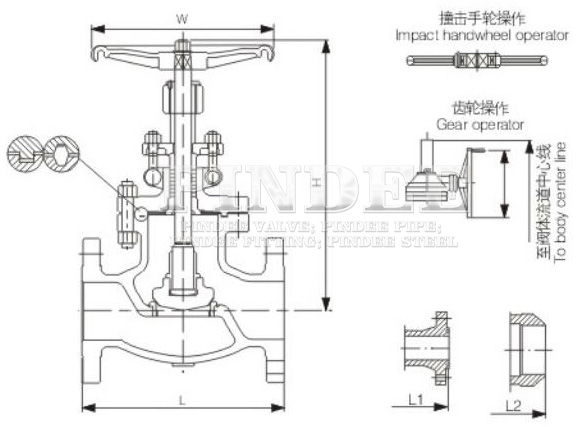

ANSI-API-Cast-Steel-And-Stainless-Steel-Globe-Valve-drawing

Type	NPS	DN	Class 150LB
Type	in	mm	L	D	D1	D2	b	Z-Ф	H	Do	WT/(kg)
J41H-150Lb J41W-150LbP J41Y-150LbP J41Y-150LbR J41Y-150LbPL J41Y-150LbPL ;	1/2"	15	108	89	60.5	35	10	4-Ф15	169	125	5.0
	3/4"	20	117	98	70	43	11	4-Ф15	180	125	7.0
	1"	25	127	108	79.5	51	12	4-Ф15	190	125	9.0
	11/4"	32	140	117	89	63	13	4-Ф15		160
	11/2"	40	165	127	98.5	73	14.3	4-Ф16	347	180	15.0
	2"	50	203	152	120.5	92	15.9	4-Ф19	356	180	18
	21/2"	65	216	178	139.5	105	17.5	4-Ф19	381	240	30
	3"	75	241	190	152.5	127	19.1	4-Ф19	411	280	41
	4"	100	292	229	190.5	157	24	4-Ф19	454	280	64
	5"	125	356	254	216	186	24	8-Ф22	541	320	86
	6"	150	406	279	241.5	216	25.4	8-Ф22	656	360	113
	8"	200	495	343	298.5	270	29	8-Ф22	800	450	115
	10"	250	622	406	362	324	31	12-Ф25	1231	500	295
	12"	300	698	483	432	381	32	12-Ф25	1450	600	450
J41H-300Lb J41W-300LbP J41Y-300LbP J41Y-300LbR J41Y-300LbPL J41Y-300LbPL	1/2"	15	152	95	66.5	35	15	4-Ф15	241	125	5.2
	3/4"	20	178	117	82.5	43	16	4-Ф19	241	125	7.3
	1"	25	203	124	89	51	18	4-Ф19	283	160	9.5
	11/4"	32	216	133	98.5	63	19	4-Ф19	320	200
	11/2"	40	229	156	114.3	73	21	4-Ф22	322	200	17.6
	2"	50	267	165	127	92	23	8-Ф19	399	200	25
	21/2"	65	292	190	149	105	26	8-Ф22	438	250	30
	3"	75	318	210	168.5	127	29	8-Ф22	464	280	35
	4"	100	356	254	200	157	32	8-Ф22	565	355	56
	5"	125	400	279	235	186	35	8-Ф22	614	400	96
	6"	150	444	318	270	216	37	12-Ф22	717	450	120
	8"	200	559	381	330	270	42	12-Ф25	930	500	212
	10"	250	622	444	387.5	324	48	16-Ф29	1012	500	460
	12"	300	711	521	451	381	51	16-Ф32	1231	600	615

Pindee Globe Valve Manufacture

API-Carbon-Steel-Globe-Valve5 API-Carbon-Steel-Globe-Valve6

Application:

1.Petroleum;
2.Chemical industry;
3.Metallurgy;
4.Power;
5.Paper-making;
6.Pharmacy;
7.Food;
8.Water-treatment.
