Product Description
1.Manual flanged gate valve usd Metal seal, long service life
2.Manual type Flanged gate valve Widely used in petroleum, chemical, thermal power plants, etc.
3.Manual Flanged gate valve has a compact structure, Flow resistance coefficient is small.
Port size | 2"-24" |
Nominal pressure | 1.6MPa-16MPa |
Working temperate | -40℃~550℃ |
Operation | Manual, Pneumatic, Electric, gear drive |
Connection Type | Flanged |
Valve body | S.S, Cast steel, Gray cast iron |
| Valve bonnet | S.S, Cast steel, Gray cast iron |
| Disc | SS, Cast steel, |
| Stem | S.S |
| Sealing | Metal sealed |
| packing | PTFE |
media | water,steam,oil,acid |

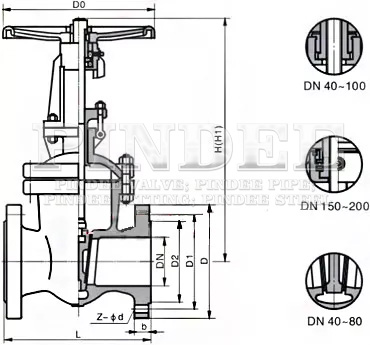

| DN | L | D | D1 | D2 | b | f | ZΦD | H | D0 | Weight(kg) |
| 15 | 130 | 95 | 65 | 45 | 14 | 2 | 4Φ14 | 175 | 200 | 4 |
| 20 | 150 | 105 | 75 | 55 | 14 | 2 | 4Φ14 | 180 | 200 | 5 |
| 25 | 160 | 115 | 85 | 65 | 14 | 2 | 4Φ14 | 210 | 200 | 6 |
| 32 | 180 | 135 | 100 | 78 | 16 | 2 | 4Φ18 | 210 | 200 | 7 |
| 40 | 200 | 145 | 110 | 85 | 16 | 3 | 4Φ18 | 350 | 200 | 19 |
| 50 | 250 | 160 | 125 | 100 | 16 | 3 | 4Φ18 | 358 | 240 | 29 |
| 65 | 265 | 180 | 145 | 120 | 18 | 3 | 4Φ18 | 375 | 240 | 33 |
| 80 | 280 | 195 | 160 | 135 | 20 | 3 | 8Φ18 | 433 | 280 | 45 |
| 100 | 300 | 215 | 180 | 155 | 20 | 3 | 8Φ18 | 502 | 320 | 63 |
| 125 | 325 | 245 | 210 | 185 | 22 | 3 | 8Φ18 | 612 | 360 | 108 |
| 150 | 350 | 280 | 240 | 210 | 24 | 3 | 8Φ23 | 676 | 360 | 134 |
| 200 | 400 | 335 | 265 | 265 | 26 | 3 | 12Φ23 | 820 | 400 | 192 |
Technical Parameters
No. | Part Name | Carbon Steel | Alloy Steel | Stainless Steel |
1 | Body | ASTM A216 WCB | ASTM A217-WC9 | ASTM A351 CF8M |
2 | Disc | ASTM A182 F6a | ASTM A182-F22/STL.OVERLAY | ASTM A182 F316 |
3 | Disc Sleeve | ASTM A182 F6a | ASTM A182-F22/STL.OVERLAY | ASTM A182 F316 |
4 | Stem | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F316 |
5 | Bellow Seal | ASTM A276 304 | ASTM A276 304 | ASTM A276 316 |
6 | Bonnet Gasket | Soft Iron | Soft Steel | ASTM A276 316 |
7 | Bonnet | ASTM A216 WCB | ASTM A217-WC9 | ASTM A351 CF8M |
8 | Bolt | ASTM A193 B7 | ASTM A193 B16 | ASTM A193 B8 |
9 | Nut | ASTM A194 2H | ASTM A194 4 | ASTM A194 8 |
10 | Packing | SS316+Graphile | SS316+Graphile | SS316+Graphile |

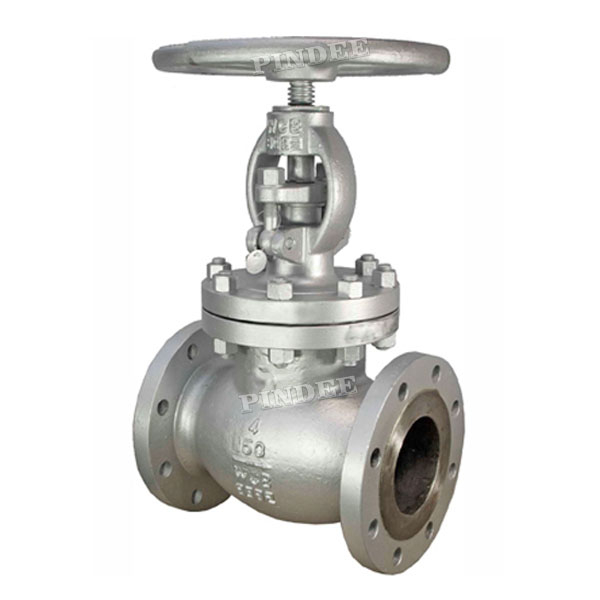

The illustration of design features of cast steel globe valve
Design/Inspection standards: API 6D, API 600, ASME B16.34, BS EN13709, BS 1873, ASME B16.10, ASME B16.5.
(1) Handwheel operated with OS&Y and rising stem.
(2) Gland eyebolts are applied to facilitate packing maintenance and easy dismantling.
(3) Body/Bonnet joint design: male and female matching joint for 150LB~600LB; metallic ring gasket seal for 900LB and above.
(4) T-shaped anti blow-out stem design.
(5) Plug-shaped disc and seating face design allows particular flow characteristic.
(6) Seating surface shall be hardened by stellite 6 overlay.

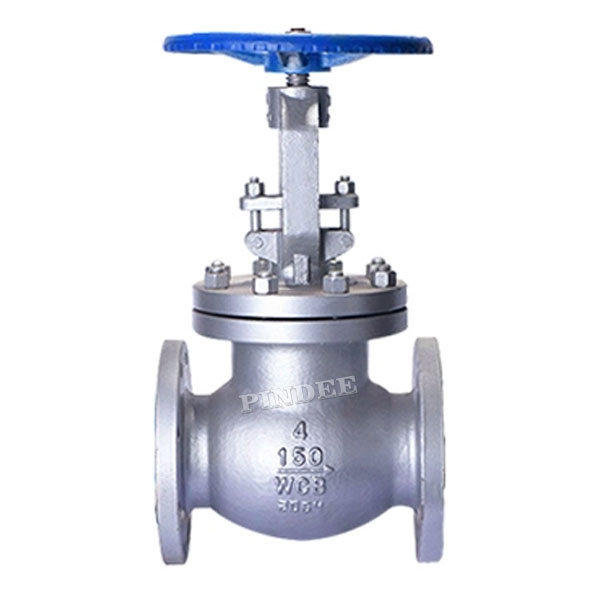

Pindee Globe Valve Manufacture
Application:
1.Chemical industry;
2.Metallurgy;
3.Power;
4.Paper-making;
5.Pharmacy;
6.Food;
7.Water-treatment.
