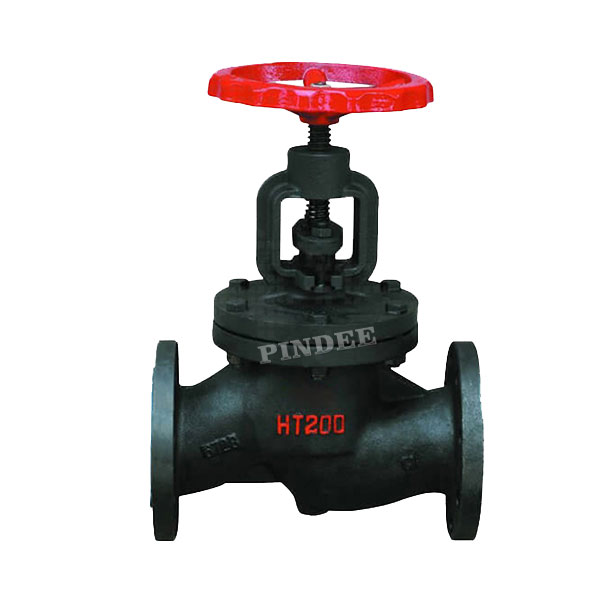

Product Description
1.Simple structures.Easier to be manufactured and repaired.
2.Small working stroke,short opening and closing time.
3.Good sealing performance,small friction between sealing face and life long.
4.The friction between sealing face is smaller than gate valve during the process of opening and closing.And it's wear-resistant.
5.It usually have only one sealing face,good manufacturing process and easy to be repaired.
6.The structure style of globe valve’s body can be divided into straight-through, three-and right-angle type.
Standards&Features:
Parts;name | Material | |||
J41T-16 | J41W-16 | J41H-16 | J41F-16 | |
Disc | Grey ;iron+Brass | Grey ;iron | Grey ;iron+Stainless ;steel | Grey ;iron+PTFE |
Valve ;body、Bonnet | Grey ;iron | Grey ;iron | Grey ;iron | Grey ;iron |
Stem | Carton ;steel,Stainless ;steel | Carton ;steel,Stainless ;steel | Carton ;steel,Stainless ;steel | Carton ;steel,Stainless ;steel |
Yoke ;nut | Brass ;(Grey ;iron) | Brass ;(Grey ;iron) | Brass ;(Grey ;iron) | Brass ;(Grey ;iron) |
Hand ;wheel | Grey ;iron | Grey ;iron | Grey ;iron | Grey ;iron |
| Type | Nominal pressure;(MPa) | Testing pressure | Suitable temperature;(℃) | Suitable medium | |
| Strength(Water) (MPa) | Enclose(Water) (MPa) | ||||
| J41T-16 J11T-16 | 1.6 | 2.4 | 1.8 | ≤200 | Vapour,water |
| J41W-16 J11W-16 | ≤100 | Oil | |||
| J41H-16 J11H-16 | ≤200 | Water,vapour,oil | |||
| J41F-16 J11F-16 | ≤150 | Water,vapour,oil | |||
| J11X-16 | ≤80 | Water | |||

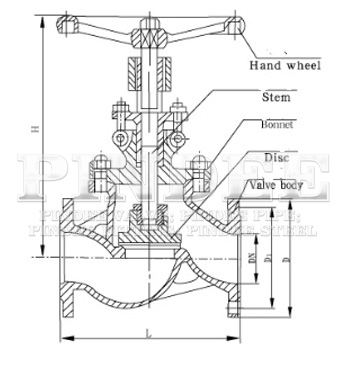

Technical Parameters
| Type | DN(mm) | Measurement(mm) | |||||||
| L | D | D1 | D2 | b-f | z-Φd | H | Do | ||
| J41T/W/H/F-16 | 15 | 130 | 95 | 65 | 45 | 14﹣2 | 4﹣Φ14 | (113)200 | 80 |
| 20 | 150 | 105 | 75 | 55 | 16﹣2 | 4﹣Φ14 | (113)200 | 80 | |
| 25 | 160 | 115 | 85 | 65 | 16﹣2 | 4﹣Φ14 | (125)220 | 80 | |
| 32 | 180 | 135 | 100 | 78 | 18﹣2 | 4﹣Φ18 | (145)245 | 100 | |
| 40 | 200 | 145 | 110 | 85 | 18﹣3 | 4﹣Φ18 | (180)260 | 130 | |
| 50 | 230 | 160 | 125 | 100 | 20﹣3 | 4﹣Φ18 | (200)285 | 130 | |
| 65 | 290 | 180 | 145 | 120 | 20﹣3 | 4﹣Φ18 | (205)300 | 150 | |
| 80 | 310 | 195 | 160 | 135 | 22﹣3 | 8﹣Φ18 | 330 | 240 | |
| 100 | 350 | 215 | 180 | 155 | 24﹣3 | 8﹣Φ18 | 350 | 240 | |
| 125 | 400 | 245 | 210 | 185 | 26﹣3 | 8﹣Φ18 | 405 | 300 | |
| 150 | 480 | 280 | 240 | 210 | 28﹣3 | 8﹣Φ23 | 450 | 300 | |
| 200 | 600 | 335 | 295 | 265 | 30﹣3 | 12﹣Φ23 | 520 | 380 | |
| 250 | 650 | 405 | 355 | 320 | 32﹣3 | 12﹣Φ25 | 710 | 420 | |
Pindee Globe Valve Manufacture
Application:
1.Chemical industry;
2.Metallurgy;
3.Power;
4.Paper-making;
5.Pharmacy;
6.Food;
7.Water-treatment.
