Product Description
Description & Features

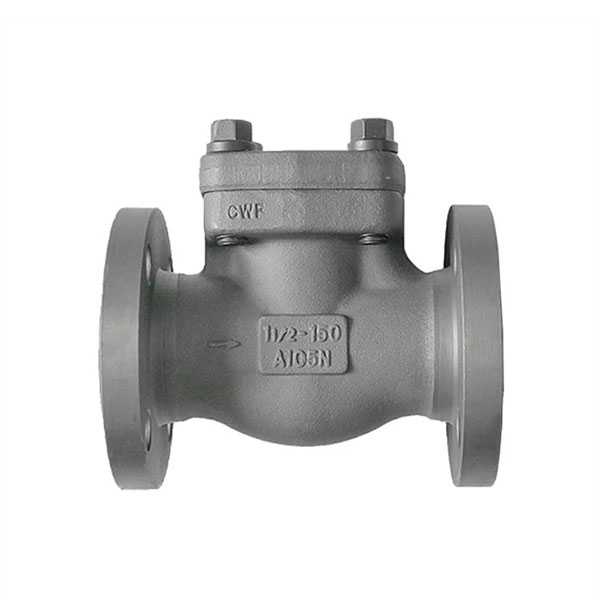

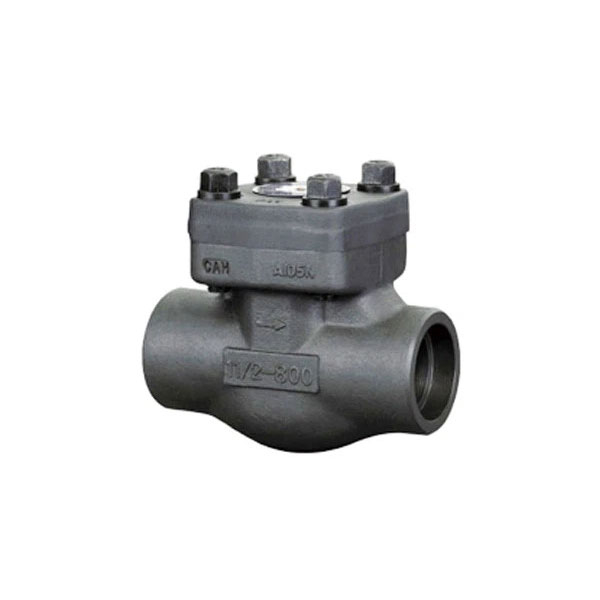

Forged Steel Check Valve usually works automatically. Under the action of the fluid pressure flowing in one direction, the valve flap opens; when the fluid flows in the opposite direction, the fluid pressure and the self-coincidence of the valve flap act on the valve seat, thereby cutting off the flow. t has the characteristics of reasonable structure, reliable sealing, and long life. Forged Steel Check Valve is widely used in purification equipment, petroleum, chemical and other production operations.
● Forged Steel Check Valve is small in size and light in weight.
● When it is fully open, the fluid pressure is almost unimpeded, so the pressure drop through the valve is relatively small.
● It can automatically open and close the valve to prevent fluid backflow.
● This valve is widely used in urban construction, chemical industry, metallurgy, petroleum, pharmaceutical, food, beverage, environmental protection and other fields
Specifications
Size Range | Body Material |
1/4"-2" DN15-DN50 | A105, LF2, F11, F304 (L), F316 (L), F51 |
Pressure Rating | Disc Material |
Class150-Class2500 PN16-PN200 | A105, LF2, F11, F304 (L), F316 (L), F51 |
End Connection | Seat Material |
Flange (FF, RF, RTJ), Butt Welding | 410, 410HF, 304 (L), 316 (L), F51 |
Structure Style | Stem Material |
Full Port, Bolted Bonnet / Pressure Seal Bonnet | / |
Actuator Options | Design Standard |
/ | BS 5352, MSS SP-118 |
Temperature Range | Face to Face Standard |
-196℃~650℃ | ASME B16.10, GB/T 12221, GB/T 15188.1 |
Connection Standard | Test Standard |
Flange Drilling: ASME B16.5, JB/T 79 Butt Weld: ASME B16.25, GB/T 12224 | API 598, JB/T 9092, GB/T 13927 |
Brand | PINDEE or OEM |
Test | 100% quantity tested before delivery |
Guarantee | 12 months from date of shipment or Negotiable |
MOQ | 1 Set |
Sample | Available |
Color | Customer required or manufacturer default |
Packing | Plastic bag wrapped inside, seaworthy wooden case outside |
Certificate | API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate |
Country of Origin | Zhejiang, China |
HS Code | 848180 (universal), 8481804090 (China) |
Port | Shanghai or Ningbo |
Payment Terms | T/T, L/C, Western Union |
