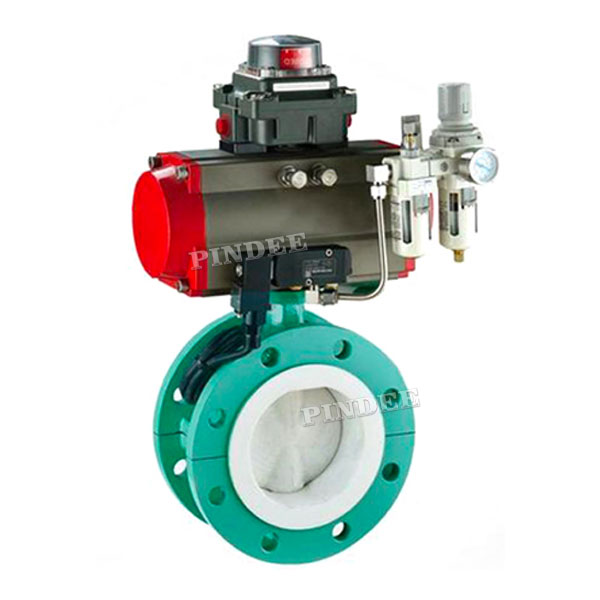

Pneumatic Flanged Butterfly Valve manufacture by PINDEE VALVE,which is one of the hot selling valve,this kind of Pneumatic Flanged Butterfly Valve introduction below:
Design and Manufacture Conform to EN 593, API609, JIS
Flange dimensions Conform to EN 1092-2 PN10, PN16, JIS5K, JIS10K,ANSI B16.1,DIN2501,BS4504
Face to Face dimensions Conform to EN558 series
Top Flange dimensions Conform to ISO5211
Testing Conform to API598、EN12266-1
Pneumatic Stainless Steel butterfly valve features:
Protection of gearbox IP 68-8 (submersion up to 8 m of water) and actuator IP 68 (submersion up to 8 m of water, during 96 hours and 10operations)
With position indicator.
Clockwise Close (CC).
For installation above ground and in non-flooded chambers.
Designed and tested to an endurance level of 2500 cycles minimum, inaccordance with EN 1074-1 and 2.
Technical Parameter:

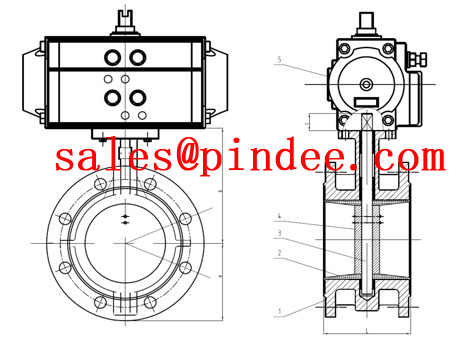

DN | NPS（inch） | A | B | C | L |
DN50 | 2" | 69.5 | 126.5 | 32 | 108 |
DN65 | 2.5" | 72 | 136 | 32 | 112 |
DN80 | 3" | 88 | 146 | 32 | 114 |
DN100 | 4" | 96.5 | 158 | 32 | 127 |
DN125 | 5" | 115 | 179 | 32 | 140 |
DN150 | 6" | 126 | 197 | 32 | 140 |
DN200 | 8" | 161 | 230 | 45 | 152 |
DN250 | 10" | 199 | 271 | 45 | 165 |
DN300 | 12" | 215 | 305 | 45 | 178 |
DN350 | 14" | 261 | 350 | 45 | 190 |
DN400 | 16" | 290 | 381 | 51 | 216 |
DN450 | 18" | 307 | 392 | 51 | 222 |
DN500 | 20" | 340 | 441 | 57 | 229 |
DN600 | 24" | 396 | 500 | 70 | 267 |
DN700 | 28" | 496 | 567 | 66 | 292 |
DN800 | 32" | 543 | 641 | 66 | 318 |
DN900 | 36" | 584 | 692 | 118 | 330 |
DN1000 | 40" | 638 | 735 | 142 | 410 |
DN1200 | 44" | 763 | 917 | 150 | 470 |
Main Material
Body | Cast Iron / Cast Steel / Aluminium Diecast / SS304 (CF8) / SS316 (CF8M) |
Disc | Cast Steel / Ductile Iron / SS304 (CF8) / SS316 (CF8M) |
Seat | Nitrile / EPDM / Neoprene / PTFE |
Seat Leakage | Tight Shut Off |
Temperature | -20°C to 200°C |
Pressure Rating | PN 10 / PN 16 ( PN 20 ON REQUEST) |
End Connection | Wafer Type Suitable to 150#, Table ‘D’ & ‘E’ Flanges |
Pindee Valve Manufacture
Pindee valve inspection:
Pindee valve packing
Application:
Pneumatic Stainless Steel butterfly valve Application:
potable water supply pipelines and treatment plants.
transportation of filtered and recycled water.
irrigation distribution networks.
water-pumping stations and hydroelectric plants.
nuclear industry, fire safety and storage facilities.
