Product Description

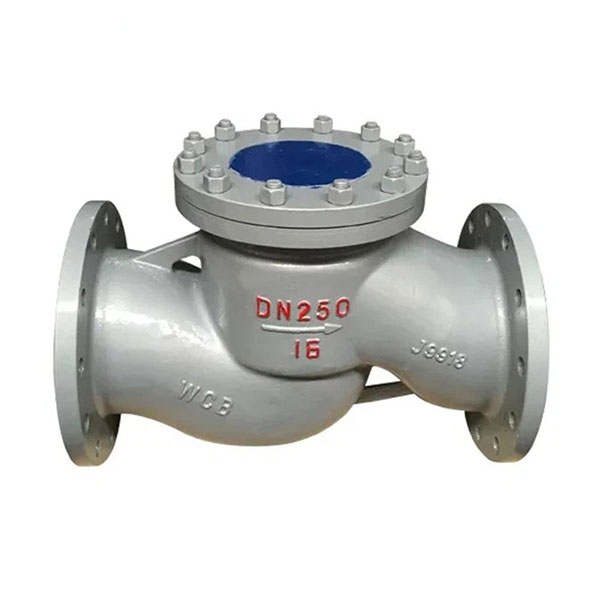

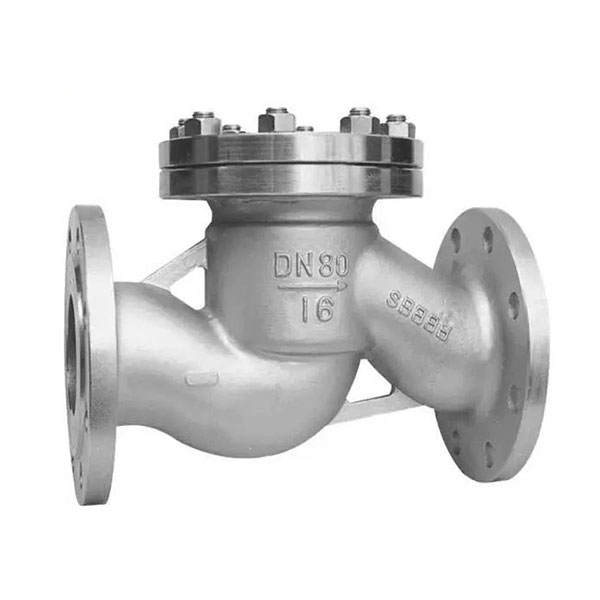

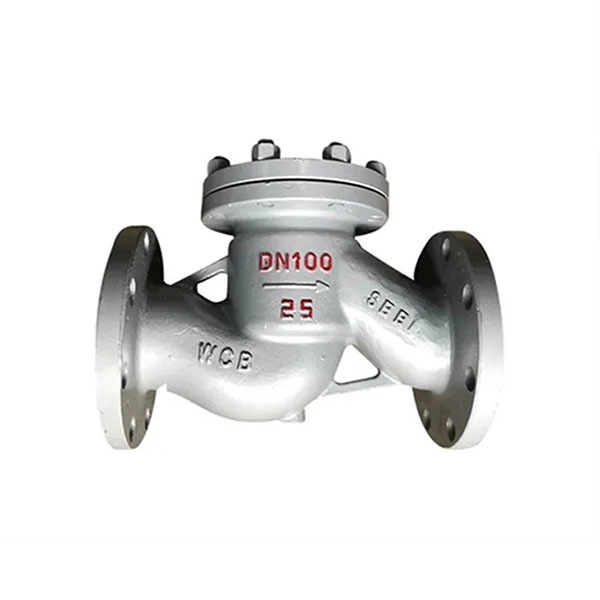

The Flanged Lift Check Valve is a crucial component in industrial machinery and infrastructure. It is designed to prevent backflow in piping systems, ensuring the smooth and uninterrupted flow of fluids and gases.
This valve is made of high-quality materials and is precisely engineered to withstand high levels of pressure and temperature. It is known for its reliability and durability, making it an ideal choice for a variety of industrial applications.
The Flanged Lift Check Valve is easy to operate and maintain, allowing for seamless integration into existing piping systems. It requires no manual intervention to function properly, and its self-acting design ensures that it operates efficiently and effectively.
Furthermore, the valve's flanged construction allows for easy installation and removal, minimizing downtime and reducing overall cost. Its compact size and lightweight design make it a practical option for various industries.
Overall, the Flanged Lift Check Valve is a valuable asset to any industrial setting. Its advanced technology and high-quality construction make it a reliable and efficient solution for backflow prevention. We recommend it without hesitation to anyone seeking a dependable check valve for their business needs.
The Flanged Lift Check Valve we produce are exquisite in workmanship and have undergone strict quality inspection. Please rest assured!
Flange Standard Options | ANSI, JIS, DIN, GB |
Connection | Flanged end |
Material | Stainless Steel, WCB |
Pressure | PN1.6～6.4MPa |
Medium Temperature | -29 to 300℃ |
Mediums | Water, oil, air, gas, and other mediums |

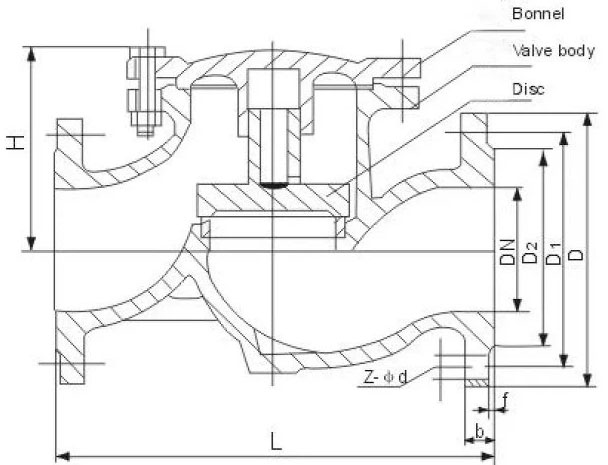

Size | L | D | D1 | D2 | b | Z-φd |
DN50 | 230 | 160 | 125 | 100 | 16 | 4-φ18 |
DN65 | 290 | 180 | 145 | 120 | 18 | 4-φ18 |
DN80 | 310 | 195 | 160 | 135 | 20 | 8-φ18 |
DN100 | 350 | 215 | 180 | 155 | 20 | 8-φ18 |
DN125 | 400 | 245 | 210 | 185 | 22 | 8-φ18 |
DN150 | 480 | 280 | 240 | 210 | 24 | 8-φ23 |
DN200 | 600 | 335 | 295 | 265 | 26 | 12-φ23 |
DN250 | 730 | 405 | 355 | 320 | 30 | 12-φ25 |
DN300 | 850 | 460 | 410 | 375 | 34 | 12-φ25 |
Size | L | D | D1 | D2 | b | Z-φd |
DN50 | 230 | 160 | 125 | 100 | 20 | 4-φ18 |
DN65 | 290 | 180 | 145 | 120 | 22 | 8-φ18 |
DN80 | 310 | 195 | 160 | 135 | 22 | 8-φ18 |
DN100 | 350 | 230 | 190 | 160 | 24 | 8-φ23 |
DN125 | 400 | 270 | 220 | 180 | 28 | 8-φ25 |
DN150 | 480 | 300 | 250 | 218 | 30 | 8-φ25 |
DN200 | 600 | 360 | 310 | 278 | 34 | 12-φ25 |
DN250 | 730 | 425 | 370 | 332 | 36 | 12-φ30 |
DN300 | 850 | 485 | 430 | 390 | 40 | 16-φ30 |
