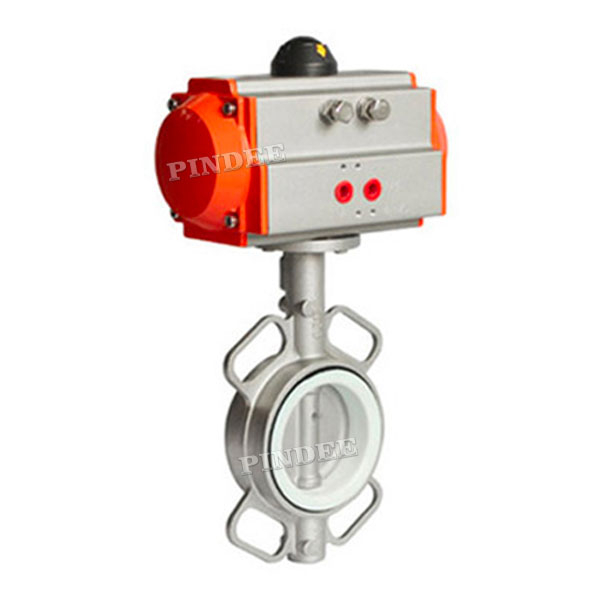

Pneumatic Wafer Butterfly Valve manufacture by PINDEE VALVE,which this kind of Pneumatic Wafer Butterfly Valve is one of the hot selling product,if you have any inquiry pls send to sales@pindee.com
Pneumatic Stainless Steel butterfly valve Standard:
Design and Manufacture Conform to EN 593, API609, JIS
Flange dimensions Conform to EN 1092-2 PN10, PN16, JIS5K, JIS10K,ANSI B16.1,DIN2501,BS4504
Face to Face dimensions Conform to EN558 series
Top Flange dimensions Conform to ISO5211
Testing Conform to API598、EN12266-1
Pneumatic Stainless Steel butterfly valve features:
Protection of gearbox IP 68-8 (submersion up to 8 m of water) and actuator IP 68 (submersion up to 8 m of water, during 96 hours and 10operations)
With position indicator.
Clockwise Close (CC).
For installation above ground and in non-flooded chambers.
Designed and tested to an endurance level of 2500 cycles minimum, inaccordance with EN 1074-1 and 2.
Technical Parameter:

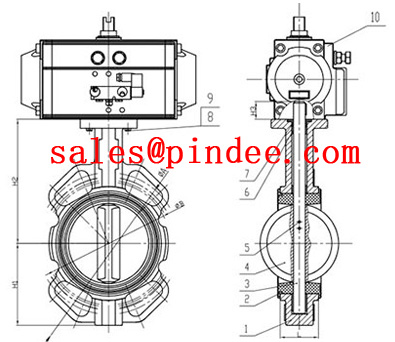

DN | NPS（inch） | H1 | H2 | H3 | ∅A | ∅B | L |
DN50 | 2" | 75 | 129 | 32 | 125 | 105 | 43 |
DN65 | 2.5" | 82 | 136 | 32 | 145 | 127 | 46 |
DN80 | 3" | 99 | 153 | 32 | 160 | 145 | 46 |
DN100 | 4" | 110 | 167 | 32 | 190.5 | 165 | 52 |
DN125 | 5" | 125 | 193 | 32 | 216 | 200 | 56 |
DN150 | 6" | 145 | 209 | 32 | 241.3 | 225 | 56 |
DN200 | 8" | 170 | 251 | 40 | 298.4 | 280 | 60 |
DN250 | 10" | 210 | 280 | 45 | 361.9 | 350 | 68 |
DN300 | 12" | 240 | 315 | 45 | 431.8 | 400 | 78 |
DN350 | 14" | 260 | 348 | 45 | 476.2 | 445 | 78 |
DN400 | 16" | 295.5 | 392.5 | 52 | 540 | 510 | 102 |
DN450 | 18" | 401.5 | 322.5 | 52 | 585 | 565 | 114 |
DN500 | 20" | 451.5 | 362.5 | 64 | 650 | 620 | 127 |
DN600 | 24" | 541.5 | 428.5 | 70 | 770 | 725 | 154 |
Pindee Valve Manufacture
Pindee Valve Inspection:
Pindee Valve Packing
Application:
Pneumatic Stainless Steel butterfly valve Application:
potable water supply pipelines and treatment plants.
transportation of filtered and recycled water.
irrigation distribution networks.
water-pumping stations and hydroelectric plants.
nuclear industry, fire safety and storage facilities.
nuclear industry, fire safety and storage facilities.
